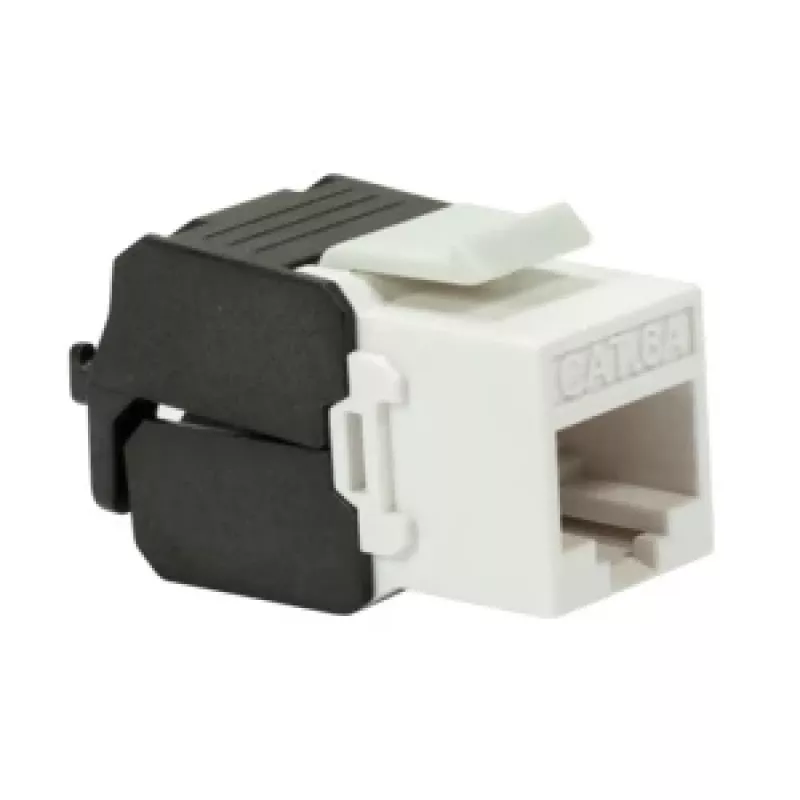

DS-IT CAT6a UTP Keystone Jack tool-free zwart (DS-KC-UTP6A-TL-Z)

Terminating CAT6a cables without special tools can be a hassle, especially when you need a reliable connection for 10 Gigabit Ethernet. The DSIT DS-IT CAT6a UTP Keystone Jack solves this with a toolless design that snaps wires into place, saving time and effort on every install.

Who is it for

Network installers and IT technicians who frequently terminate CAT6a cables in patch panels, wall plates, or surface mount boxes. Also suitable for advanced DIY users building high-speed home networks.

Main features

• CAT6a performance supports 10GBASE-T up to 500 MHz
• Toolless IDC termination – no punch-down tool required
• Unshielded (UTP) design for standard twisted pair cables
• Supports 22-26 AWG solid or stranded conductors
• Gold-plated phosphor bronze contacts for reliable connectivity
• Black ABS plastic housing fits standard keystone openings

Specifications

• Product Type: Keystone Jack
• Ethernet Category: CAT6a
• Shielding Type: UTP (Unshielded Twisted Pair)
• Termination Method: Toolless IDC
• Connector Type: RJ45 Female
• Wiring Standard: TIA/EIA 568A/B
• Max Data Transfer Rate: 10 Gigabit Ethernet
• Max Bandwidth: 500 MHz
• Contact Material: Phosphor Bronze with Gold Plating
• Housing Material: ABS Plastic
• Color: Black
• Conductor Gauge Support: 22-26 AWG Solid/Stranded
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, keep pair twists as close to the termination point as possible. Verify the wiring sequence against the color-coded label on the jack before snapping the cap closed.
