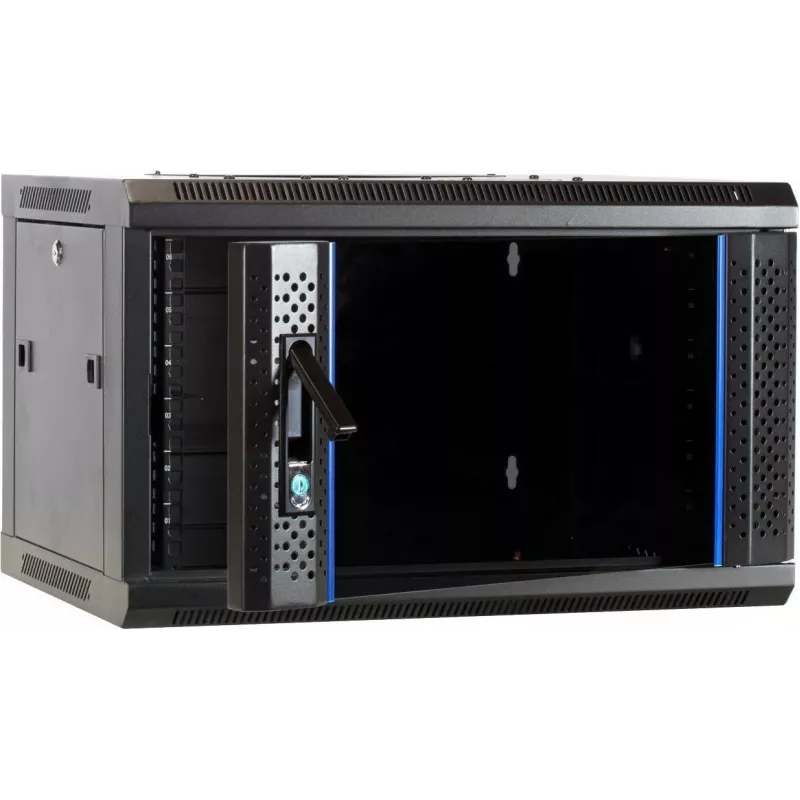

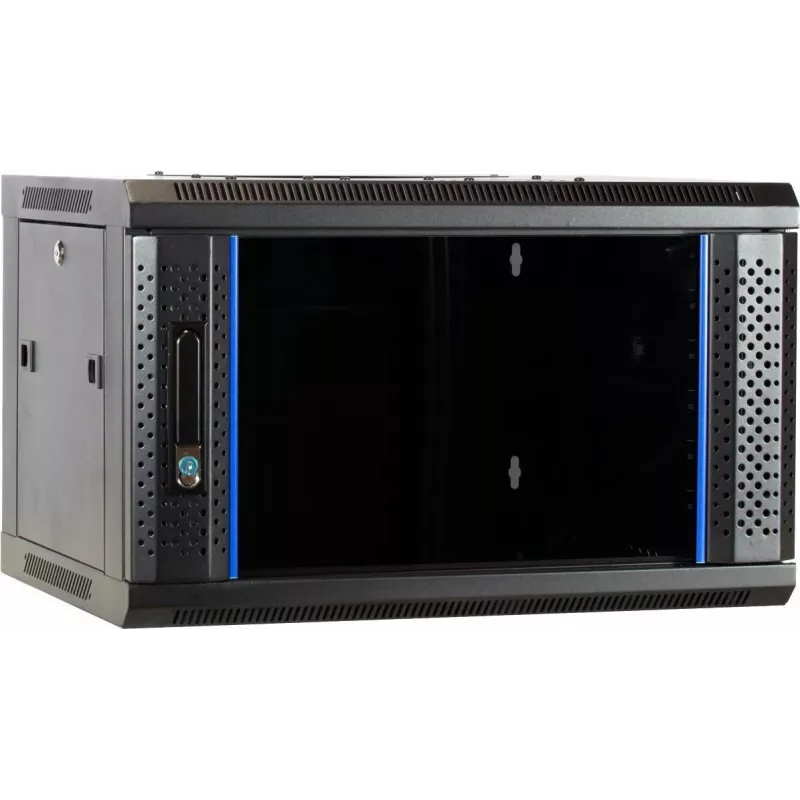

DSIT 6U wandmontage-serverbehuizing met glazen deur, 600 x 450 x 367 mm, zwart, DS6406

Small network installations often suffer from insecure equipment placement, dust exposure, and unauthorized access. The DSIT DS6406 6U wall-mount cabinet solves these problems by providing a lockable, ventilated enclosure that keeps your 19-inch servers, switches, and patch panels safe and organized. Its compact 600 x 450 x 367 mm footprint fits neatly in offices, workshops, or retail spaces where floor space is limited.

Who is it for

This cabinet is ideal for IT administrators, system integrators, and small businesses that need to secure network equipment in a wall-mounted form factor. It suits environments such as branch offices, classrooms, retail back offices, and industrial control rooms.

Main features

• 6U of 19-inch rack space with adjustable mounting rails for flexible equipment installation.
• Tempered glass front door with single-point key lock for visual monitoring and security.

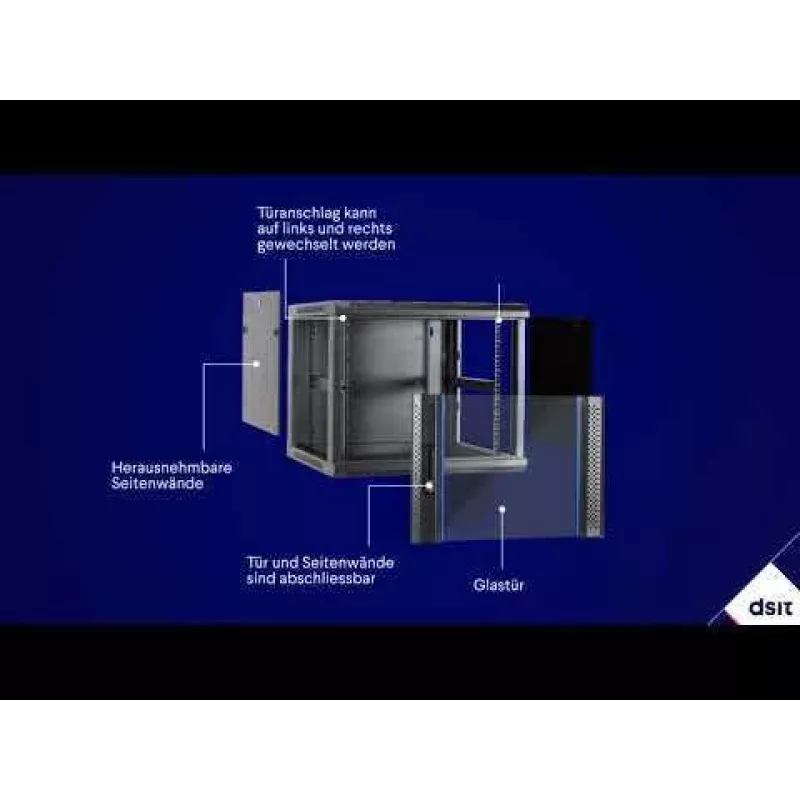

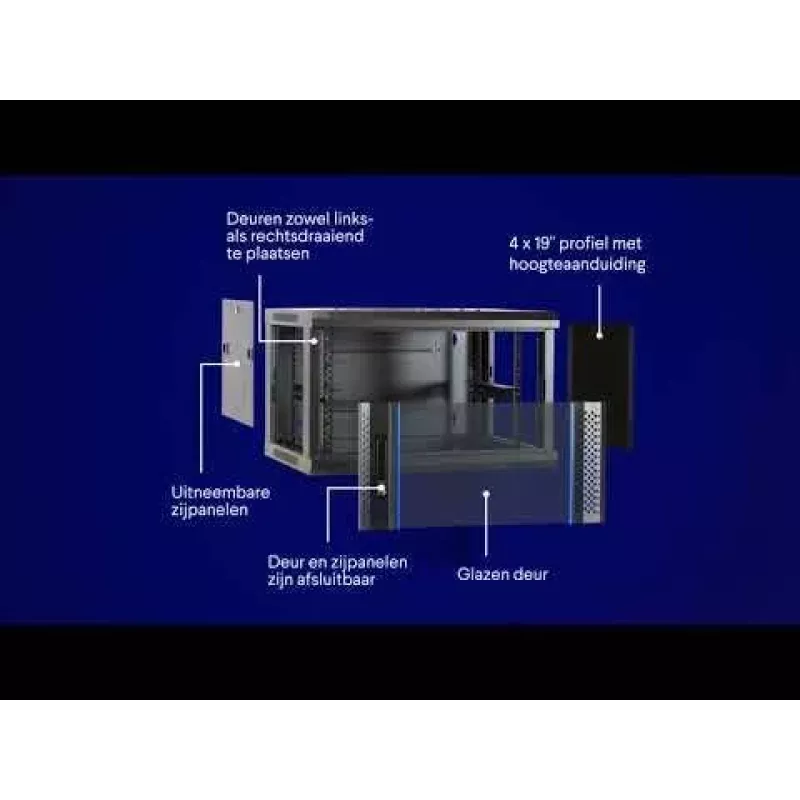

• Removable, lockable side panels for easy access during installation and maintenance.
• Top and bottom cable entry with brush strips to maintain a clean cable path and reduce dust ingress.
• Passive ventilation with fan cut-outs on top to dissipate heat from active equipment.
• Robust SPCC cold-rolled steel construction with powder-coated finish (RAL 9005 black) for durability.
• Supports up to 60 kg of equipment load, suitable for switches, patch panels, and small servers.

Specifications

• Rack capacity: 6U
• External dimensions (W x D x H): 600 x 450 x 367 mm
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated, black (RAL 9005)
• Front door: Tempered glass, lockable (single-point key lock)
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan cut-outs on top
• Rack standard: 19-inch EIA-310-D
• Protection rating: IP20
• Maximum weight capacity: 60 kg
• Included accessories: 2 keys, mounting hardware, cage nuts and screws
• Construction: Welded frame

Tips

Mount the cabinet on a sturdy wall using the included hardware, ensuring it is level and anchored to studs or concrete. Leave at least 100 mm clearance above the cabinet for proper ventilation. For installations with multiple active devices, consider adding optional fan units to the top cut-outs to improve airflow.
