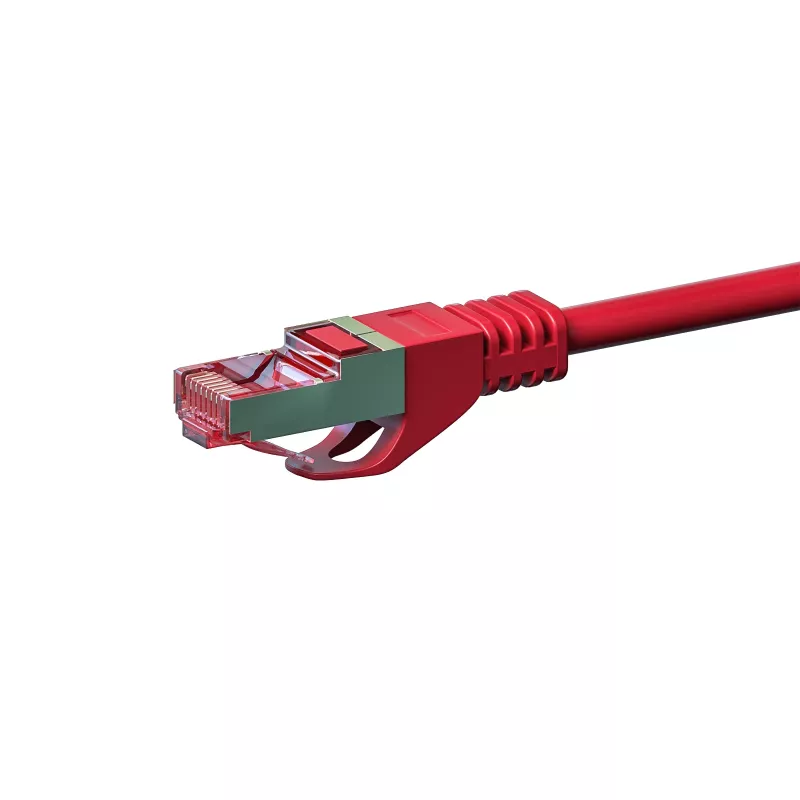

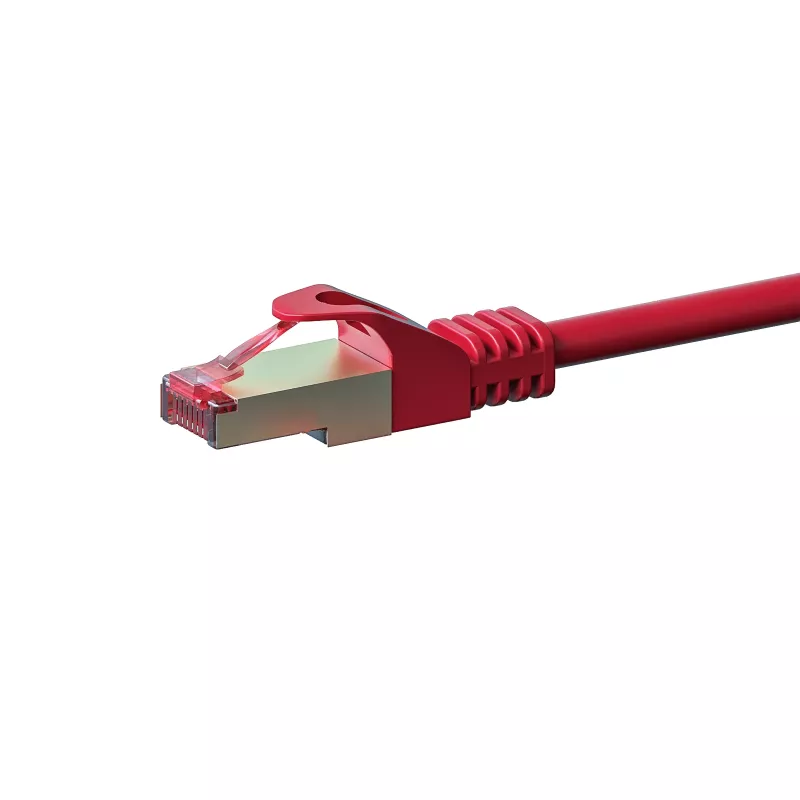

DSIT CAT 6 netwerkkabel LSOH - S/FTP - 20 m - rood (DC-S65-200)

Network reliability starts with the physical layer—and this 20-meter red Cat 6 cable eliminates weak links. With S/FTP shielding and LSOH jacket, it provides clean 10-Gigabit transmission even in electrically noisy environments, while the low-smoke zero-halogen material adds a critical safety margin in offices, server rooms, and industrial spaces.

Who is it for

IT professionals, network installers, and power users who need a dependable, high-performance patch cable for structured cabling, data centers, or long-distance desk-to-switch runs. The 20-meter length bridges gaps without excess slack, and the red jacket makes port identification quick in dense racks.

Main features

• Cat 6 performance with 250 MHz bandwidth and 10GBASE-T support up to 55 meters
• S/FTP construction: individual foil pairs plus overall braid screen for superior EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket: emits minimal smoke and no toxic halogens in fire conditions
• Stranded copper conductors for flexibility and repeated re-termination without breakage
• Molded RJ45 male connectors on both ends with gold-plated contacts for corrosion resistance
• Wired to TIA/EIA-568B standard, 100 Ohm impedance, 8 conductors (4 twisted pairs)

Specifications

• Cable type: Ethernet patch cable
• Category: Cat 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 20 m
• Color: Red
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: 250 MHz
• Conductor material: Copper, stranded
• Number of conductors: 8 (4 twisted pairs)
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Application: Data networking, Ethernet

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. When routing through walls or conduits, use LSOH-rated cable trays to maintain fire safety compliance. Pair with a matching red patch panel for a color-coded network that simplifies troubleshooting.
