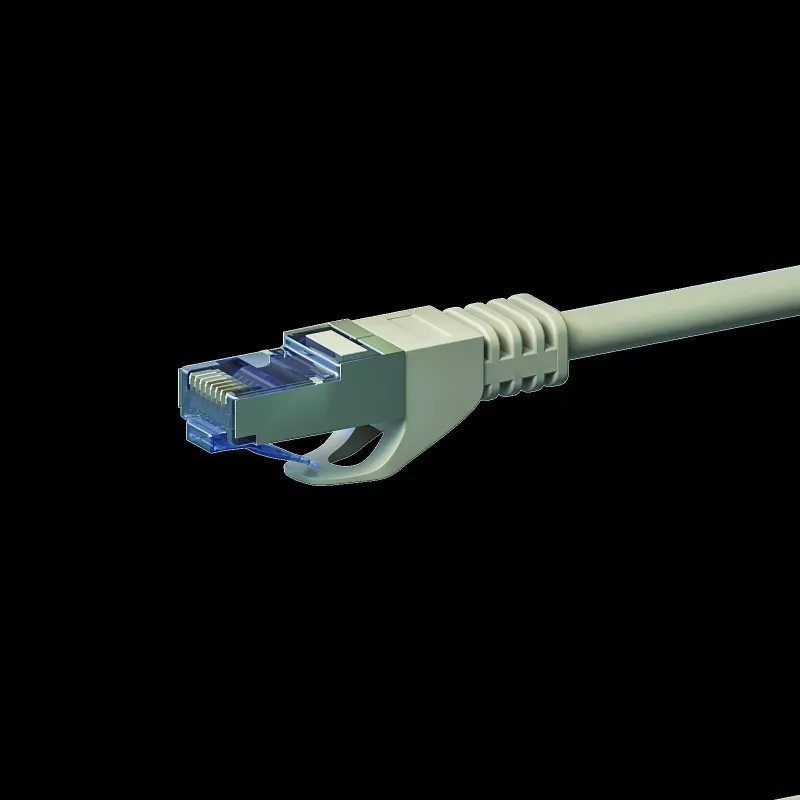

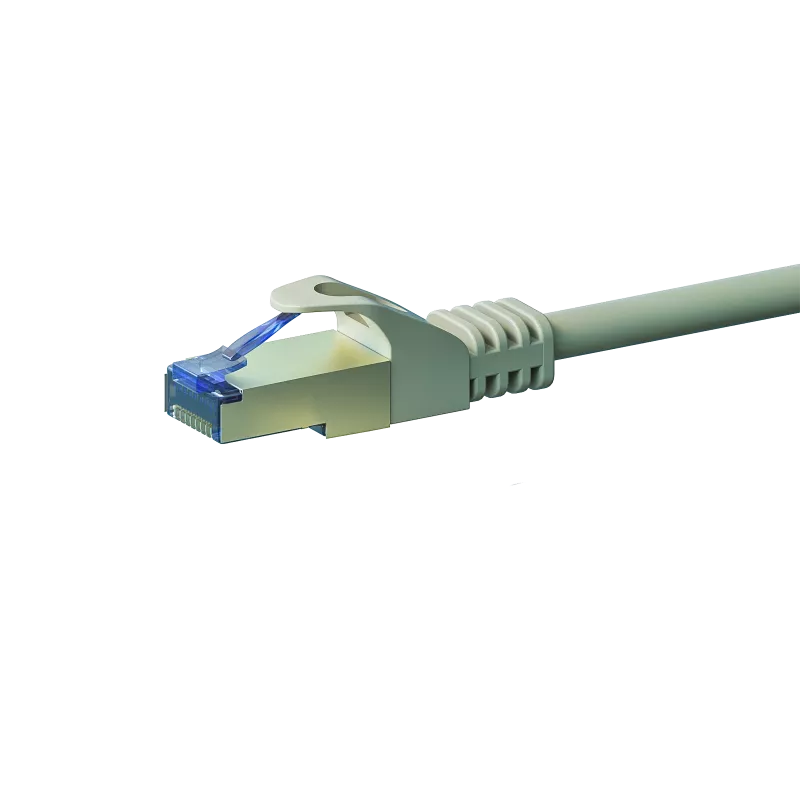

DSIT CAT 6a S/FTP LSOH netwerk-patchkabel, 0,5 m, grijs (DC-6A1-005)

For high-density patching where space is tight and performance cannot drop, this 0.5 m DSIT CAT 6a cable delivers full 10 Gigabit throughput in a compact, halogen-free build. Unlike generic patch cords that sacrifice shielding for flexibility, the S/FTP construction pairs each twisted pair in metal foil (PiMF) and wraps the bundle in an overall braided shield, virtually eliminating alien crosstalk even in crowded racks. The LSOH jacket means it won’t emit toxic fumes or corrosive smoke in a fire, making it a safe choice for offices, data centers, and public buildings. With a stranded 26/7 AWG copper core and snagless molded boots, it’s durable enough for frequent re-patching yet slim enough to keep cable management tidy.

Highlights

• CAT 6a performance: supports 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: PiMF + overall braid for superior EMI/RFI rejection
• LSOH jacket: low smoke, zero halogen, flame retardant (IEC 60332-1)
• Short 0.5 m length: ideal for patching between adjacent ports or devices
• Snagless molded boots protect the locking tab during installation
• Stranded copper conductors (AWG 26/7) for flexibility and longevity
• PoE ready: supports PoE, PoE+, and UPoE for powered devices

In daily use

This patch cable is built for real-world network environments. The grey jacket blends into standard rack setups, and the snagless design prevents accidental disconnects when moving cables. Because it’s only half a meter long, you avoid excess cable loops that block airflow or clutter your patch panel. The S/FTP shielding ensures stable 10G links even when bundled with power cables or other network lines. Whether you’re connecting a server to a switch, a patch panel to a workstation, or a PoE-powered access point, this cable maintains signal integrity without adding bulk.

Full specifications

• Brand: DSIT
• Model: DC-6A1-005
• MPN: DC-6A1-005
• EAN: 8719956621413
• Cable type: Ethernet Patch Cable
• Cable category: CAT 6a (Class Ea)
• Shielding type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor shielding: PiMF (Pairs in Metal Foil)
• Outer shielding: Braided Shield
• Length: 0.5 m
• Colour: Grey
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 Male (both ends)
• Wiring standard: TIA/EIA 568B
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (Stranded)
• Boot type: Molded, Snagless
• Application: LAN, Network, Patching
• Flame retardancy: IEC 60332-1 compliant
• Halogen free: Yes
• PoE support: PoE, PoE+, UPoE compatible

Final note

When you need a reliable, short patch lead that won’t compromise on safety or speed, the DSIT CAT 6a S/FTP LSOH cable is a professional choice that meets strict fire safety standards while delivering full 10G performance.
