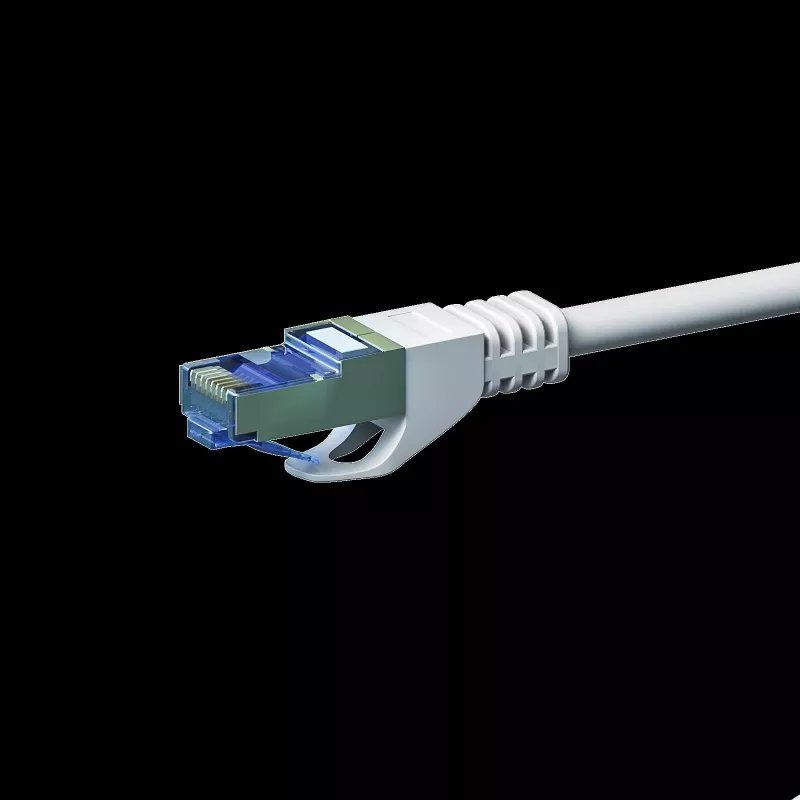

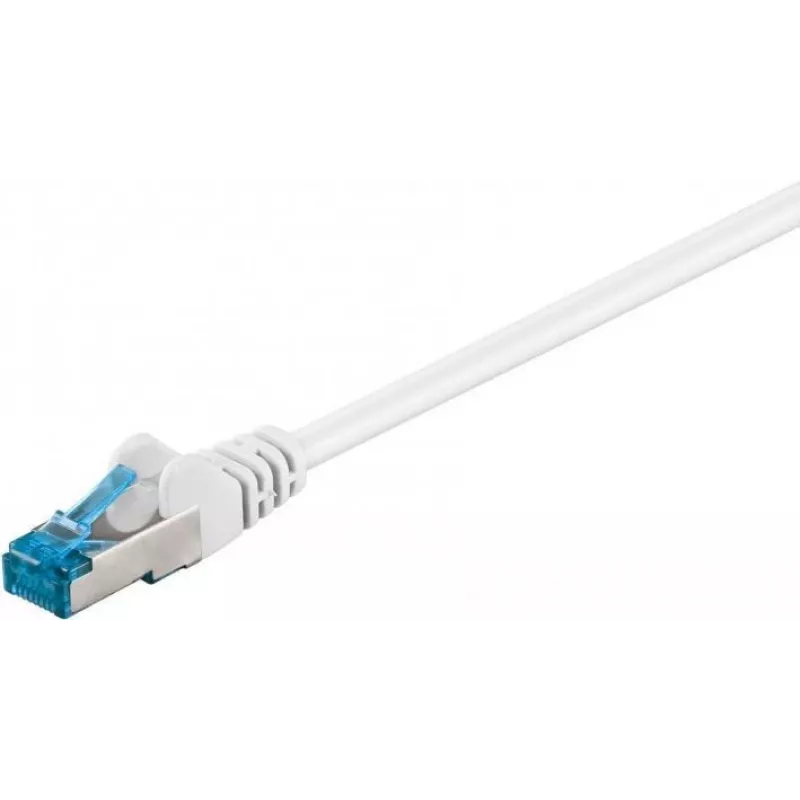

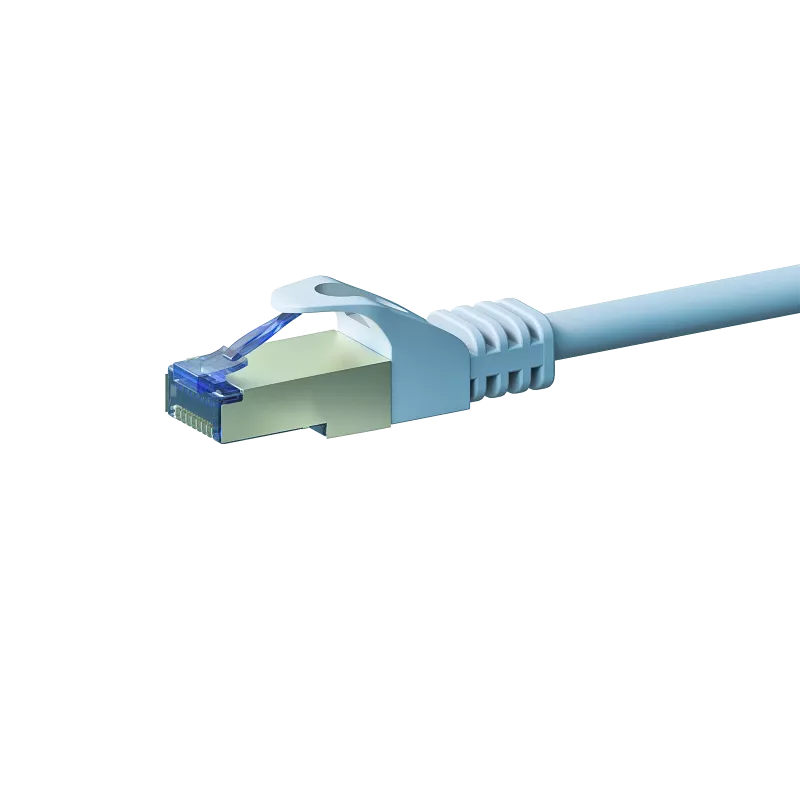

DSIT CAT 6a S/FTP LSOH netwerkkabel 10m wit (DC-6A2-100)

For high-density 10 Gigabit Ethernet links where low smoke emission and halogen-free safety are non-negotiable, this DSIT CAT 6a patch cable stands apart from standard PVC-jacketed alternatives. The LSOH sheath dramatically reduces toxic fume and smoke release in the event of fire, making it suitable for public buildings, data centres, and enclosed spaces. Each of the four twisted pairs is individually wrapped in metal foil (PiMF), and the entire bundle is protected by an outer braided screen (S/FTP), delivering superior immunity to alien crosstalk and electromagnetic interference. With a 500 MHz bandwidth and 26 AWG stranded copper conductors, the cable reliably sustains 10GBASE-T over its full 10-metre length while remaining flexible enough for tight patch panel routing.

Highlights

• CAT 6a performance: supports 10 Gigabit Ethernet up to 500 MHz
• S/FTP shielding with PiMF construction for maximum noise rejection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors ensure long-term corrosion resistance
• Stranded 26 AWG copper conductors for flexibility and durability
• Complies with IEC 60332-1, IEC 61034, and IEC 60754 fire safety standards

In daily use

This cable is ideal for connecting servers, switches, patch panels, and workstations in enterprise networks, data centres, and industrial environments. The white LSOH jacket remains clean and identifiable in cable trays, while the snagless RJ45 boots protect the locking tabs during frequent re-patching. Whether you are upgrading to 10G infrastructure or future-proofing a new installation, the DSIT DC-6A2-100 delivers stable, high-speed connectivity without compromising on safety or flexibility.

Full specifications

• Cable type: Ethernet patch cable, CAT 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair), PiMF
• Length: 10 meters
• Colour: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Conductor material: Copper, 26 AWG stranded
• Connector type: RJ45 male to RJ45 male, gold-plated contacts
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Fire safety standards: IEC 60332-1, IEC 61034, IEC 60754
• RoHS compliant: Yes
• Application: LAN, Ethernet, network patching

Final note

When performance, safety, and reliability are equally critical, the DSIT CAT 6a LSOH cable offers a professional-grade solution that meets stringent fire regulations while delivering the bandwidth needed for modern networks.
