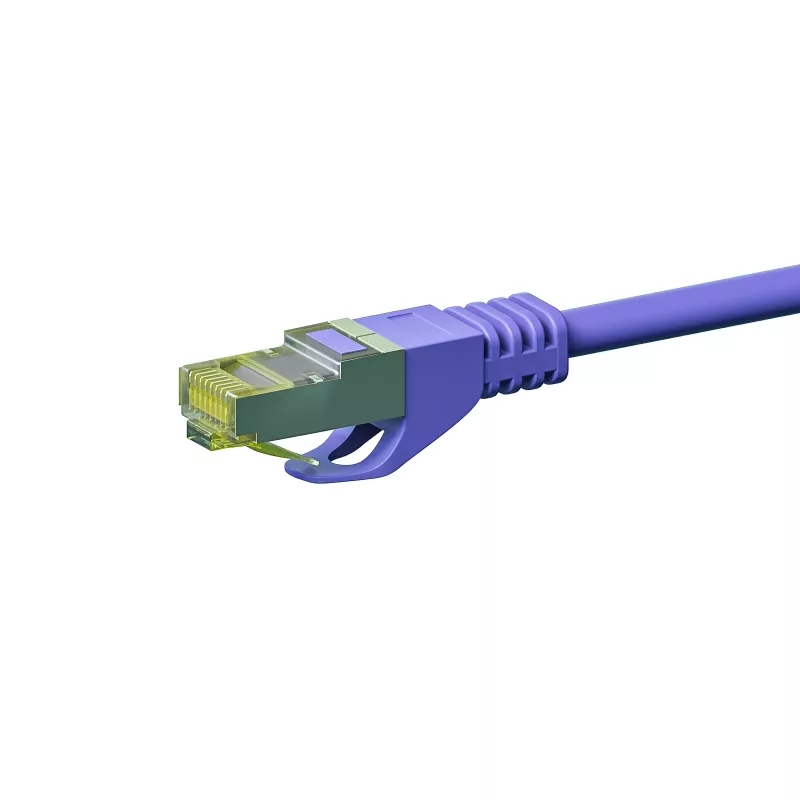

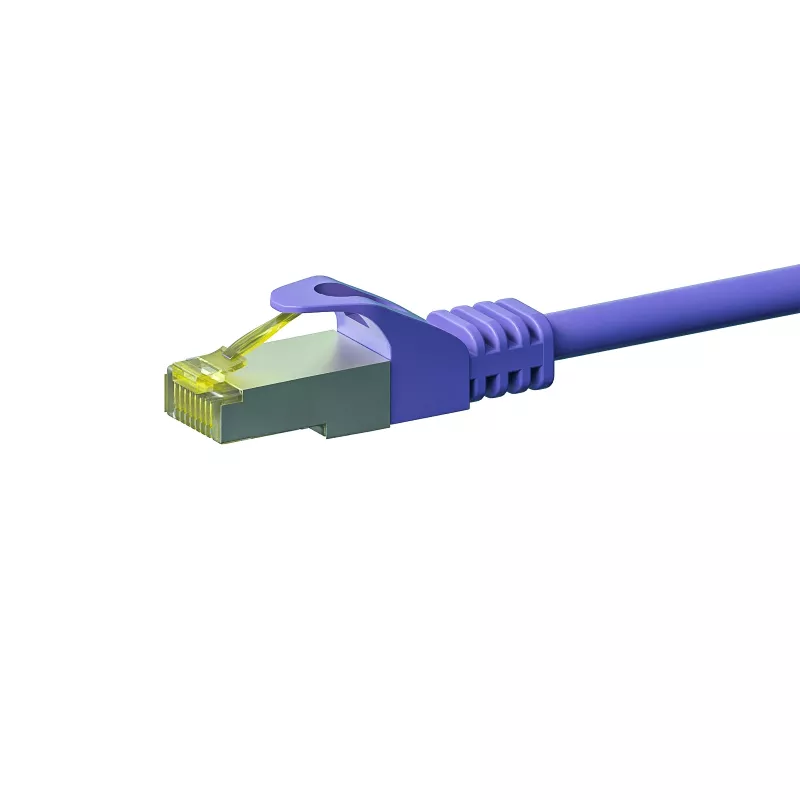

DSIT Cat.7 S/FTP PiMF RJ45 netwerk patchkabel, violet, 1 m (DC-78-010)

This DSIT patch cable delivers 10 Gigabit Ethernet over a 1-meter run, using Cat.7 S/FTP construction with PiMF shielding to keep signal integrity high even in dense racks.

Overview

The DSIT DC-78-010 is a violet Cat.7 network patch cable with RJ45 male connectors on both ends. Each twisted pair is individually wrapped in metal foil (PiMF), and the entire bundle is screened, providing excellent protection against crosstalk and electromagnetic interference. The cable supports frequencies up to 600 MHz and data rates up to 10 Gbps, making it suitable for high-speed LAN connections.

What stands out

• Cat.7 S/FTP shielding with PiMF for maximum noise immunity
• 10 Gigabit Ethernet ready, backward compatible with Cat.6a/6/5e
• Stranded copper conductors, AWG 26/7, for flexibility and durability
• Gold-plated RJ45 contacts ensure reliable connections
• Violet jacket for easy identification in cable management

Technical details

• Cable length: 1 m
• Cable standard: Cat.7
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper, stranded
• Conductor gauge: AWG 26/7
• Jacket material: PVC
• Impedance: 100 Ohm
• Max bandwidth: 600 MHz
• Data transfer rate: 10 Gbps

Our verdict

A dependable high-speed patch cable with top-tier shielding, ideal for connecting servers, switches, and workstations where interference is a concern.
