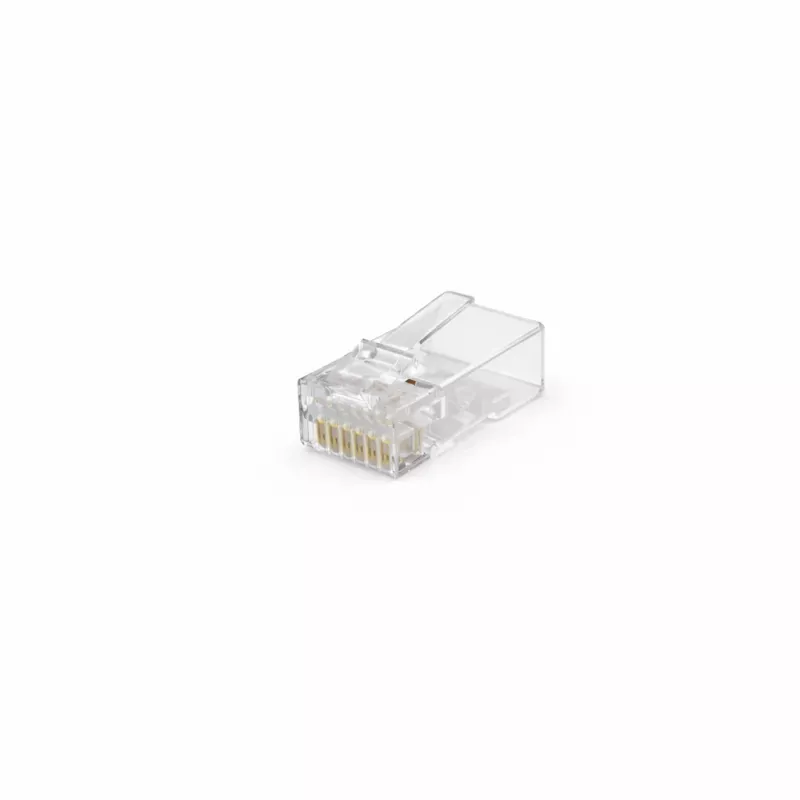

DSIT CAT5e UTP RJ45 stekker voor soepele en massieve geleiders, 10-pack

When standard RJ45 plugs fail on mixed cabling, this DSIT connector set keeps the job moving. Each transparent CAT5e UTP plug accepts both solid and stranded conductors, so one box covers patch leads and fixed installations alike. The 3µm gold-plated contacts and phosphor bronze construction deliver reliable Gigabit Ethernet performance without the premium price of tool-less alternatives.

Highlights

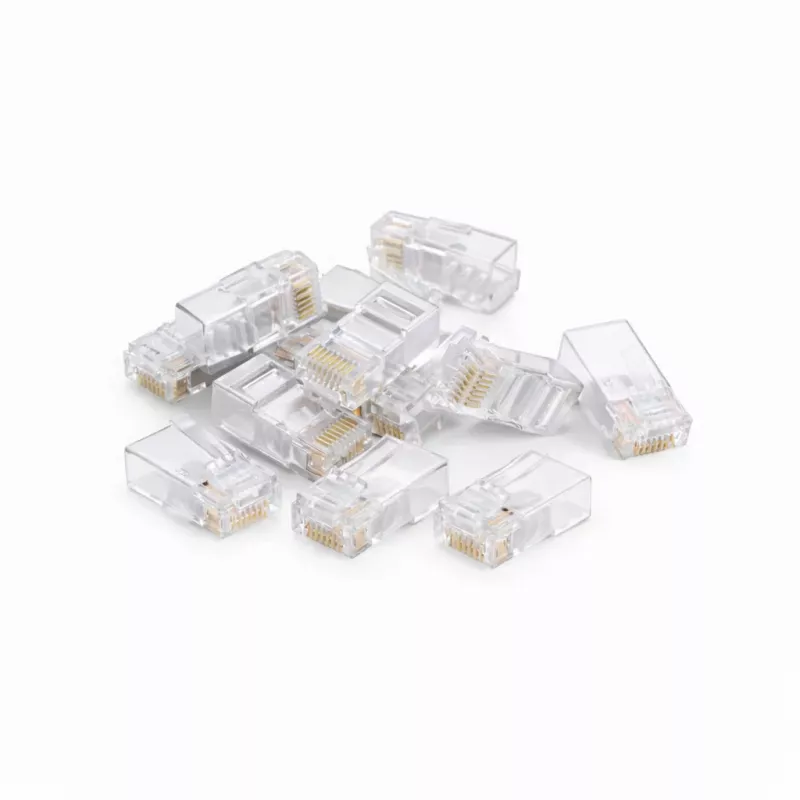

• 10-piece pack for multiple terminations or spares
• Supports 24–26 AWG solid and stranded cable
• 8P8C layout with 3µm gold-plated contacts
• Transparent polycarbonate housing for easy wire verification
• Meets TIA/EIA-568-B.2 CAT5e standards

In daily use

These crimp-style plugs are straightforward to install with a standard RJ45 crimp tool. The transparent body lets you confirm wire order before crimping, reducing rework. Use them for Ethernet patch cables, IP camera runs, or any 1000 Mbps network drop. Because they accept both solid and stranded cores, you can keep a single connector type in your toolkit for most CAT5e jobs.

Full specifications

• Connector type: RJ45 plug (8P8C)
• Cable category: CAT5e
• Shielding: UTP (unshielded twisted pair)
• Conductor compatibility: solid core and stranded core
• Contact material: phosphor bronze with 3µm gold plating
• Housing material: polycarbonate, transparent
• Termination method: crimp
• Max data rate: 1000 Mbps (Gigabit Ethernet)
• Max bandwidth: 100 MHz
• Cable gauge support: 24–26 AWG
• Standard compliance: TIA/EIA-568-B.2
• Pack quantity: 10 pieces
• Application: Ethernet networking
• Compatibility: standard RJ45 ports
• Reusability: single-use crimp connector

Final note

A practical 10-pack of CAT5e RJ45 plugs that handles both solid and stranded cable, making it a versatile choice for installers and DIY network builders.
