DSIT CAT6A SFTP 500m installatiekabel met massieve ader - LSZH B2ca - blauw

Experience 10 Gigabit Ethernet over 500 meters with this DSIT CAT6A SFTP cable, boasting a 500 MHz bandwidth and superior shielding to eliminate alien crosstalk. The solid bare copper conductors (AWG 23) ensure stable, high-speed data transmission in demanding structured cabling environments.

Overview

The DSIT CAT6A SFTP cable is a premium installation cable designed for high-performance network infrastructures. With a length of 500 meters on a convenient reel, it is ideal for large-scale projects. The cable features four twisted pairs of solid bare copper conductors, each individually wrapped in foil (PiMF) and protected by an overall braided shield, providing excellent immunity to electromagnetic interference (EMI) and crosstalk. The LSZH (Low Smoke Zero Halogen) jacket meets the stringent B2ca-s1a,d1,a1 Euroclass fire rating, ensuring minimal smoke and toxic emissions in case of fire, making it safe for use in public buildings and confined spaces.

What stands out

• Supports 10GBASE-T Ethernet up to 500 MHz bandwidth
• SFTP shielding: individual foil per pair plus overall braid for maximum noise rejection
• Solid bare copper conductors (AWG 23) for reliable, long-distance performance
• LSZH jacket with B2ca-s1a,d1,a1 fire classification for enhanced safety

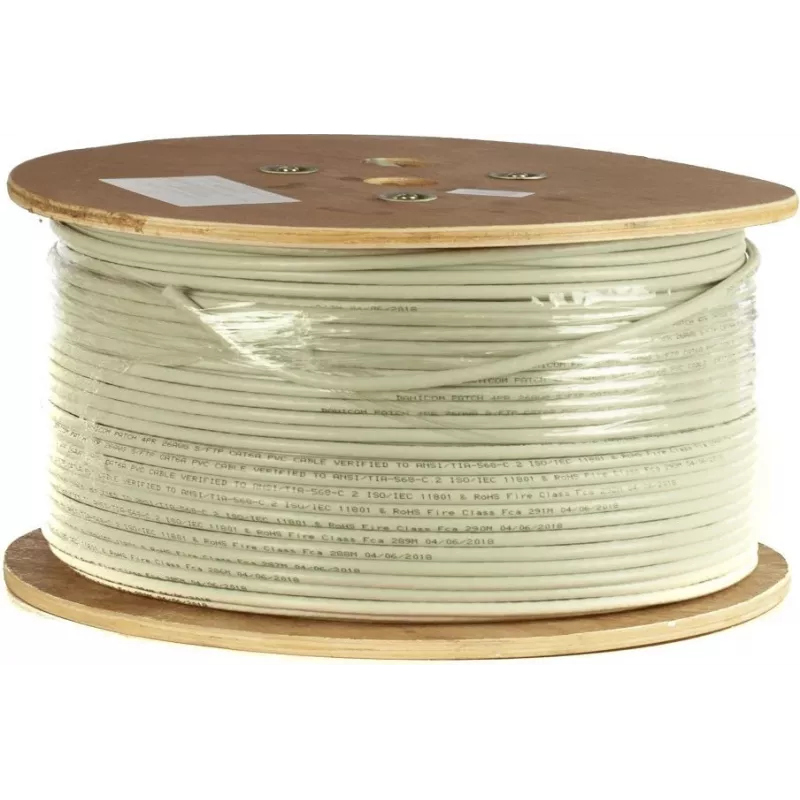

• 500-meter reel packaging for efficient installation
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards

Technical details

• Cable type: CAT6A SFTP (Shielded Foiled Twisted Pair)
• Conductor: Solid bare copper, AWG 23
• Shielding: Individual foil per pair (PiMF) + overall braid
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Euroclass fire rating: B2ca-s1a,d1,a1
• Max. data rate: 10 Gigabit Ethernet (10GBASE-T)
• Max. bandwidth: 500 MHz
• Impedance: 100 Ohm
• Number of pairs: 4 twisted pairs
• Outer diameter: approx. 7.8 mm
• Application: structured cabling, installation cable
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -20°C to +60°C
• Colour: Blue
• Packaging: cable drum / reel

Our verdict

With its robust shielding, solid copper conductors, and high fire safety rating, this cable is an excellent choice for professional installations where performance and safety are paramount.
