DSIT DANICOM CAT6A S/FTP 305m installatiekabel met massieve geleider - LSZH (Dca) - 10GBase-T, 500MHz, PoE++

Where UTP cables rely on spacing to dodge alien crosstalk, this DSIT DANICOM CAT6A S/FTP takes a more direct approach: every pair gets its own aluminium foil shield, and the whole bundle is wrapped in a tinned copper braid. The result is headroom that holds up in cable-dense pathways, making 10GBASE-T dependable over the full 100 m channel—even when PoE++ is pushing up to 100 W through the same run.

Highlights

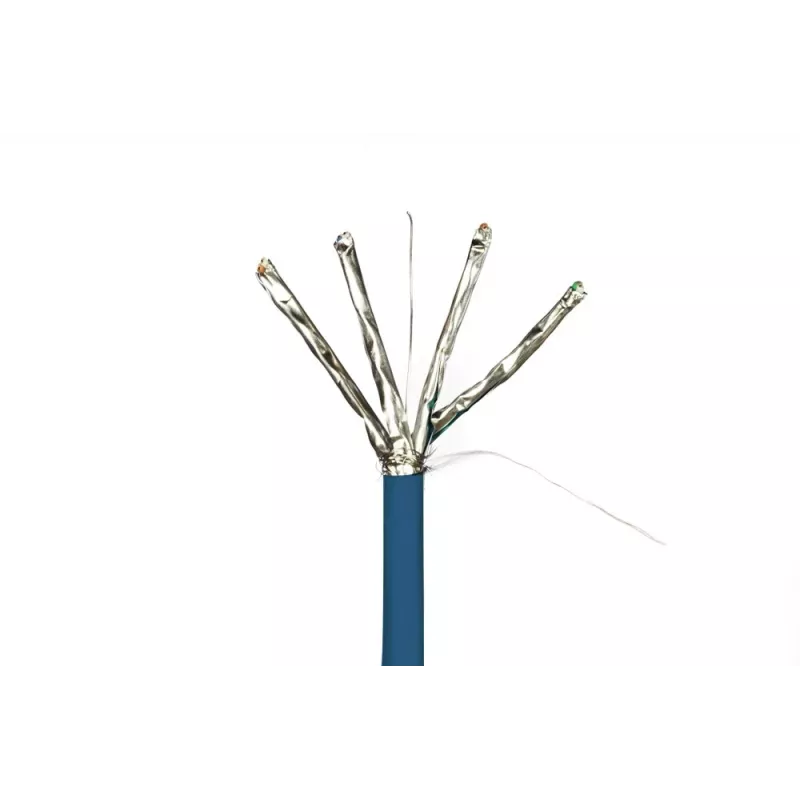

• Category 6A S/FTP (Screened/Foiled Twisted Pair) with per-pair foil and overall tinned copper braid
• Solid bare copper conductors, 23 AWG, for stable PoE delivery and easy termination
• Low Smoke Zero Halogen (LSZH) jacket with CPR Euroclass Dca for safer indoor installations
• Supports 10GBASE-T, PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) up to 100 W
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

In daily use

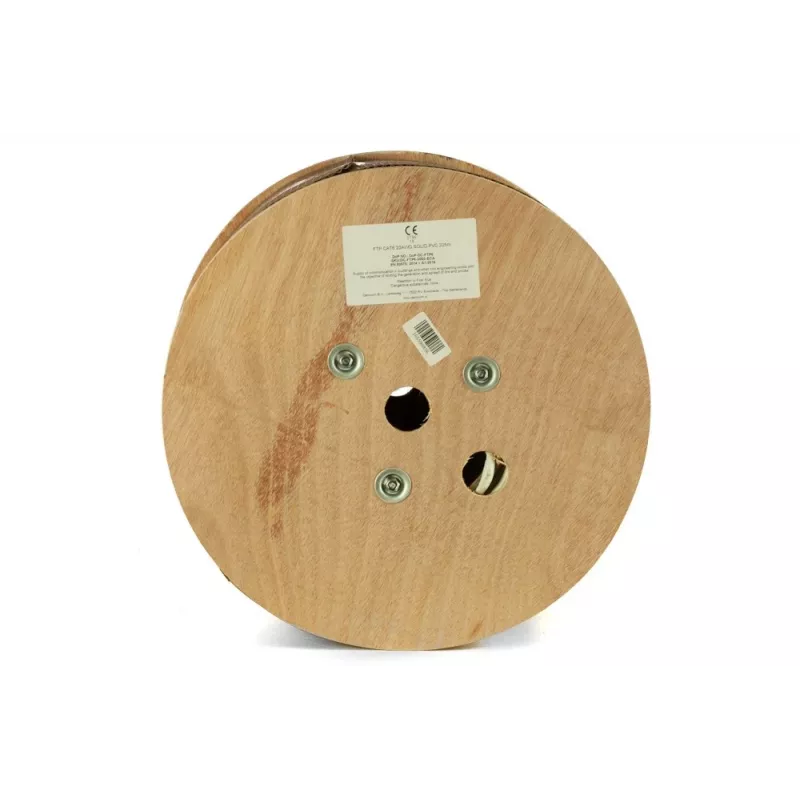

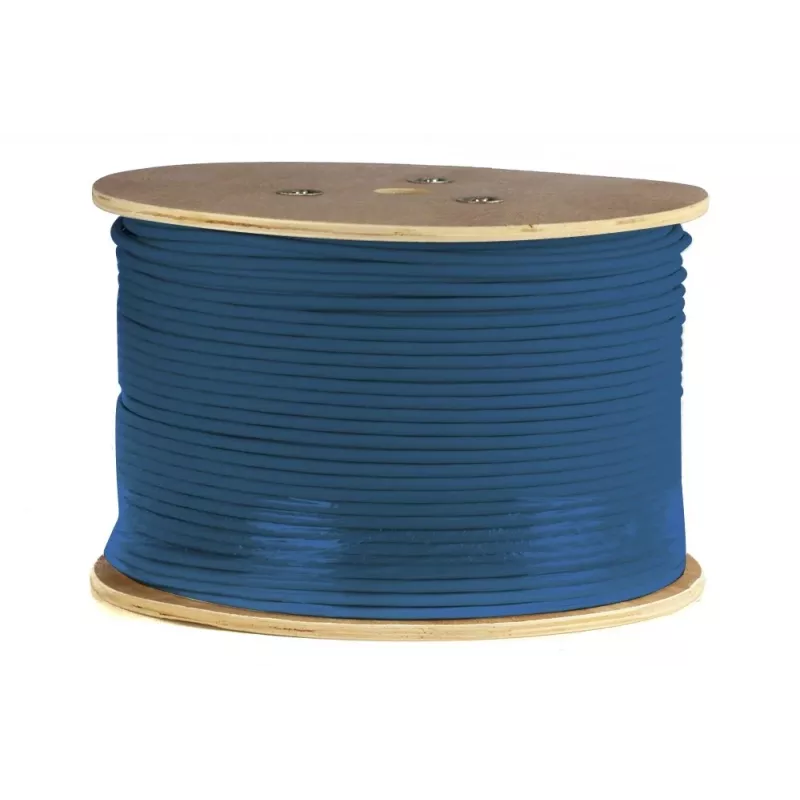

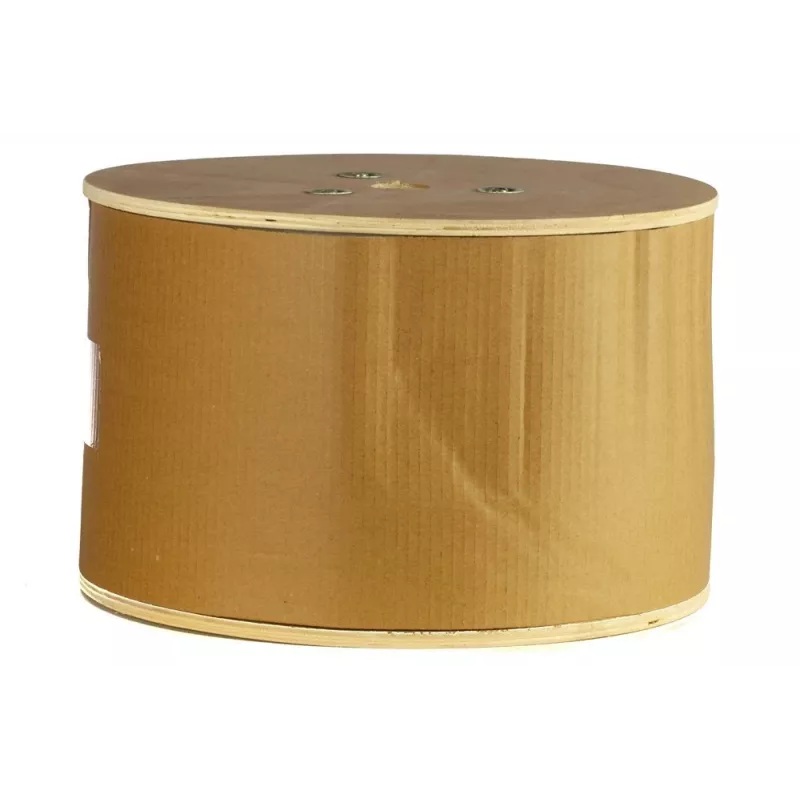

Installers will appreciate the 305 m pull-box format, which reduces mid-run splices and waste on large floor distributions. The solid conductors hold their shape in punch-down blocks and modular jacks, speeding up termination in patch panels and outlets. The LSZH jacket emits very low smoke and no halogen gases in a fire, making this cable suitable for public buildings, healthcare, and data centres where evacuation safety is critical. The Dca CPR classification provides documented fire performance for EU projects.

Full specifications

• Cable Category: CAT6A
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Type: Solid
• Cable Length: 305 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Class: Dca
• Max Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Max Bandwidth: 500 MHz
• Conductor Material: Bare Copper
• Number of Pairs: 4 Twisted Pairs
• Application: Indoor Installations
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Conductor Gauge: 23 AWG
• Pair Shielding: Aluminum Foil (PIMF)
• Overall Shielding: Tinned Copper Braid
• Impedance: 100 Ohm
• Power over Ethernet (PoE) Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Final note

For high-density 10 Gigabit backbones and PoE++ edge deployments, this cable delivers certified headroom in a practical pull-box format. The S/FTP construction ensures superior ANEXT performance, making it a reliable choice for demanding enterprise networks.
