DSIT DANICOM CAT6A U/UTP 100m flexibele PVC (Fca) netwerkkabel

Running high-speed 10 Gigabit Ethernet over longer distances often means fighting stiff, hard-to-manage cables that make installation a chore and compromise performance. The DSIT DANICOM CAT6A U/UTP 100m Flexible PVC cable solves that by combining full Cat6a bandwidth with a truly flexible jacket, so you can pull, route, and terminate it without the usual wrestling match. This unshielded twisted pair cable delivers reliable 10GBASE-T connectivity up to 100 metres, making it ideal for horizontal runs in offices, data centres, and industrial LANs. The PVC outer sheath is CPR Fca rated for basic fire safety, and the solid bare copper conductors ensure excellent signal integrity and full PoE support up to 4PPoE. Whether you're wiring a new building or upgrading an existing network, this 100-metre pull-box gives you the length and performance you need in one convenient package.

Who is it for

This cable is built for professional network installers, IT technicians, and facility managers who need dependable Cat6a performance without the bulk and stiffness of typical shielded or solid-core cables. It's perfect for horizontal cabling in office buildings, patch panel connections in server rooms, and any environment where 10 Gigabit Ethernet is required over distances up to 100 metres. If you're running PoE devices like IP cameras, wireless access points, or VoIP phones, this cable's solid copper conductors and full PoE++ support ensure safe power delivery without overheating. The flexible PVC jacket makes it easy to work with in tight spaces, and the pull-box packaging keeps the cable tangle-free during installation.

Main features

• Cat6a performance with 500 MHz bandwidth for 10GBASE-T up to 100 m
• Flexible PVC jacket for easy pulling, routing, and termination
• U/UTP unshielded twisted pair design reduces crosstalk and saves space
• Solid bare copper conductors for superior signal integrity and PoE++ support
• CPR Fca fire rating for basic safety in building installations

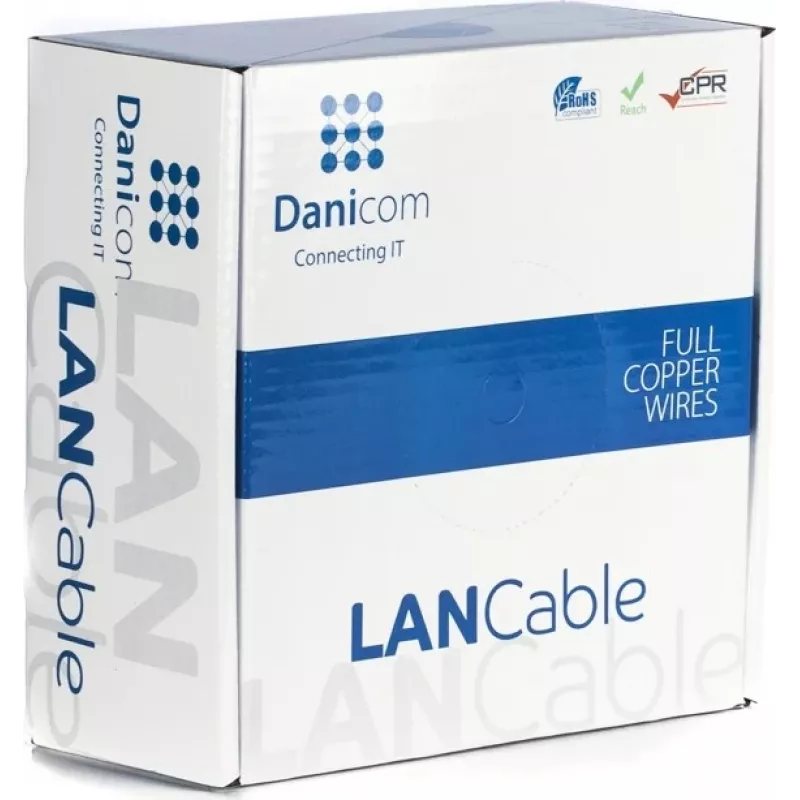

• 100-metre pull-box for convenient bulk installation

Specifications

• Cable type: Cat6a U/UTP network cable
• Length: 100 m
• Jacket material: PVC (Fca)
• Conductor: Solid bare copper, 4 twisted pairs
• Bandwidth: 500 MHz
• Data rate: 10 Gbps (10GBASE-T)
• PoE support: PoE, PoE+, PoE++ (4PPoE)
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Impedance: 100 Ohm
• Outer diameter: approx. 6.5 mm
• Operating temperature: -20°C to +60°C
• RoHS compliant

Tips

For best performance, avoid exceeding the maximum pulling tension and maintain the minimum bend radius during installation. Use compatible Cat6a connectors and patch panels to ensure full 10G speeds. When deploying PoE devices, verify that your power sourcing equipment supports the required PoE class. Store the pull-box in a dry, cool place away from direct sunlight to preserve the jacket's flexibility.
