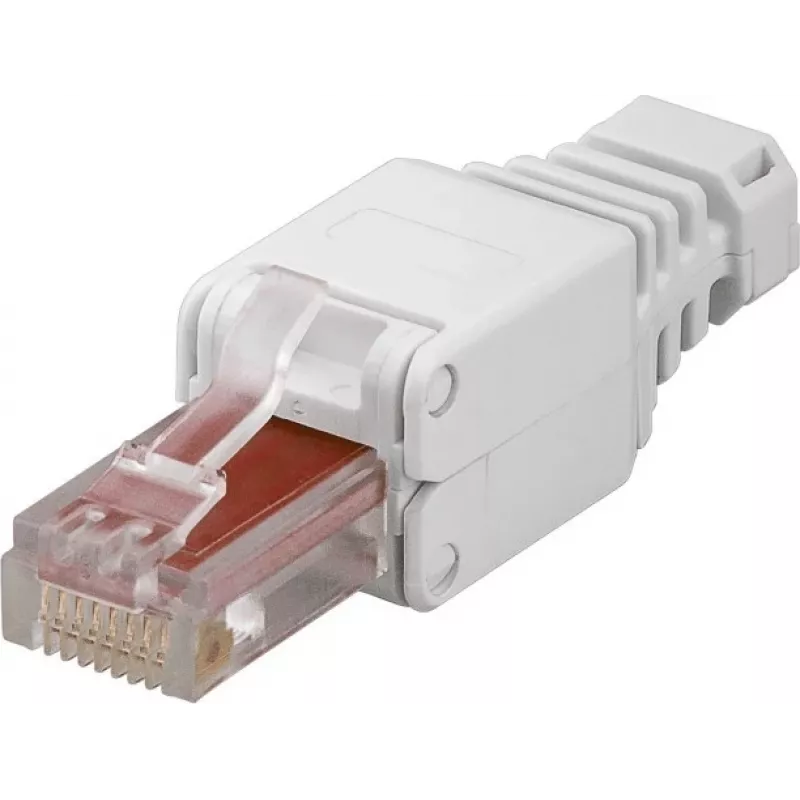

DSIT DANICOM UTP CAT6 toolless RJ45 netwerkconnector voor soepele en massieve aders (DC-RJ45-UTP6-TL)

Field technicians terminating Ethernet runs in office buildings and data centers often face a dilemma: crimp connectors are fast but require a specialized tool, while toolless options can be fiddly or unreliable. The DSIT DANICOM UTP CAT6 Toolless RJ45 connector eliminates that trade-off. This connector snaps together by hand, yet delivers a secure, gas-tight IDC termination for both solid and stranded UTP cables. Whether you're pulling a new Cat6 drop to a workstation or repairing a patch cable in a server rack, you get a professional-grade connection without carrying a crimper.

Key specifications

• Connector type: RJ45 (8P8C) male plug
• Category: Cat6, compliant with TIA/EIA-568-C.2
• Shielding: UTP (unshielded twisted pair)
• Termination: Toolless IDC, no crimp tool required
• Cable compatibility: solid and stranded (flexible) UTP, 23–26 AWG
• Contact plating: 50-micron gold over phosphor bronze
• Housing: high-impact polycarbonate (PC)
• Performance: up to 10 Gbps (10GBASE-T for short distances), 250 MHz bandwidth
• PoE support: PoE, PoE+, UPoE
• Reusability: up to 5 re-termination cycles
• Operating temperature: -10°C to 60°C
• Certifications: RoHS, CE

Why choose it

The toolless design saves time and eliminates the need for a crimp tool, making it perfect for on-site installations and quick repairs. The 50-micron gold plating on the contacts ensures low contact resistance and excellent corrosion resistance, maintaining signal integrity over the life of the connection. The high-impact PC housing withstands rough handling, and the connector supports Power over Ethernet, so you can use it for IP cameras, wireless access points, and VoIP phones without concern.

Ideal use cases

• Terminating horizontal Cat6 cabling in offices and commercial buildings
• Creating custom-length patch cables for data centers and server rooms
• Repairing damaged RJ45 connectors on existing UTP cables
• Installing PoE-powered devices such as security cameras and access points
• Home networking projects where a professional finish is desired

Good to know

While the connector is rated for up to 10 Gbps, actual throughput depends on cable quality, length, and installation practices. For best results, follow TIA/EIA-568 wiring standards (T568A or T568B) and keep pair twists as close to the termination point as possible. The connector is intended for UTP cable only; do not use with shielded (FTP/STP) cable unless the shield is properly grounded elsewhere. Each connector is individually packaged and ready for immediate use.
