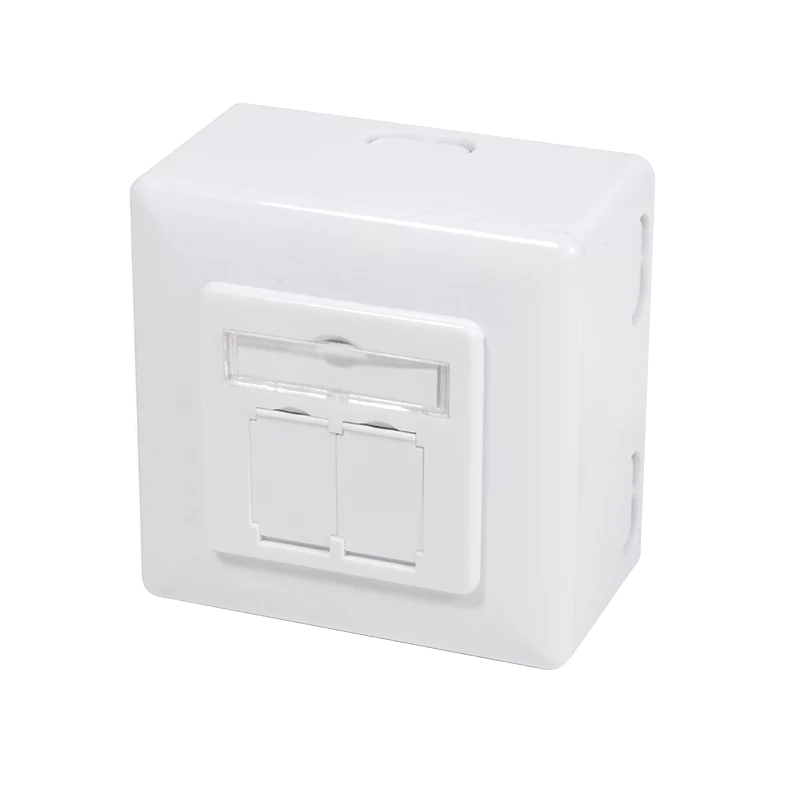

DSIT DC-Wall-Out-STP6A-W opbouw Cat. 6a afgeschermde dubbele RJ45-data-aansluitdoos, wit

In modern office environments, network reliability is non-negotiable. The DSIT DC-Wall-Out-STP6A-W provides a robust, surface-mounted solution for delivering high-speed Ethernet connectivity exactly where it's needed. This double outlet features two fully shielded RJ45 ports, each capable of supporting 10 Gigabit Ethernet up to 500 MHz bandwidth, making it ideal for workstations, conference rooms, and industrial settings where in-wall cabling is impractical.

Key specifications

• Category 6a (Class EA) performance, supporting 10GBASE-T up to 500 MHz
• Two shielded RJ45 ports with gold-plated contacts for reliable connections
• Surface-mounted (Aufputz) design for easy installation on walls or furniture
• Fully shielded (STP) construction to minimize electromagnetic interference
• LSA (Krone) compatible termination for solid and stranded conductors (AWG 22-24)
• Integrated dust shutters to protect ports when not in use
• Compact, robust ABS plastic housing in white
• Supports TIA/EIA 568A/B wiring schemes

Why choose it

This outlet delivers enterprise-grade performance in a durable, easy-to-install package. The shielded design ensures signal integrity even in electrically noisy environments, while the surface-mount form factor eliminates the need for wall cavities. Gold-plated contacts resist corrosion, and dust shutters keep ports clean for long-term reliability.

Ideal use cases

• Office workstations requiring high-speed, dependable network access
• Conference rooms and huddle spaces with multiple devices
• Industrial or commercial settings where surface mounting is preferred
• Retrofit projects where running new in-wall cable is difficult

Good to know

The outlet is designed for indoor use and is compatible with standard Cat. 6a cabling. It can be mounted quickly using screws (not included) and is suitable for both solid and stranded conductors, offering flexibility in cable selection.
