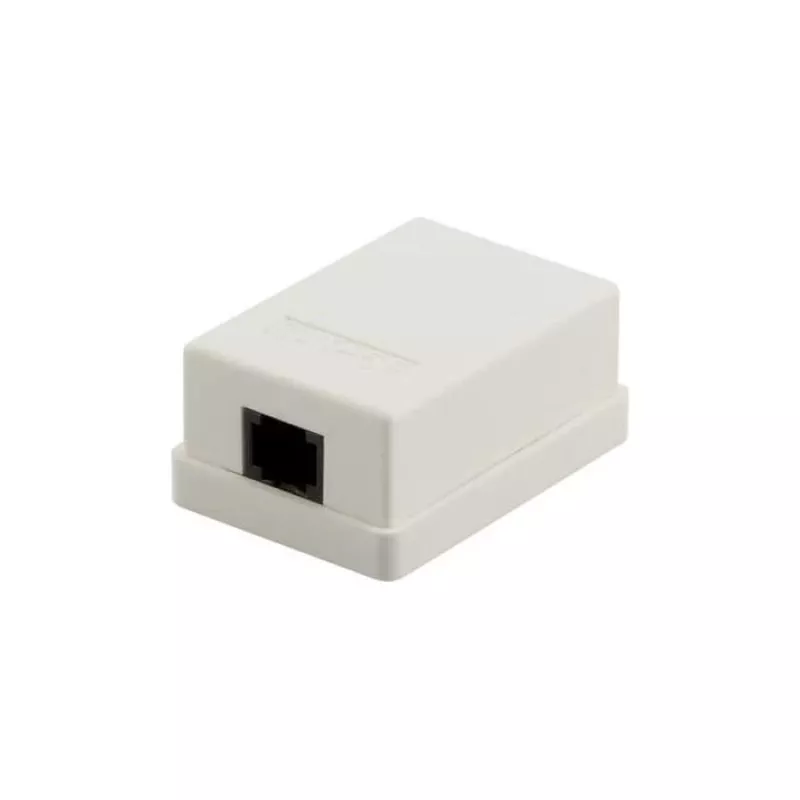

DSIT DS-Wall-Out-UTP5-I opbouw Cat5e UTP RJ45 aansluitdoos ivoor

Network installations often require a reliable, surface-mounted connection point where in-wall cabling is not an option. The DSIT DS-Wall-Out-UTP5-I provides a single unshielded RJ45 outlet in a compact ivory housing, delivering Category 5e performance for Gigabit Ethernet connectivity.

Who is it for

This outlet is intended for electricians, network installers, and IT technicians who need to terminate Cat5e UTP cabling at a wall or surface location. It suits offices, homes, and light commercial environments where a surface-mounted data point is required.

Main features

• Surface mount design for easy installation on walls or panels
• One RJ45 port, unshielded (UTP), 8P8C configuration
• Supports Category 5e / Class E performance up to 1 Gbps
• IDC termination compatible with TIA/EIA 568A/B wiring
• Ivory ABS housing, screw-fixed

Specifications

• Product type: Network data outlet
• Mounting type: Surface mount
• Cabling standard: Category 5e (Class E)
• Shielding: Unshielded (UTP)
• Number of ports: 1
• Connector type: RJ45
• Colour: Ivory
• Data transfer rate: Up to 1 Gbps
• Wiring standard: TIA/EIA 568A/B
• Termination type: IDC
• Housing material: ABS plastic
• Compliance: ISO/IEC 11801 Class E
• Installation: Screw-fixed
• Port configuration: 8P8C
• Environmental use: Indoor

Tips

Use a punch-down tool to terminate the cable conductors into the IDC blocks. Ensure the cable jacket is stripped to the correct length and that pairs remain twisted as close to the termination point as possible to maintain Category 5e performance.
