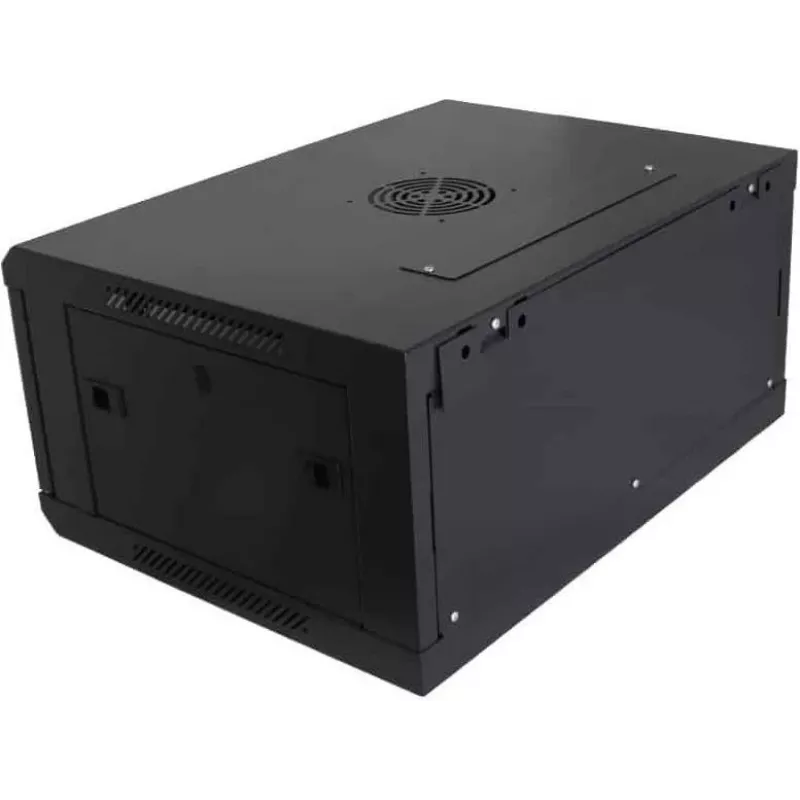

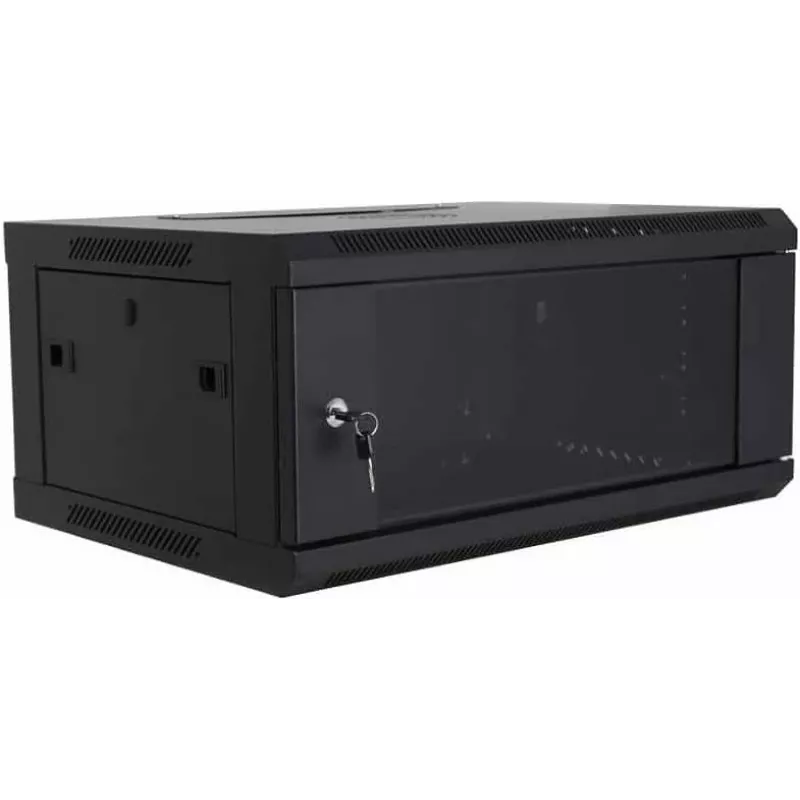

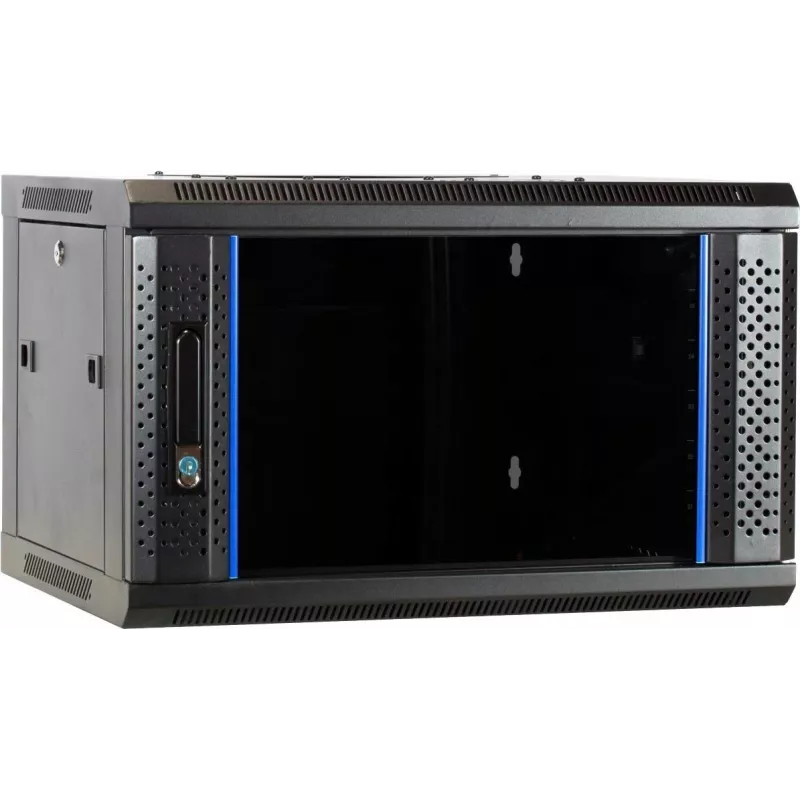

DSIT DS6404 4U wandmontage-serverkast met glazen deur, 600x450x280 mm, zwart

In a small office or retail back room, IT staff often need to secure network switches, patch panels, and small servers without sacrificing floor space. The DSIT DS6404 4U wall-mount cabinet answers that need with a compact 600 x 450 x 280 mm footprint and a lockable glass front door. Mount it above a desk or in a narrow corridor, and you keep critical equipment organized, protected, and easily visible through the glass.

Key specifications

• 4U rack capacity, wall-mount design
• External dimensions: 600 mm width, 450 mm depth, 280 mm height
• Front glass door with key lock
• SPCC cold rolled steel construction, black powder-coated finish (RAL 9005)
• Maximum static load capacity: 60 kg

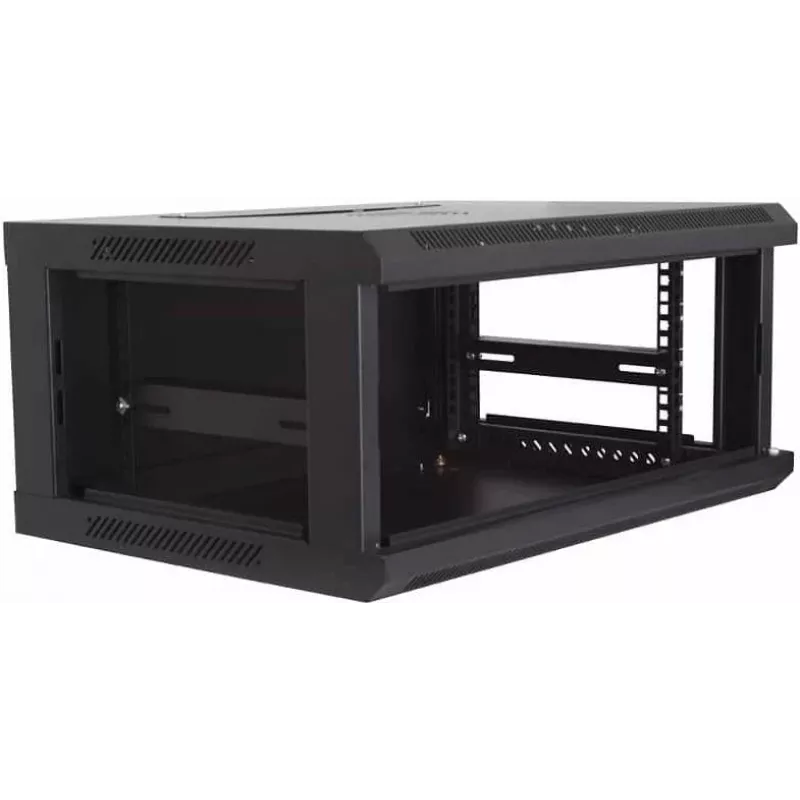

• Removable, lockable side panels
• Top and bottom cable entry with brush strips
• Compliant with ANSI/EIA RS-310-D, IEC 297-2, DIN 41494 Part 1 and Part 7
• IP20 protection rating
• Includes 2 keys, mounting hardware, cage nuts, and screws

Why choose it

The DS6404 combines sturdy steel construction with practical cable management and security. The glass door lets you monitor indicator lights without opening the cabinet, while the key lock prevents unauthorized access. Removable side panels simplify equipment installation and maintenance. Passive ventilation keeps airflow moving, and the cabinet is ready for an optional fan unit if your gear runs hot.

Ideal use cases

• Small business network closets
• Retail point-of-sale systems
• Security and surveillance equipment
• Classroom or lab AV racks
• Industrial control panels

Good to know

The usable internal depth is approximately 400 mm, providing ample space for standard 19-inch equipment. The cabinet ships with all necessary mounting hardware, making installation straightforward. Its IP20 rating indicates protection against solid objects larger than 12 mm, suitable for indoor environments. The black RAL 9005 finish offers a professional appearance that blends with most office decor.
