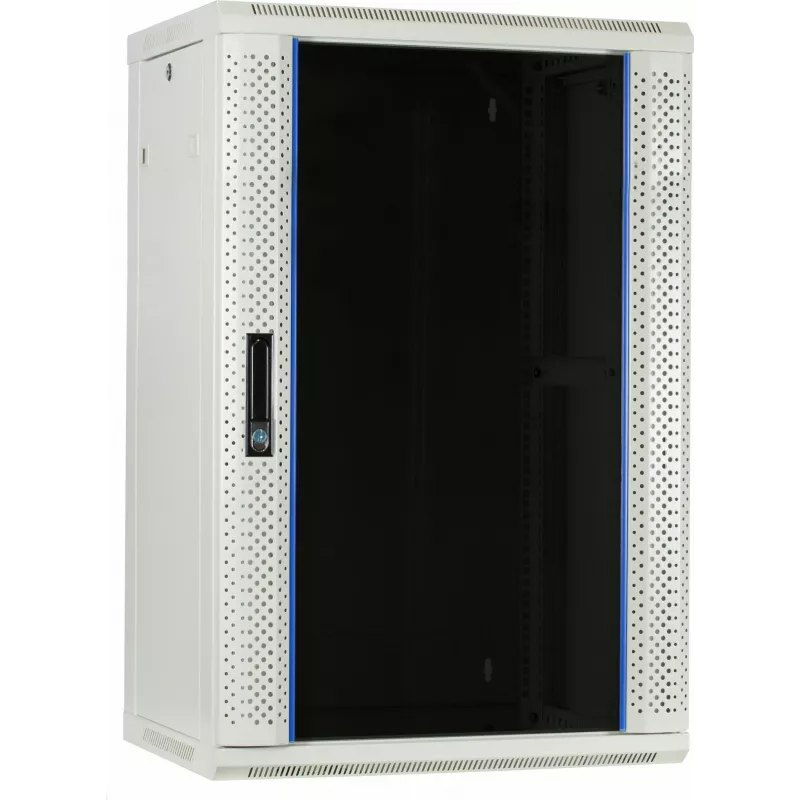

DSIT DS6418W 18U wandmontage serverbehuizing met glazen deur, 600x450x900 mm, wit

Network administrators and IT technicians often need a secure, space-saving enclosure for patch panels, switches, and small servers in offices, retail back rooms, or branch locations. The DSIT DS6418W 18U wall-mount cabinet answers that need with a lockable tempered-glass front door, removable side panels, and a clean white finish that blends into modern interiors. Its 600 mm width accommodates standard 19-inch equipment, while the 450 mm depth suits shallow networking gear and compact servers. With a static load capacity of 60 kg, it reliably supports a full rack of devices. Passive ventilation through perforated top and bottom panels, along with brush-strip cable entries, keeps cabling tidy and promotes airflow. The cabinet arrives with two keys and all mounting hardware, ready for quick installation.

Key specifications

• Rack capacity: 18U (19-inch standard)
• External dimensions (WxDxH): 600 x 450 x 900 mm
• Maximum static load: 60 kg
• Front door: tempered glass, lockable
• Side panels: removable and lockable
• Material: SPCC cold-rolled steel, powder-coated white (RAL 9003)
• Ventilation: passive, perforated top and bottom, fan-ready
• Cable entry: top and bottom with brush strips
• Protection class: IP20
• Included accessories: 2 keys, mounting hardware

Why choose it

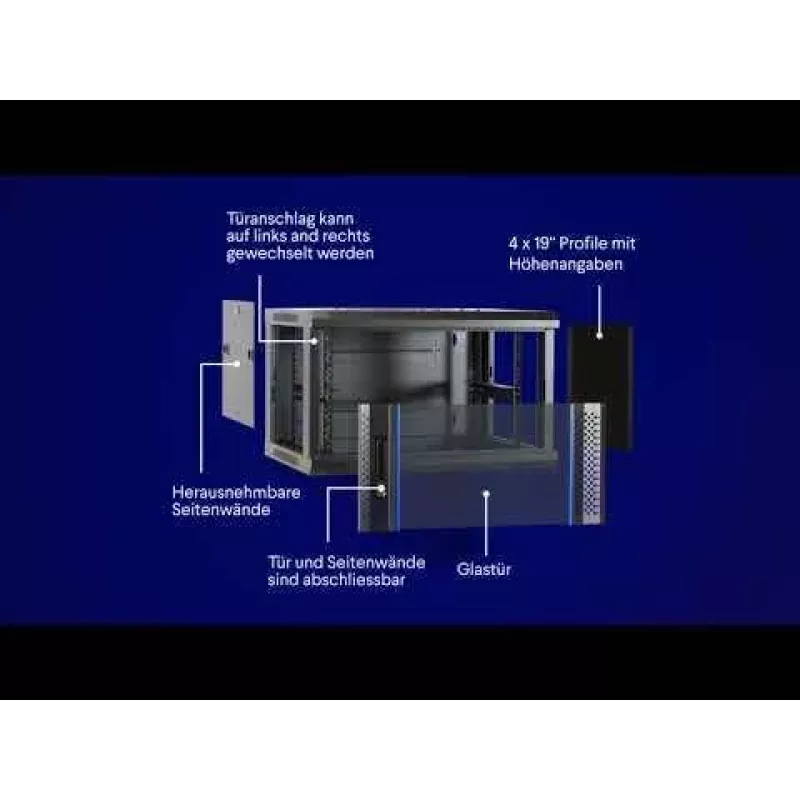

The DS6418W combines security and accessibility. The tempered-glass door lets you monitor indicator LEDs without opening the cabinet, while the lock restricts access to authorized personnel. Removable side panels simplify equipment installation and cable management. Adjustable mounting rails accommodate different equipment depths, and the white powder-coated finish resists scratches and corrosion, maintaining a professional appearance over time.

Ideal use cases

• Wall-mounting network switches and patch panels in small offices or retail environments.
• Securing compact servers or NAS devices in branch offices with limited floor space.
• Organizing AV or security equipment in classrooms, conference rooms, or control rooms.
• Creating a tidy, lockable IT point in workshops or light industrial areas.

Good to know

The cabinet is designed for indoor use (IP20) and should be mounted on a suitable wall structure capable of supporting the combined weight of the cabinet and equipment. The included hardware covers standard installation; for concrete or hollow walls, use appropriate anchors. The passive ventilation is adequate for most networking gear, but if you plan to install high-heat equipment, consider adding optional fan units in the pre-cut openings.
