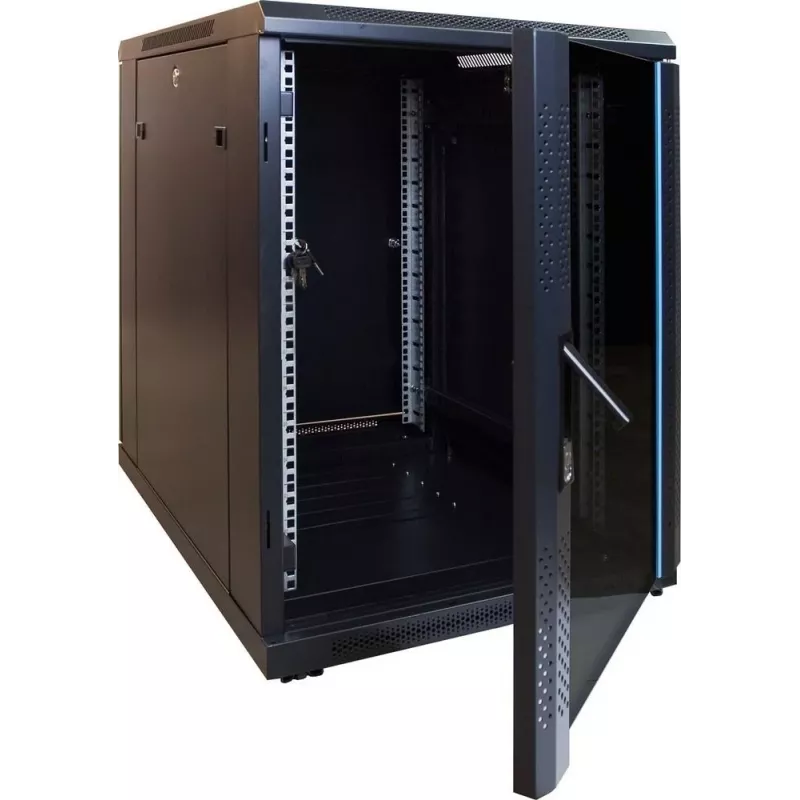

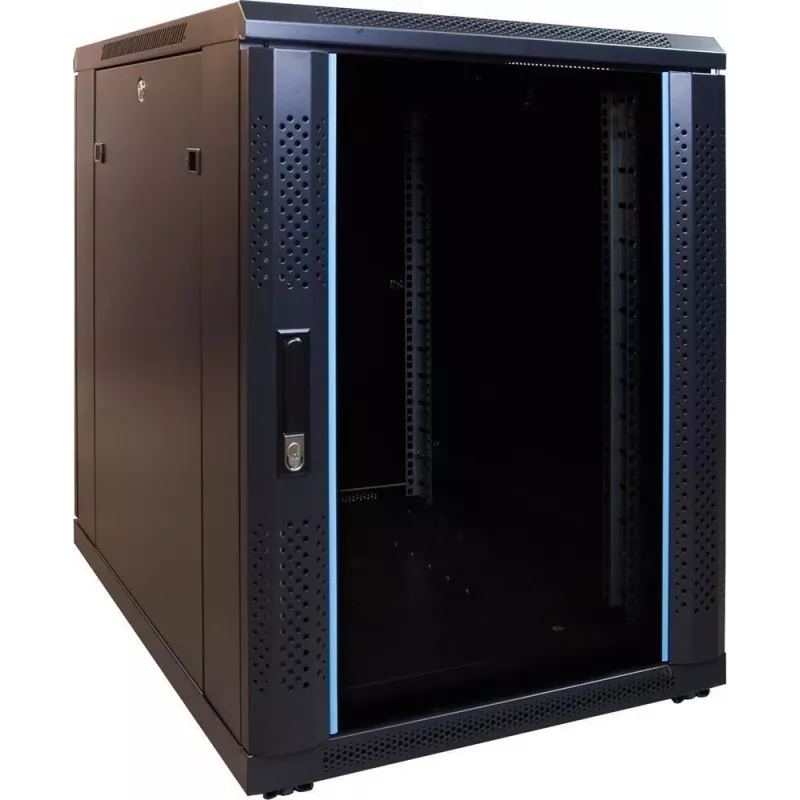

DSIT DS6815 15U 600x800mm wandmontage-serverkast met glazen deur, lichtgrijs

For network administrators and IT technicians who need to secure and organize active equipment in compact spaces, the DSIT DS6815 offers a 15U wall-mount enclosure with a lockable glass front door, removable side panels, and a robust welded steel frame. Its 600 mm width and 800 mm depth accommodate standard 19-inch servers, switches, and patch panels, while the 860 mm height fits neatly above doorways or in narrow corridors.

Key specifications

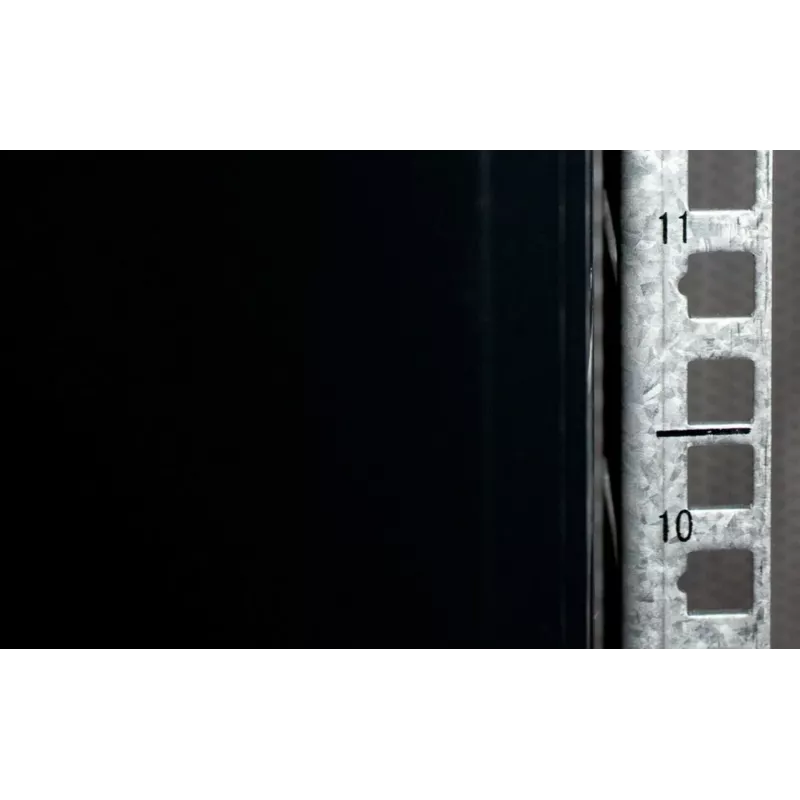

• 15U rack capacity with adjustable 19-inch mounting rails
• External dimensions: 600 mm width, 800 mm depth, 860 mm height
• Front door: single-section glass, lockable with key
• Rear door: single-section steel, lockable with key

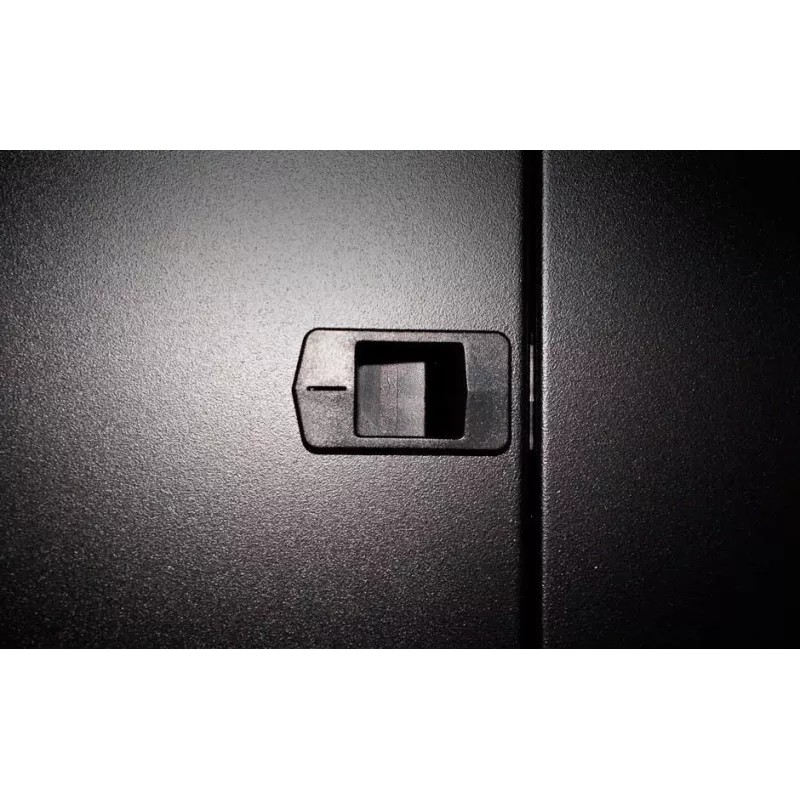

• Removable, lockable side panels for easy access
• Material: welded steel sheet, light grey (RAL 7035)
• Maximum static load capacity: 600 kg
• Protection rating: IP20
• Passive ventilation with top and bottom cable entry brush strips
• Adjustable leveling feet for uneven floors
• Pre-assembled for quick deployment
• Compliance: RoHS, CE

Why choose it

The DS6815 balances security and visibility: the tempered glass front door lets you monitor LED status at a glance without unlocking, while the steel rear door and lockable side panels prevent unauthorized access. The 600 kg load rating supports dense configurations of UPS units, servers, and storage arrays. Its light grey finish blends into office or light-industrial environments, and the brush strip cable entries keep dust out while allowing clean cable routing.

Ideal use cases

• Branch offices or retail back rooms with limited floor space
• Wall-mounted network closets for switches and patch panels
• Secure housing for edge computing nodes in factories or schools
• Small server rooms needing a compact, lockable enclosure

Good to know

The cabinet arrives fully assembled, saving setup time. The adjustable mounting rails support equipment depths from 245 mm to 740 mm, and the removable side panels allow multi-cabinet baying if needed. For active cooling, the top panel is prepared for optional fan units (not included). The IP20 rating means it is intended for indoor use only, away from dripping water or excessive dust.
