DSIT inbouw dubbele RJ45-bus, verticaal, Cat.6/Class E afgeschermd, ivoor

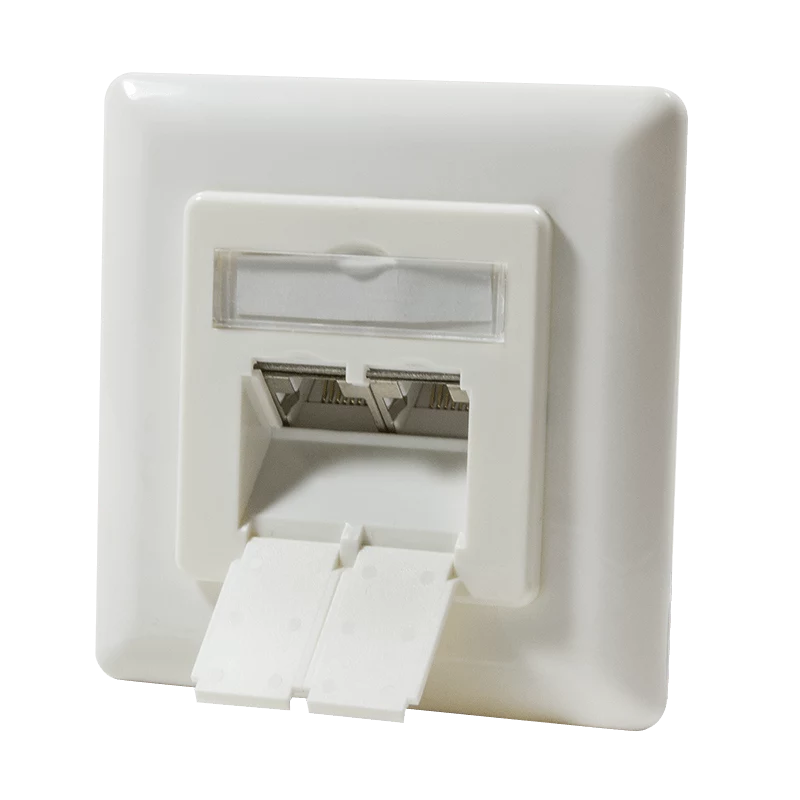

In a modern office, a network technician installs this dual RJ45 outlet into a standard flush-mount box behind a workstation. The vertical orientation keeps patch cables neat and accessible, while the ivory finish blends with light wall plates. It delivers reliable Gigabit Ethernet connectivity for two devices simultaneously.

Key specifications

• Category 6 / Class E performance, supporting up to 10 Gigabit Ethernet and 250 MHz bandwidth
• Shielded (STP) design with gold-plated contacts for superior signal integrity and corrosion resistance
• Two RJ45 ports with LSA+ (IDC) terminals, compatible with TIA/EIA 568A/B wiring
• Integrated dust protection shutters keep contacts clean when not in use
• Flush-mount (Unterputz) installation in standard boxes; vertical orientation
• Colour: Ivory (RAL 1013), housing material ABS plastic
• Backward compatible with Cat.5e and Cat.5 cabling
• Certifications: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Why choose it

This outlet is engineered for high-density network environments where performance and durability matter. Its shielded construction minimises electromagnetic interference, ensuring stable connections for bandwidth-intensive applications. The dual-port design saves space and installation time compared to two separate outlets.

Ideal use cases

• Office workstations requiring two wired network connections (PC and IP phone)
• Conference rooms and classrooms with multiple devices
• Home networks with smart TVs, gaming consoles, and NAS devices
• Industrial or commercial settings needing shielded cabling for EMI-heavy areas

Good to know

Installation requires a standard flush-mount box (not included). The LSA+ terminals allow tool-free or punch-down termination. The ivory colour coordinates with many wall plates, but the outlet can be used with frames from various manufacturers. Always verify cable category to achieve full Cat.6 performance.
