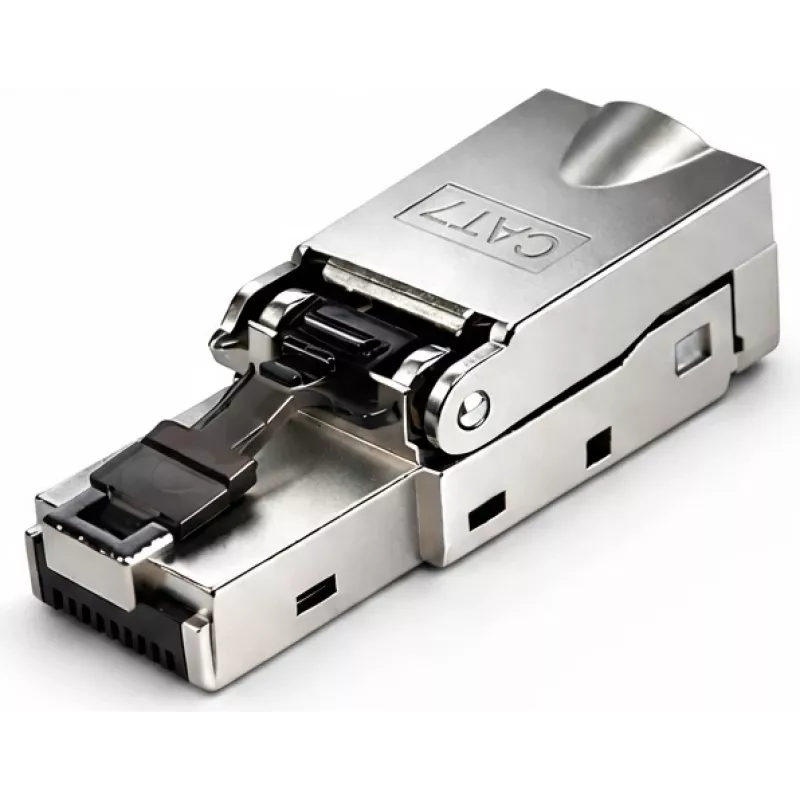

DSIT S/FTP CAT7 gereedschapsloze RJ45-stekker voor soepele kabel

Experience 10 Gigabit Ethernet performance with this DSIT S/FTP CAT7 toolless RJ45 connector, engineered for solid core cables and delivering up to 600 MHz bandwidth. The zinc die-cast nickel-plated housing and gold-plated contacts ensure reliable, high-speed data transmission in demanding environments.

Overview

The DSIT DC-RJ45-SFTP7S-PRO is a field-terminable RJ45 plug designed for Category 7 installations. It supports solid core conductors (22-24 AWG) with an outer cable diameter of 6.0-9.0 mm. The toolless design allows quick, secure terminations without special tools, making it ideal for both professional installers and DIY enthusiasts. The connector is reusable, reducing waste and cost.

What stands out

• Supports 10GBASE-T Ethernet up to 600 MHz
• S/FTP shielding for superior EMI/RFI protection
• Toolless termination – no crimping tool required
• Compatible with T568A and T568B wiring schemes
• Gold-plated contacts (50µm) for corrosion resistance
• PoE, PoE+, and PoE++ support up to IEEE 802.3bt
• Reusable for multiple terminations

Technical details

• Connector type: RJ45 (8P8C)
• Category: Cat7 (Category 7)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Installation method: Toolless (field terminable)
• Cable compatibility: Solid core cables (Starrleiter)
• Conductor gauge: 22-24 AWG
• Transmission speed: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 600 MHz
• Contact plating: Gold-plated (50µm)
• Housing material: Zinc die-cast (nickel-plated)
• Standards compliance: TIA/EIA 568-C.2, ISO/IEC 11801 Class F
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Wiring scheme: T568A / T568B (color-coded)
• Reusability: Yes
• Operating temperature: -10°C to +60°C
• Cable outer diameter compatibility: 6.0 - 9.0 mm
• Mating cycles: > 750

Our verdict

The DSIT S/FTP CAT7 toolless RJ45 connector is a robust, high-performance solution for Cat7 networks. Its toolless design saves time and effort, while the premium materials ensure long-term reliability. A top choice for 10G Ethernet deployments.
