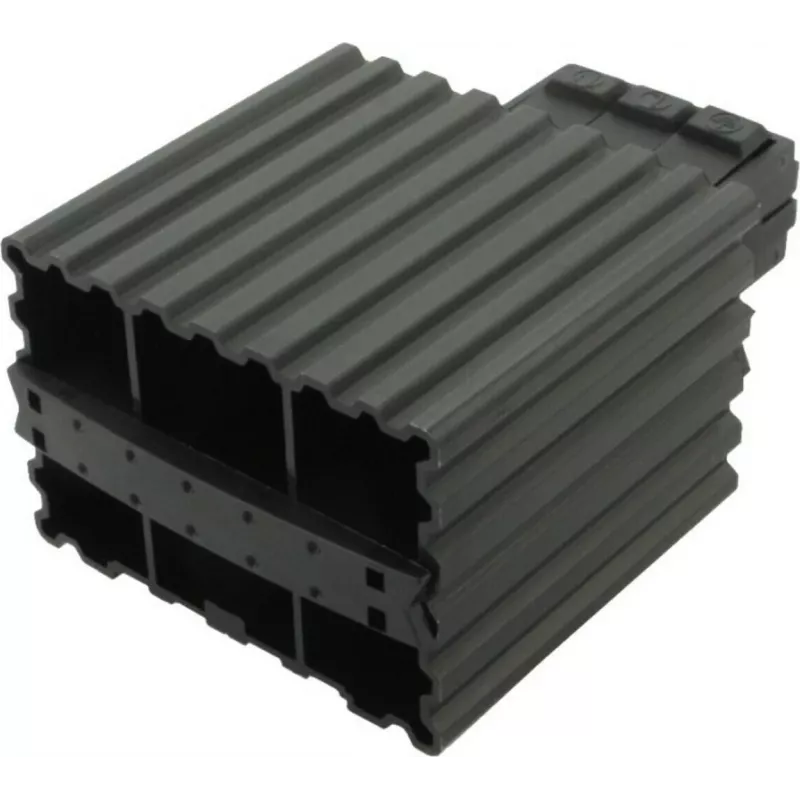

DSIT verwarmingselement voor buiten serverkasten 30W (DS-Heater-1)

Delivering 30 watts of self-regulating PTC heat, the DSIT DS-Heater-1 is engineered to protect outdoor server cabinets and industrial enclosures from condensation and temperature fluctuations, even in extreme conditions from -40°C to +70°C.

Overview

The DS-Heater-1 is a compact, robust heating solution designed specifically for outdoor server cabinets and industrial enclosures. Its PTC (Positive Temperature Coefficient) technology provides self-regulating heat output, automatically adjusting power consumption based on ambient temperature. This not only enhances energy efficiency but also eliminates the risk of overheating, making it a safe and dependable choice for maintaining optimal operating conditions.

What stands out

• Self-regulating PTC heating element ensures consistent temperature without manual adjustment.
• DIN rail mount allows for quick and secure installation in standard enclosures.
• Anodized aluminum housing offers durability and effective heat dissipation.
• Touch-safe design and over-temperature protection enhance safety.
• Operates across a wide temperature range from -40°C to +70°C, suitable for harsh outdoor environments.
• High energy efficiency due to PTC self-regulation, reducing operational costs.

Technical details

• Heating Power: 30 W
• Rated Voltage: 230 V AC
• Heating Technology: PTC (Positive Temperature Coefficient)
• Mounting Type: DIN Rail Mount
• Operating Temperature Range: -40°C to +70°C
• Temperature Control: Self-regulating
• Housing Material: Anodized Aluminum
• Connection Type: 2-pole Terminal Block
• Current Consumption: ~0.13 A (at 230V)
• Protection Class: IP20
• Humidity Resistance: Up to 95% RH (non-condensing)
• Safety Features: Over-temperature protection, Touch-safe housing
• Certifications: CE, RoHS Compliant
• Function: Condensation prevention, Temperature stabilization
• Expected Lifespan: >50,000 hours
• Installation Orientation: Vertical or Horizontal
• Energy Efficiency: High (due to PTC self-regulation)
• Design: Compact and Robust

Our verdict

The DS-Heater-1 is a reliable and efficient heating element for outdoor enclosures, offering self-regulating PTC technology and robust construction. Its DIN rail mount and wide operating temperature range make it a versatile choice for industrial applications.
