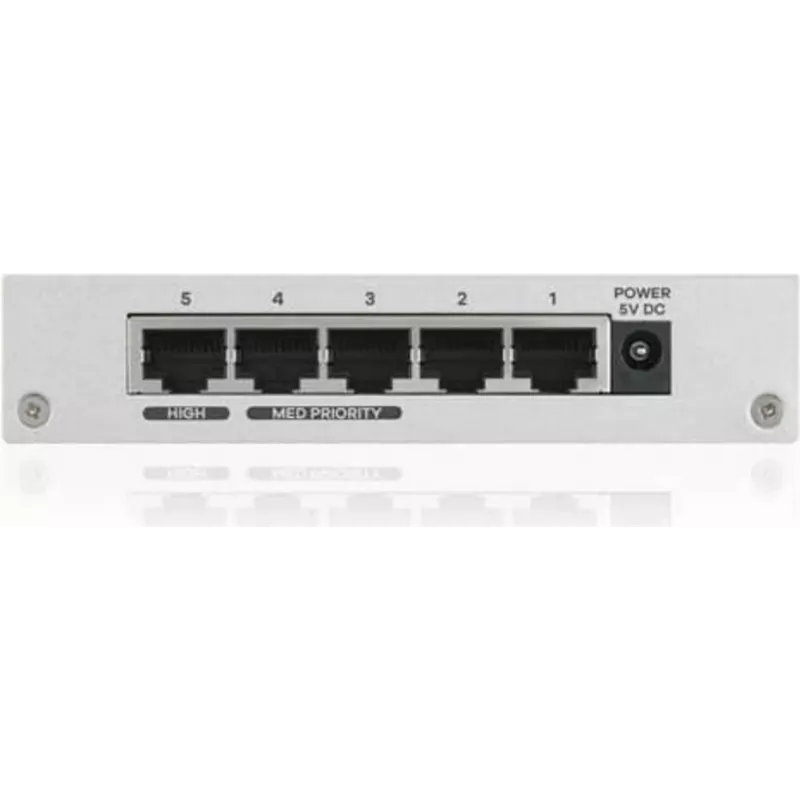

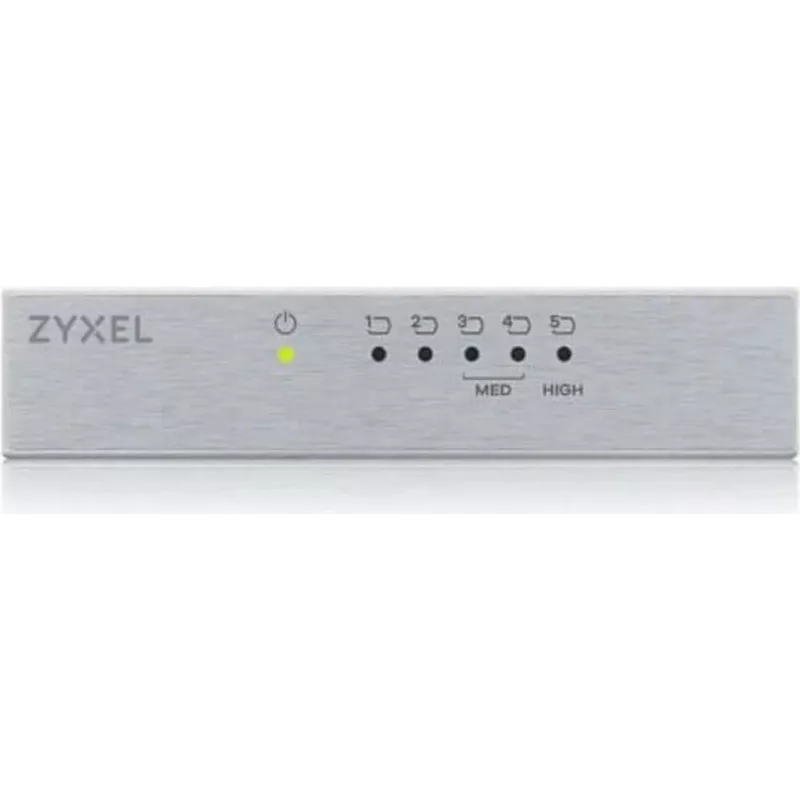

DSIT Zyxel GS105B 5-poorts Gigabit Ethernet unmanaged desktop-switch

Expanding a small office or home network often means dealing with slow file transfers, dropped connections, and the hassle of configuring complex switches. The DSIT Zyxel GS105B 5-Port Gigabit Ethernet Unmanaged Desktop Switch eliminates those frustrations with true plug-and-play simplicity and wire-speed performance on every port.

Who is it for

This switch is ideal for small businesses, workgroups, and home offices that need to connect up to five devices—such as computers, printers, NAS drives, and IP cameras—without any network management overhead. It is perfect for users who want reliable, high-speed connectivity without the need for technical expertise.

Main features

• Five Gigabit Ethernet ports with auto-negotiation (10/100/1000 Mbps) for high-speed data transfers.
• Unmanaged operation: no configuration required, simply connect your devices and power on.
• Fanless metal housing for silent operation and durability, suitable for desktop placement.
• Auto MDI/MDI-X on all ports eliminates the need for crossover cables.
• IEEE 802.3az Energy Efficient Ethernet reduces power consumption during low link utilization.
• Jumbo frame support up to 9 KB improves performance for large file transfers.
• Store-and-forward switching with a 10 Gbps switching capacity and 2K MAC address table ensures smooth traffic handling.
• LED indicators for power and link/activity provide at-a-glance status monitoring.

Specifications

• Brand: DSIT
• Model: VA-GS-105B
• MPN: VA-GS-105B
• EAN: 5051964764618
• Switch type: Unmanaged
• Number of ports: 5
• Port speed: 10/100/1000 Mbps
• Switching capacity: 10 Gbps
• MAC address table: 2000 entries
• Jumbo frame support: Yes, up to 9 KB
• Standards compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
• Flow control: IEEE 802.3x (full-duplex)
• Auto MDI/MDI-X: Yes
• Power over Ethernet (PoE): No
• Fanless design: Yes
• Energy Efficient Ethernet: Yes (IEEE 802.3az)
• Power supply: External power adapter
• Mounting type: Desktop
• Housing material: Metal
• LED indicators: Power, Link/Activity

Tips

To maximize performance, connect bandwidth-intensive devices like NAS or media servers directly to the switch. Use Cat5e or better cables to ensure Gigabit speeds. Place the switch on a flat, stable surface with adequate ventilation, even though it is fanless. For a tidy setup, consider using short patch cables and cable management accessories.
