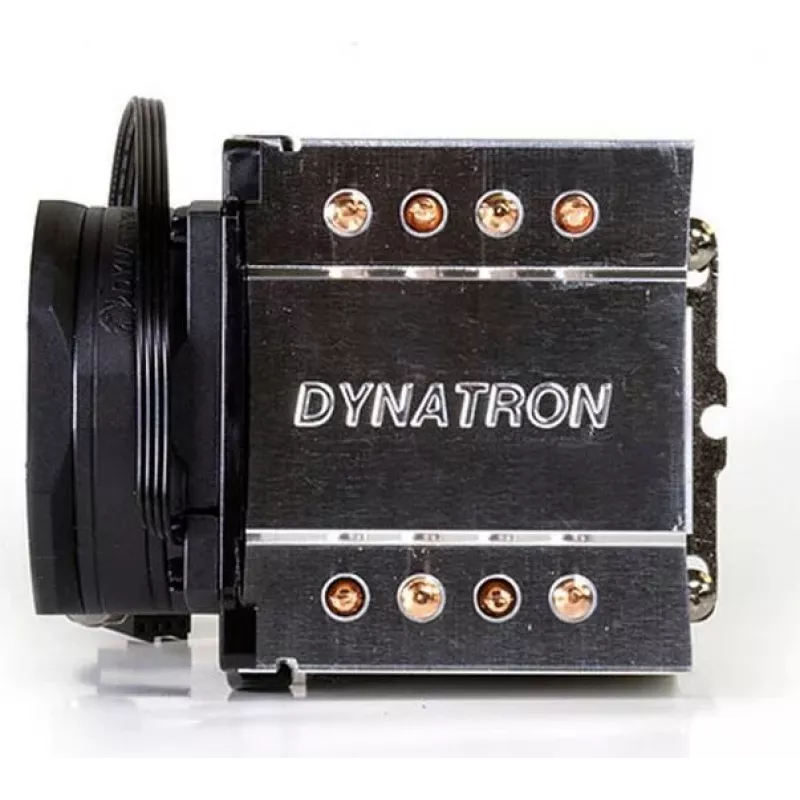

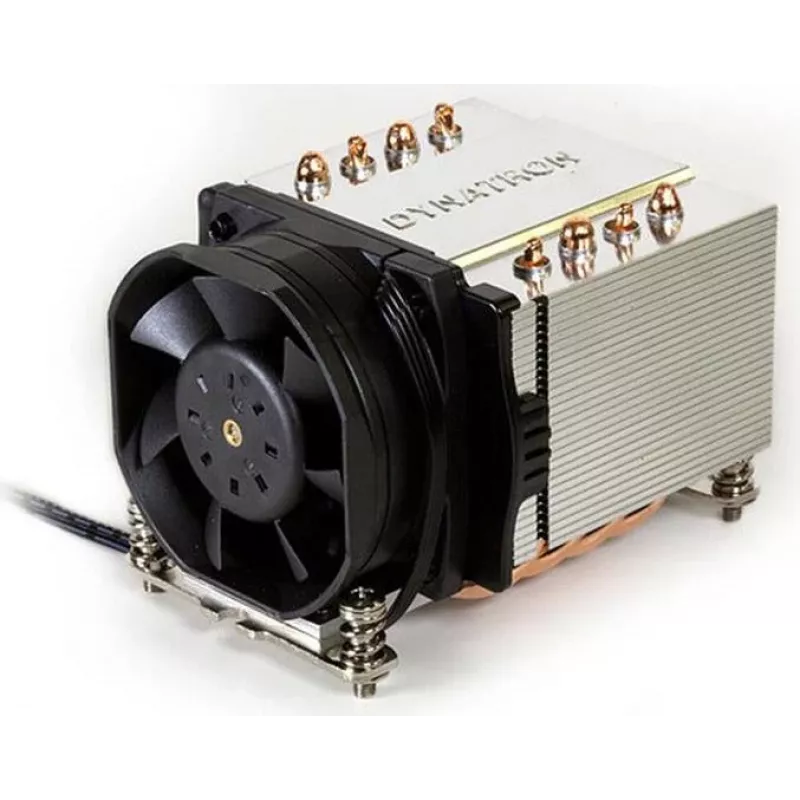

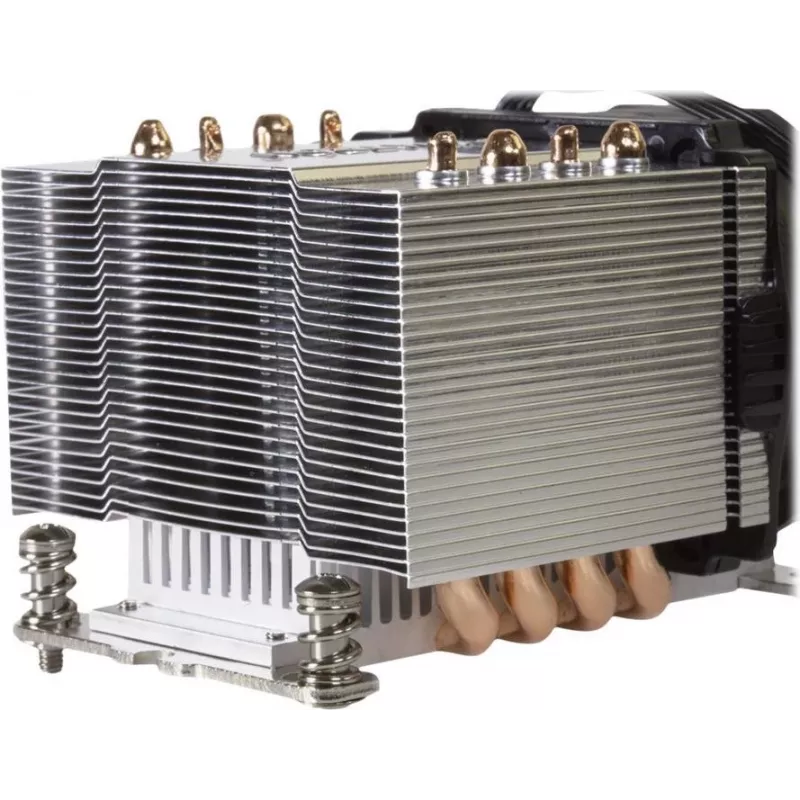

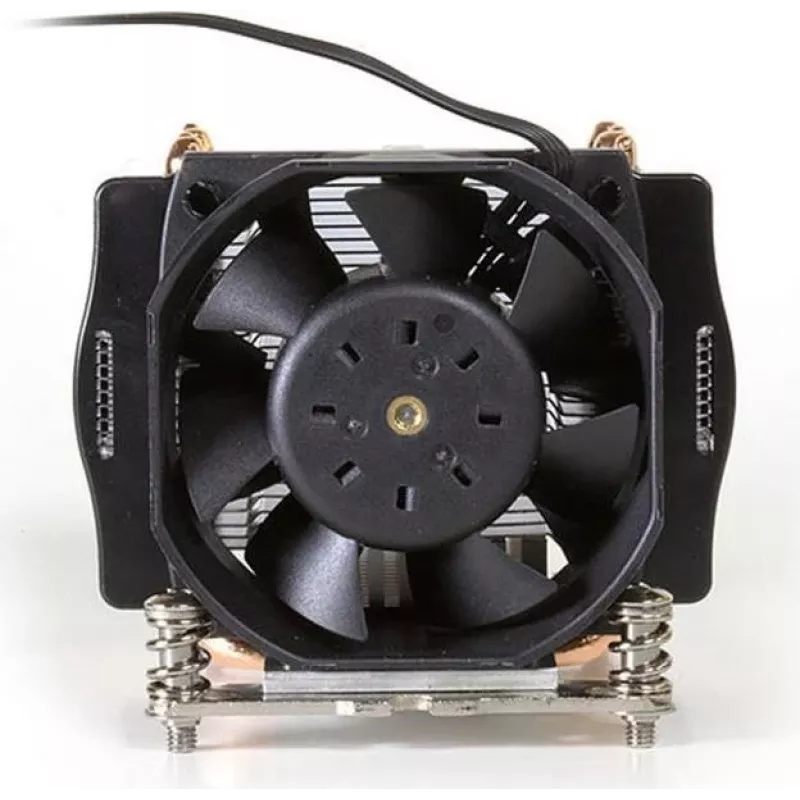

Dynatron A-24 Actieve CPU-koeler 2U 60mm voor AMD AM4/AM5

The Dynatron A-24 is a high-performance active CPU cooler designed specifically for 2U rackmount servers. It provides efficient cooling for AMD AM4 and AM5 processors, ensuring stable operation even under heavy workloads. With a compact 60mm fan and aluminum heatsink with copper base, it delivers reliable thermal management in space-constrained environments.

Advantages

Optimized for 2U chassis, the A-24 offers excellent cooling performance with a low-profile design. The PWM-controlled fan (1000-5000 RPM) adjusts speed based on temperature, balancing airflow and noise. Hydraulic bearing ensures long lifespan and quiet operation. Easy installation with included mounting kit for AM4/AM5 sockets.

Suitable for

• AMD AM4 and AM5 processors (Ryzen, EPYC)
• 2U rackmount servers and workstations
• Applications requiring efficient cooling in limited space

Key specifications

• Cooler Type: Active CPU Cooler
• Socket Compatibility: AMD AM4, AM5
• Form Factor: 2U Rackmount
• Fan Dimensions: 60 x 60 x 25 mm
• Fan Speed: 1000 - 5000 RPM (PWM)
• Max. Airflow: 38.5 CFM
• Max. Noise Level: 38.0 dBA
• Bearing Type: Hydraulic Bearing
• Connector: 4-Pin PWM
• Heatsink Material: Aluminum fins with copper base
• Max. TDP Support: 105W
• Rated Voltage: 12V DC
• Rated Current: 0.2A
• Power Consumption: 2.4W

Recommendations

For optimal performance, ensure proper airflow in your chassis. The A-24 is ideal for 2U servers where space is at a premium but cooling demands are high.
