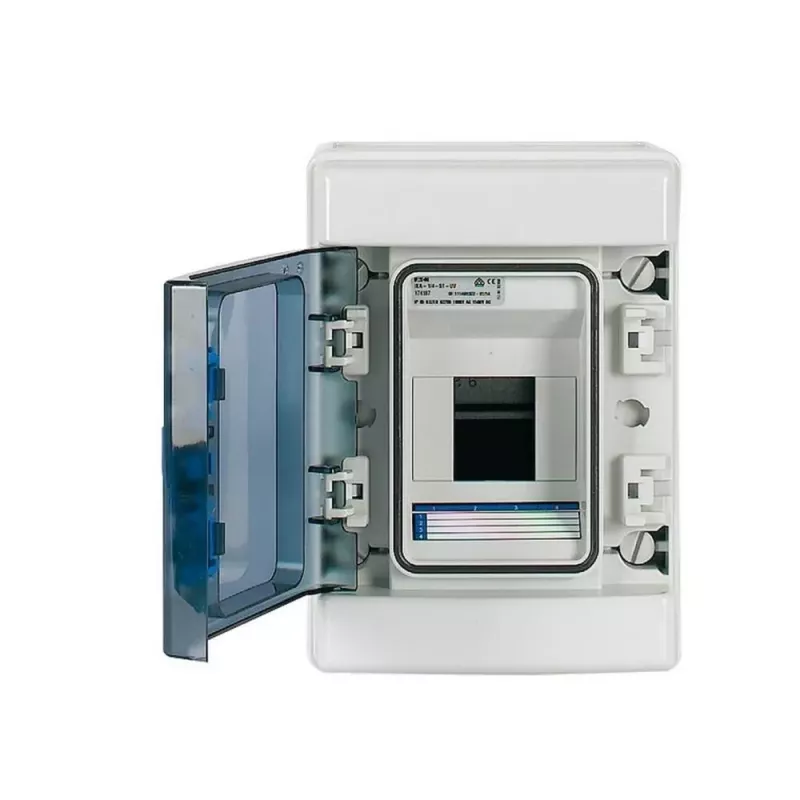

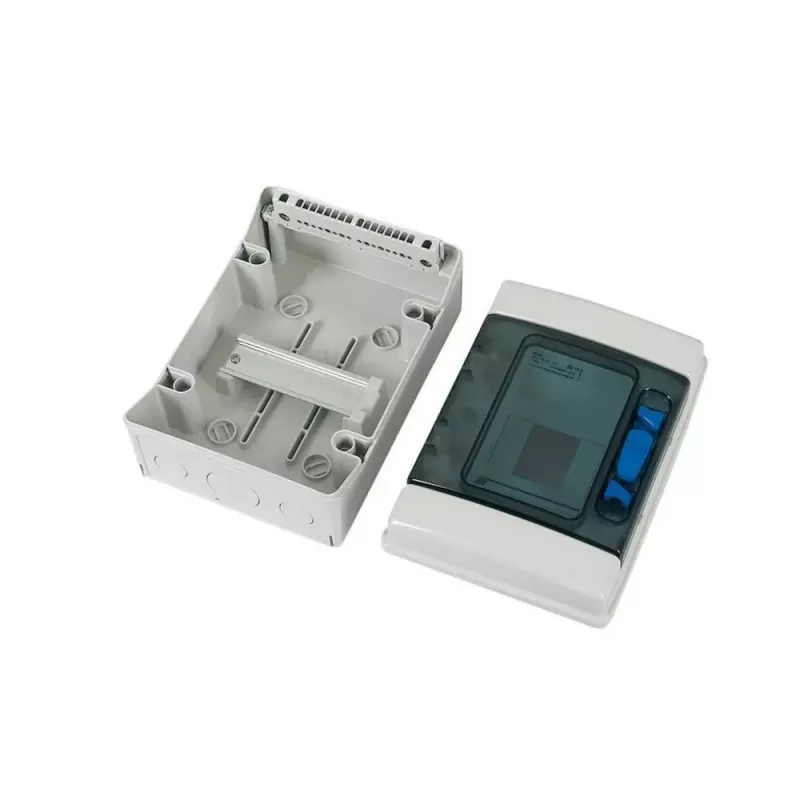

Eaton 174221 IKA-1/4-ST opbouw kleinverdeler, 4 modules, 1 rij, IP65, grijs

For electricians and facility managers installing a compact, weather-resistant distribution point in workshops, garages, or outdoor areas, the Eaton IKA-1/4-ST provides a surface-mounted enclosure for up to 4 modular devices in a single row. Its transparent door allows quick visual inspection of installed components, while the grey polycarbonate housing withstands impact and UV exposure.

Key specifications

• Mounting type: Surface-mounted
• Number of modules: 4
• Number of rows: 1
• IP protection rating: IP65
• Insulation class: II (double insulated)
• Material: Polycarbonate
• Door type: Transparent
• Colour: Grey (RAL 7035)
• Rated operational voltage: 400 V AC
• Glow wire test: 650 °C
• Operating temperature range: -25 to +40 °C
• PE/N terminals: Included
• Impact resistance: IK08
• Halogen-free: Yes
• UV resistant: Yes
• Standards compliance: IEC/EN 62208, IEC/EN 61439-3

Why choose it

The IKA-1/4-ST combines a compact footprint with robust protection. Its double-insulated, halogen-free polycarbonate enclosure is suitable for demanding environments, and the transparent door simplifies maintenance checks without opening the enclosure.

Ideal use cases

• Outdoor electrical distribution points requiring weatherproofing
• Workshop or garage sub-distribution for a few circuits
• Industrial control panels needing a small, impact-resistant housing

Good to know

The enclosure includes PE/N terminals for straightforward wiring. It is designed for surface mounting and complies with relevant IEC/EN standards for empty enclosures and low-voltage switchgear assemblies.
