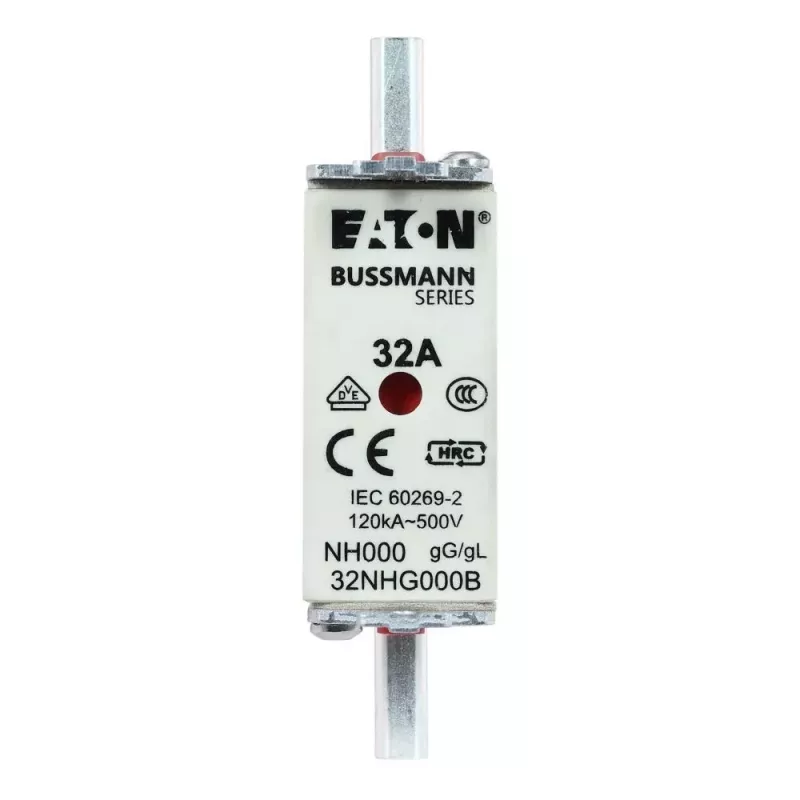

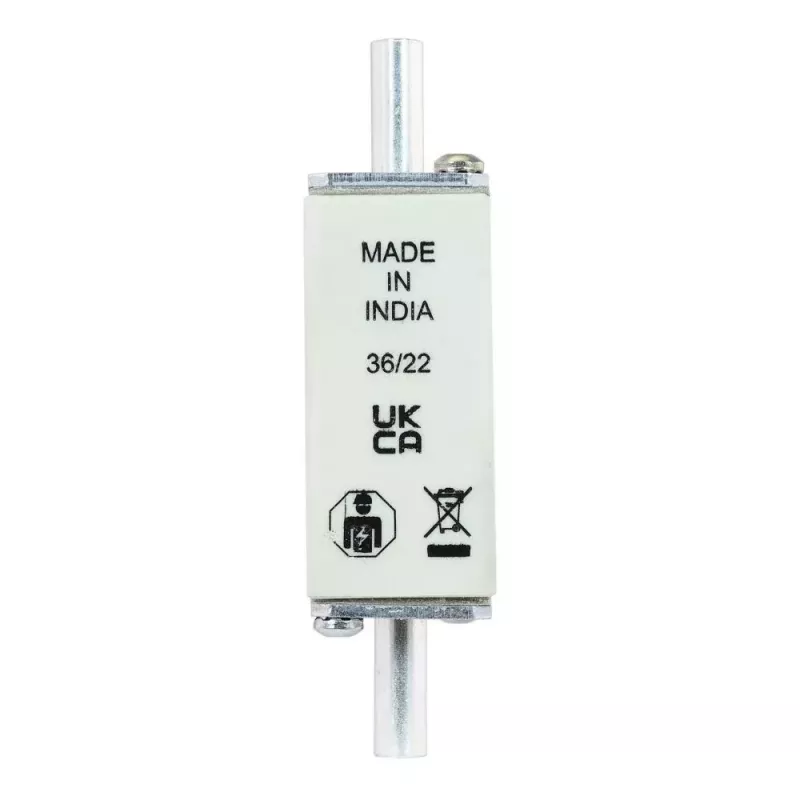

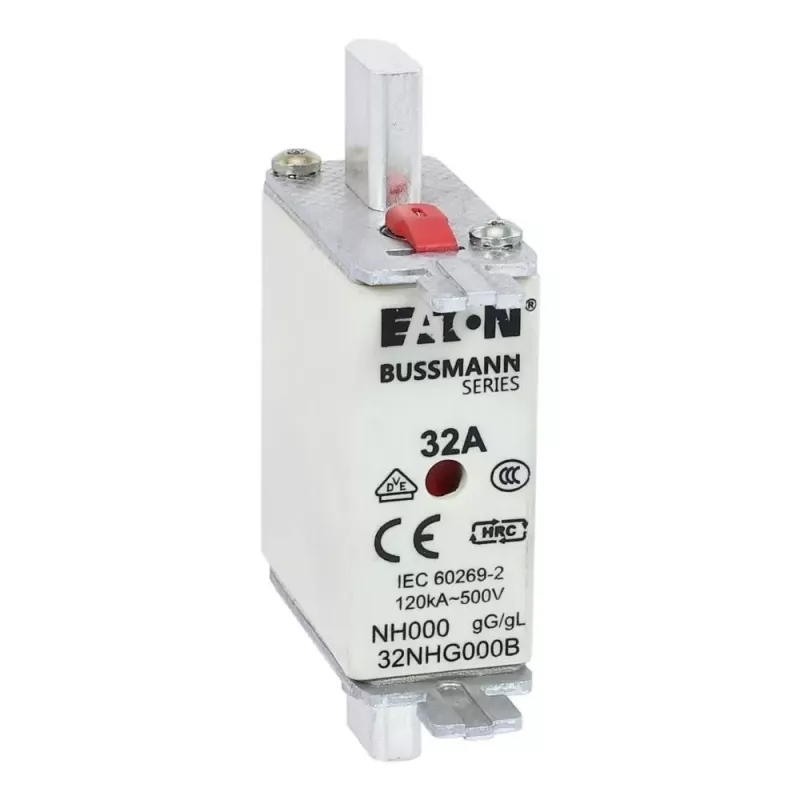

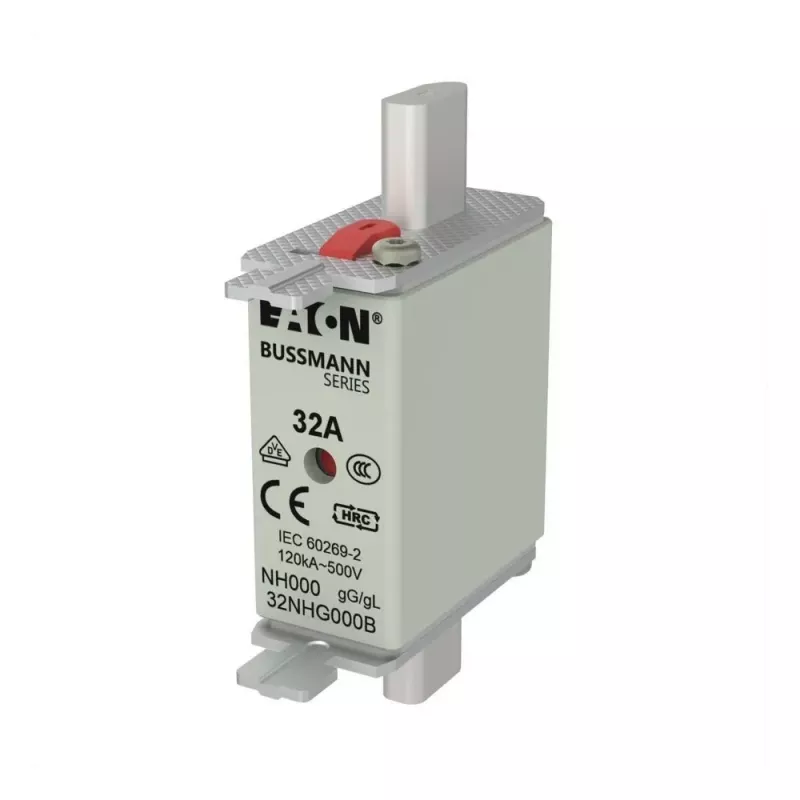

Eaton 32NHG000B NH-zekeringpatroon met mechanische indicator, 32 A, 500 V AC, maat 000, gG, 3-pack

Protect cables and lines from overload and short-circuit currents with the Eaton 32NHG000B NH fuse-link. This 32 A, 500 V AC fuse in size 000 features a mechanical indicator that clearly shows when the fuse has operated, simplifying maintenance and reducing downtime.

Who is it for

Electrical installers, panel builders, and maintenance technicians who need reliable, general-purpose protection for low-voltage distribution systems. It fits standard NH fuse bases and is ideal for industrial and commercial applications.

Main features

• Rated current 32 A, rated voltage 500 V AC
• Operating class gG for general cable and line protection
• Mechanical fuse indicator for quick status identification
• High breaking capacity of 120 kA for safe interruption of fault currents
• Ceramic body with silver-plated copper contacts for durability
• Supplied in a pack of 3 fuses

Specifications

• Fuse type: NH fuse-link
• Fuse size: 000
• Rated current: 32 A
• Rated voltage: 500 V AC
• Operating class: gG
• Breaking capacity: 120 kA
• Indicator type: Mechanical
• Frequency: 50/60 Hz
• Body material: Ceramic
• Contact material: Silver-plated copper
• Mounting style: Blade contact
• Standard compliance: IEC 60269
• Quantity per pack: 3

Tips

Always de-energize the circuit before replacing fuses. Use with compatible NH fuse bases and holders. Keep spare fuses on hand to minimize downtime.
