Eaton 4K10180MMK3 aandrijfas 180mm 10x10mm K3 1319315

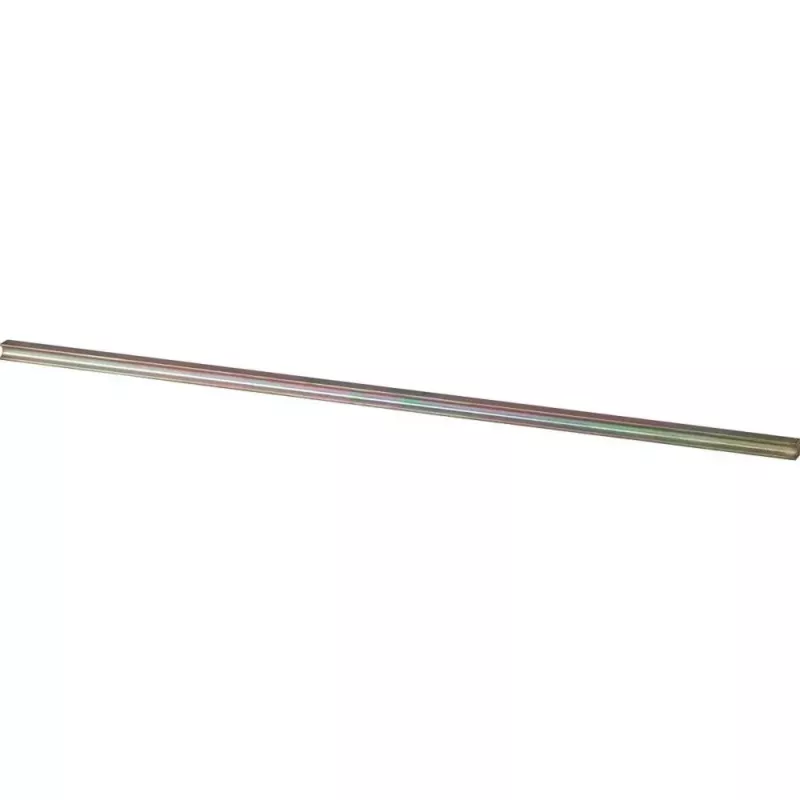

Rotary actuators and switch disconnectors in K-Series installations require a reliable connection between the operating handle and the switching mechanism. The Eaton 4K10180MMK3 drive shaft provides that link with a square 10 x 10 mm profile and a length of 180 mm, machined from steel for durability in industrial environments.

Who is it for

Panel builders and maintenance technicians working with Eaton K3 switch disconnectors or rotary actuators who need a replacement or spare drive shaft. It suits installations where the handle is mounted on a panel door or front plate and must transmit rotary motion to the switch body.

Main features

• Square cross-section 10 x 10 mm fits standard K3 actuator interfaces
• Length 180 mm covers typical panel depths
• Steel construction withstands mechanical stress
• Designed for front panel mounting of rotary actuators

Specifications

• Product type: Drive shaft / actuator shaft
• Compatibility: Eaton K-Series (K3)
• Shaft length: 180 mm
• Shaft cross-section: 10 x 10 mm (square profile)
• Material: Steel
• Operating temperature range: -25°C to +55°C
• Colour: Metallic

Tips

Verify the required shaft length before ordering; this 180 mm shaft suits many standard panel depths but may need cutting for very shallow enclosures. Ensure the handle and switch are both K3 type to match the square profile.
