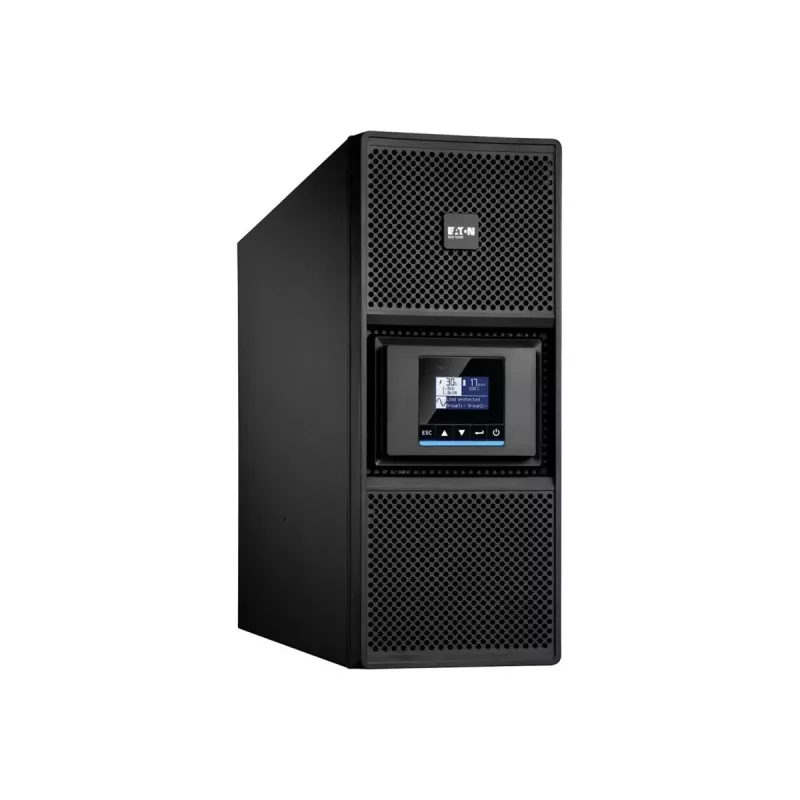

EATON 9SX 11000i G2 11000VA 11000W online dubbelconversie UPS tower/rackmount 10U

The Eaton 9SX 11000i G2 is a high-performance online double conversion UPS designed to provide reliable, clean power for critical IT infrastructure, industrial equipment, and data centers. With 11000 VA / 11000 W capacity and unity power factor, it delivers maximum efficiency and protection against power disturbances. Its convertible tower/rackmount form factor (10U) offers flexible installation options.

Advantages

• True online double conversion topology ensures zero transfer time and complete isolation from utility power anomalies.
• Unity power factor (1.0) delivers full real power output, maximizing the usable capacity for modern IT loads.
• High efficiency up to 95% in online mode and up to 98% in high-efficiency mode reduces energy costs and heat generation.
• Eaton ABM® battery management technology extends battery life by optimizing charging cycles.
• Hot-swappable, user-replaceable batteries simplify maintenance and minimize downtime.
• Scalable runtime with support for up to four external battery modules (EBMs).
• Graphical LCD display provides clear status information and easy configuration.

Suitable for

• Data centers and server rooms requiring high-density power protection
• Industrial automation and control systems
• Medical imaging and diagnostic equipment
• Telecommunications infrastructure
• Network closets and edge computing sites

Key specifications

• UPS Topology: Online Double Conversion
• Apparent Power: 11000 VA
• Real Power: 11000 W
• Power Factor: 1.0
• Input Voltage Range: 200-276 V AC (without derating)
• Output Voltage: 200/208/220/230/240 V AC (configurable)
• Output Waveform: Pure Sine Wave
• Input Connection: Hardwired (Terminal Block)
• Output Connections: Hardwired (Terminal Block)

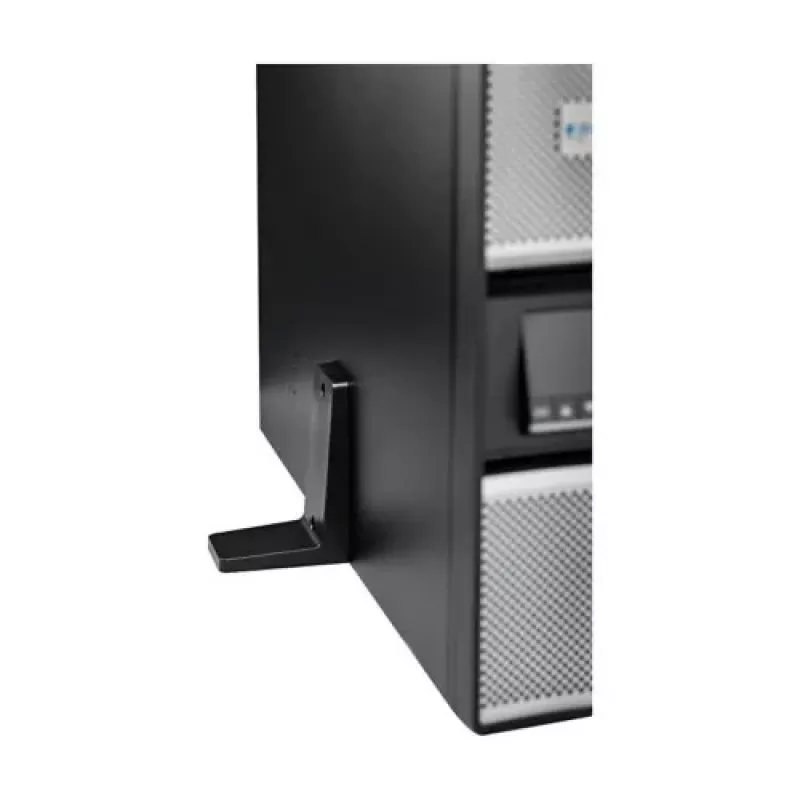

• Form Factor: Tower / Rackmount (10U) Convertible
• Efficiency (Online Mode): Up to 95%
• Efficiency (High-Efficiency Mode): Up to 98%
• Battery Type: Sealed Lead-Acid, Hot-swappable
• Battery Management: Eaton ABM® Technology
• Communication Ports: 1x USB, 1x Serial (RS232), 1x Relay output, RPO, EPO
• Expansion Slots: 1 (for optional Network-M2 card)
• Display Type: Graphical LCD with blue backlight
• Noise Level: <50 dB at 1 meter
• Typical Runtime (Full Load): 4 minutes (internal batteries)
• Scalability: Supports up to 4 external battery modules (EBMs)

Recommendations

For extended runtime, pair with Eaton 9SX EBM (external battery module). For remote monitoring, install the optional Network-M2 card. This UPS is ideal for mission-critical applications where power quality and reliability are paramount.
