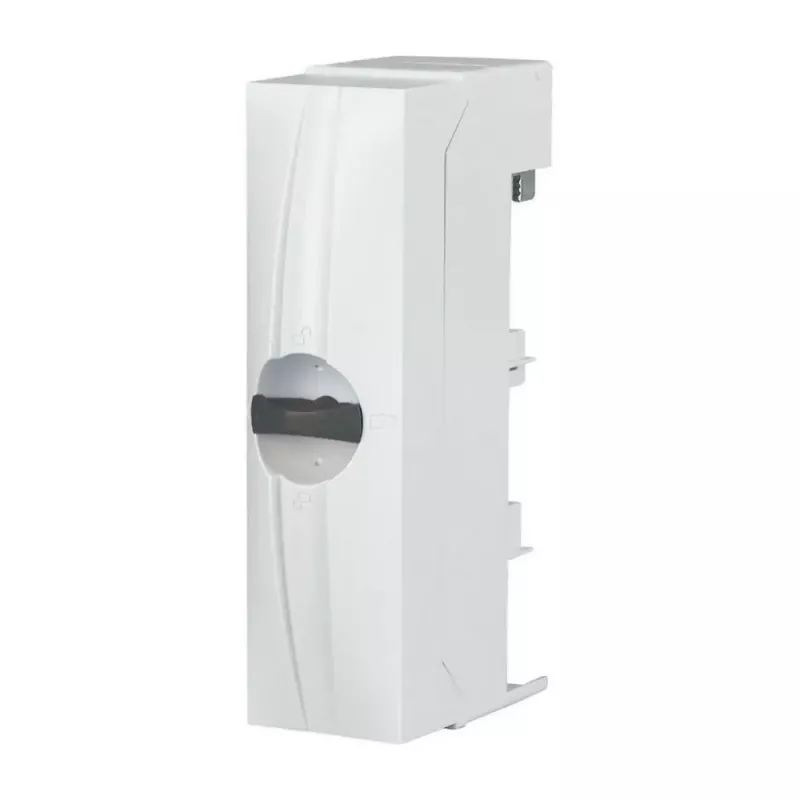

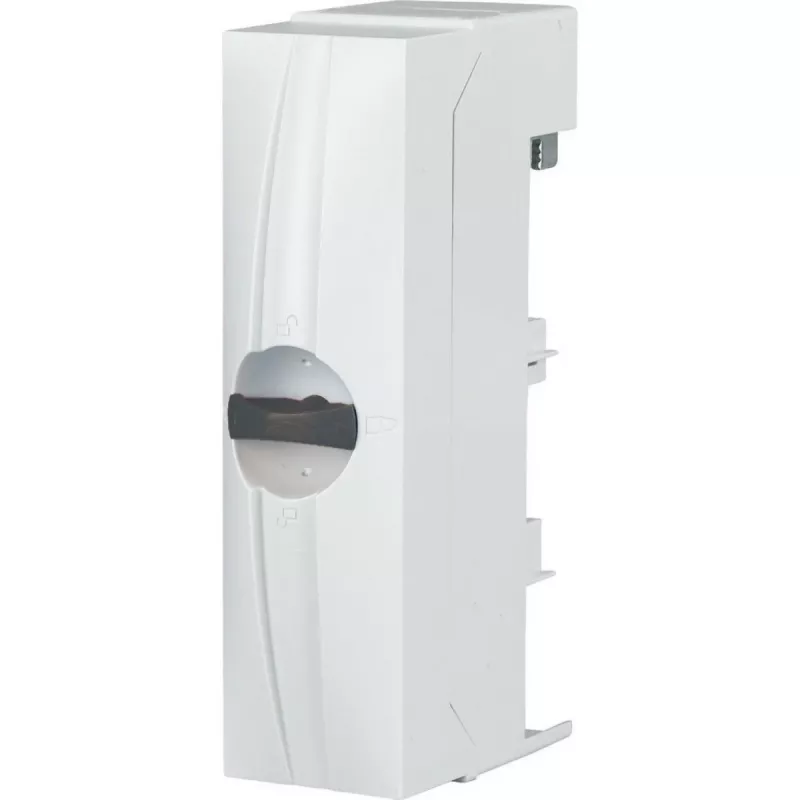

Eaton BBA-TP3/50 aansluitklemmenplaat, 3-polig, 6-50 mm², 125 A, 690 V, grijs 107183

Electricians and panel builders use the Eaton BBA-TP3/50 connection terminal plate to distribute power within switchgear and control panels. This 3-pole terminal plate provides a reliable connection point for main and branch conductors, simplifying wiring and reducing installation time.

Key specifications

• Main conductor cross-section: 6 - 50 mm² (rigid and flexible)
• Branch conductor cross-section: 1.5 - 16 mm² (rigid and flexible)
• Number of branch connections per pole: 2
• Rated current: 125 A
• Rated voltage: 690 V AC
• Mounting: DIN rail (35 mm) or screw mounting
• Connection type: Screw terminal
• Material: Polyamide (PA), grey
• Operating temperature: -25 to +70 °C

Why choose it

The BBA-TP3/50 offers a robust and space-efficient solution for power distribution. Its screw terminals accommodate a wide range of conductor sizes, and the dual branch connections per pole allow flexible wiring configurations. The polyamide housing provides durability and insulation.

Ideal use cases

• Power distribution in industrial control panels
• Connecting main feeders to branch circuits in switchgear
• Retrofit and new installations requiring high-current terminal blocks

Good to know

The terminal plate is designed for use in accordance with IEC/EN 60947-7-1. It is suitable for ambient temperatures from -25 °C to +70 °C, making it versatile for various industrial environments.
