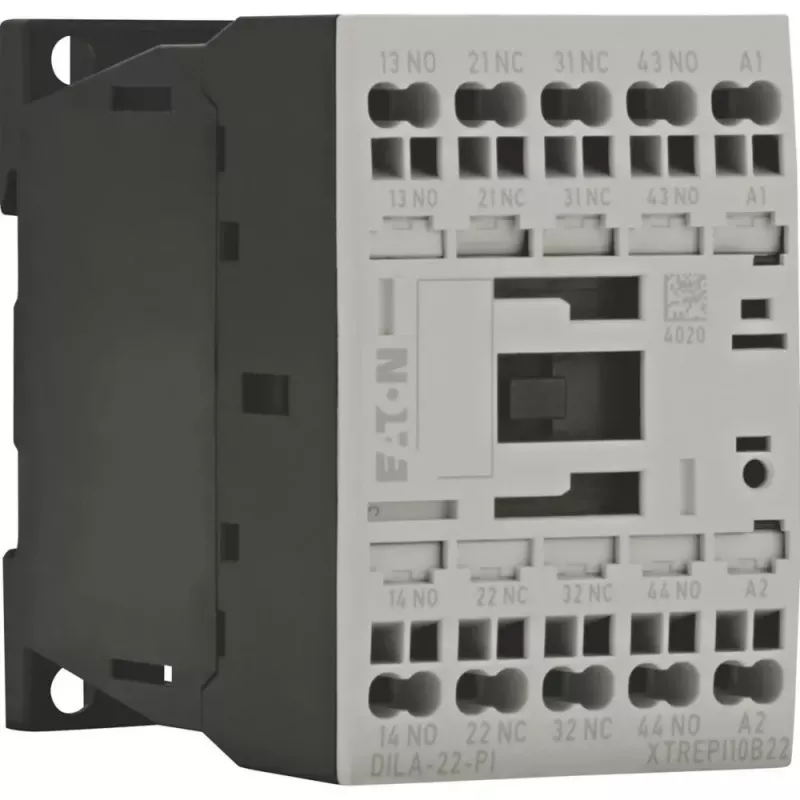

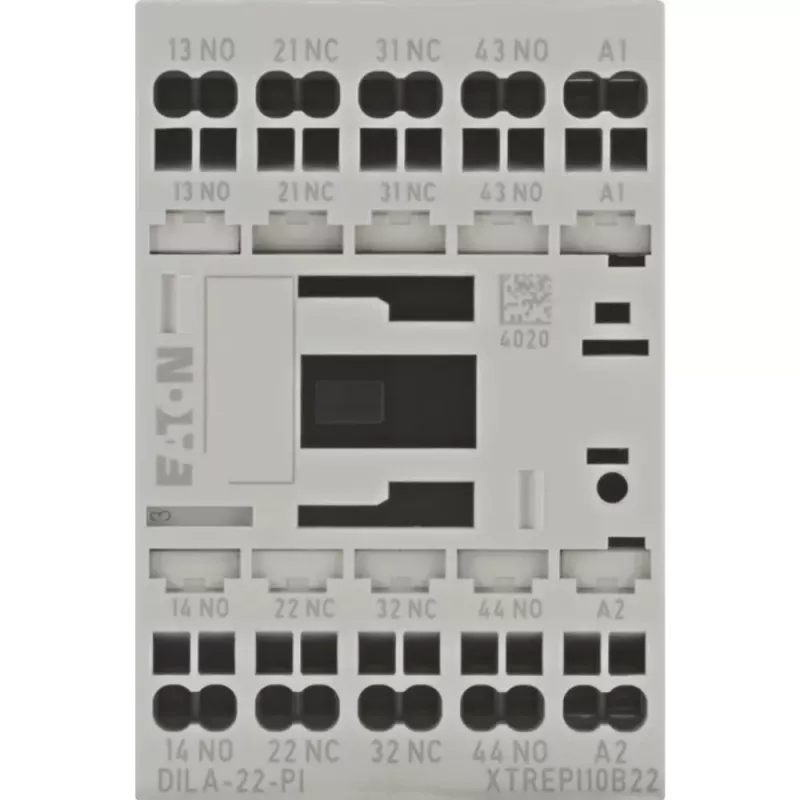

EATON DILA-22(24VDC)-PI hulprelais, 24 V DC spoel, 2NO+2NC, push-in aansluitingen 199218

The EATON DILA-22(24VDC)-PI auxiliary contactor stands out with its push-in terminal technology, which speeds up wiring and reduces installation time compared to traditional screw terminals. With a 24 V DC coil and a 4-pole configuration (2 normally open and 2 normally closed contacts), it is suited for control circuits in industrial applications.

Highlights

• Coil voltage: 24 V DC
• Contact configuration: 2 NO + 2 NC
• Push-in terminals for tool-free wiring
• Rated insulation voltage: 690 V
• Mounting on DIN rail or screw

In daily use

This contactor is designed for switching auxiliary circuits and control signals. The push-in terminals accept solid or ferruled conductors, ensuring a secure connection without the need for torque screwdrivers. Its compact size allows for high-density panel layouts.

Full specifications

• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-15): > 1.5 x 10^6 operations
• Mechanical life: > 10 x 10^6 operations
• Standards: IEC/EN 60947, VDE 0660

Final note

The DILA-22(24VDC)-PI is a reliable choice for control circuit switching, combining ease of installation with proven EATON performance.
