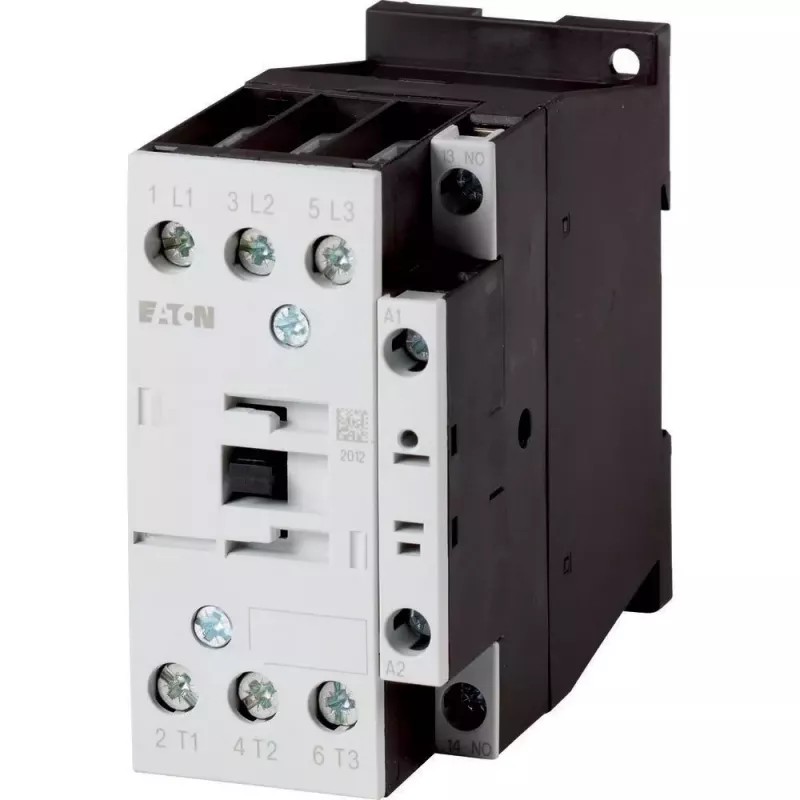

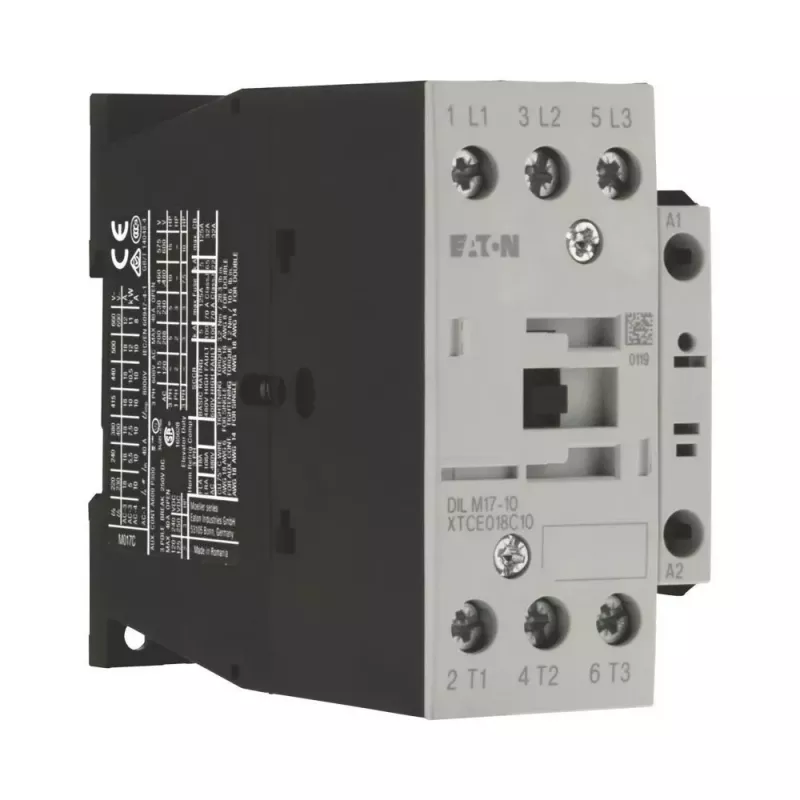

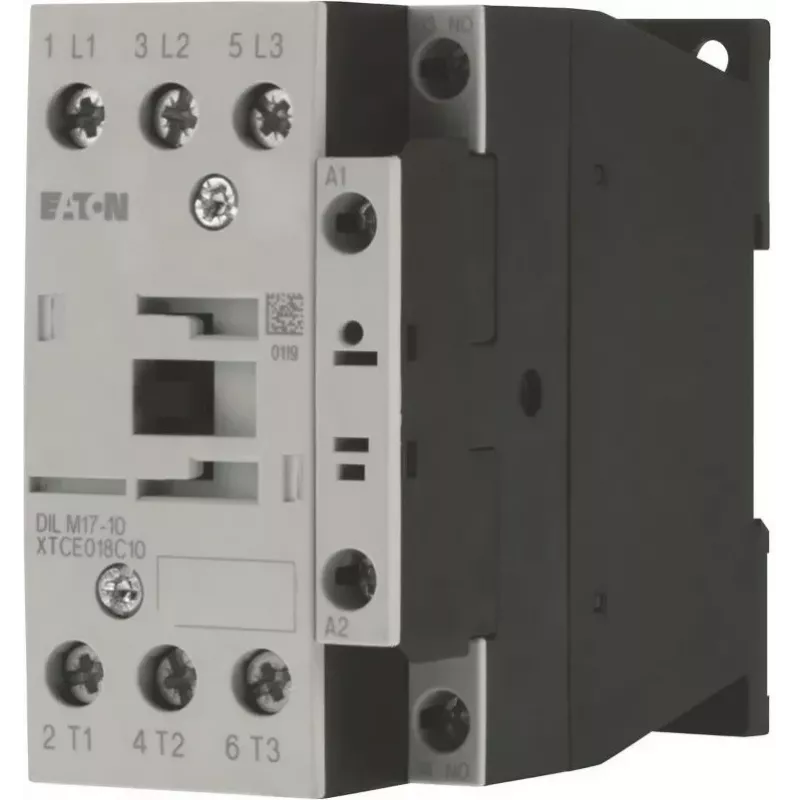

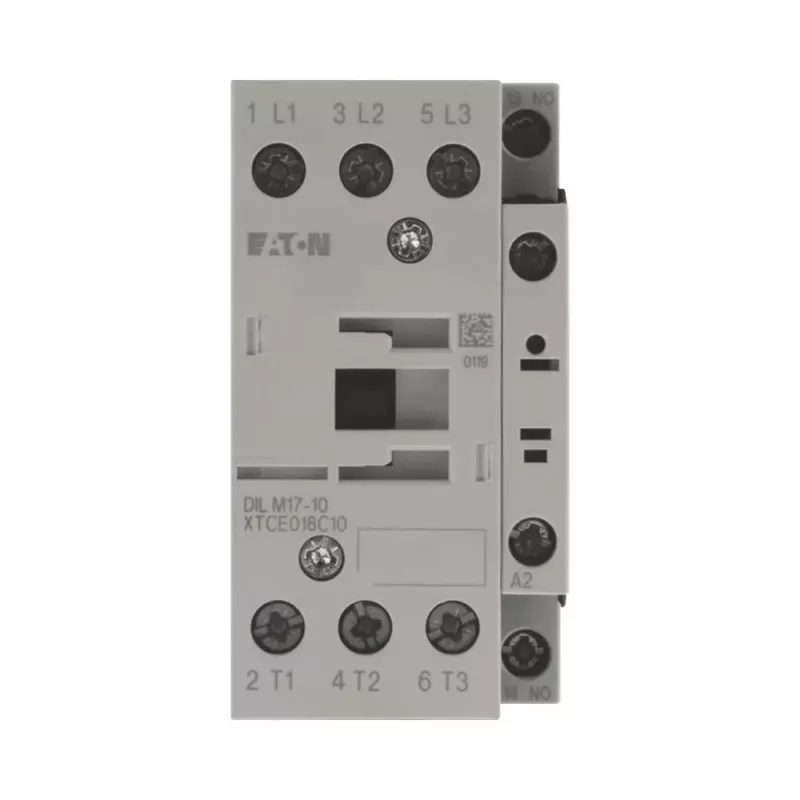

EATON DILM17-10 24V AC 50/60Hz vermogenscontactor, 3-polig, 17A AC-3, 1NO hulpcontact 277008

Rated for 17 A at AC-3 (400 V) and 7.5 kW of motor power, the EATON DILM17-10 power contactor handles switching tasks up to 690 V insulation voltage with a 3-pole main circuit and a 1 NO auxiliary contact. The 24 V AC coil operates at 50/60 Hz, making it suitable for a wide range of industrial control applications.

Overview

The DILM17-10 is a compact, DIN rail or screw mountable contactor from EATON's DILM series. It provides three normally open main poles for switching three-phase loads and an additional normally open auxiliary contact for control or signaling. With screw terminals and IP20 protection, it is designed for installation in enclosed control panels.

What stands out

• High switching capacity: 17 A at AC-3, 400 V, and 32 A at AC-1.
• Wide voltage range: coil accepts 24 V AC at 50/60 Hz.
• Robust design: rated impulse withstand voltage of 6 kV and insulation voltage of 690 V.
• Flexible mounting: DIN rail (35 mm) or screw mounting.
• Compact footprint with screw terminals for secure wiring.

Technical details

• Number of poles: 3
• Main contact configuration: 3 NO
• Auxiliary contact configuration: 1 NO
• Coil voltage: 24 V AC
• Coil frequency: 50/60 Hz
• Rated operational current (AC-3, 400 V): 17 A
• Rated operational current (AC-1, 400 V): 32 A
• Rated operational power (AC-3, 230 V): 5.5 kW
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN Rail (35mm) / Screw Mounting
• Terminal type: Screw Terminals
• Protection degree: IP20
• Ambient operating temperature: -25 to +60 °C

Our verdict

A reliable and versatile power contactor for motor control and switching applications, offering solid performance in a compact form factor.
