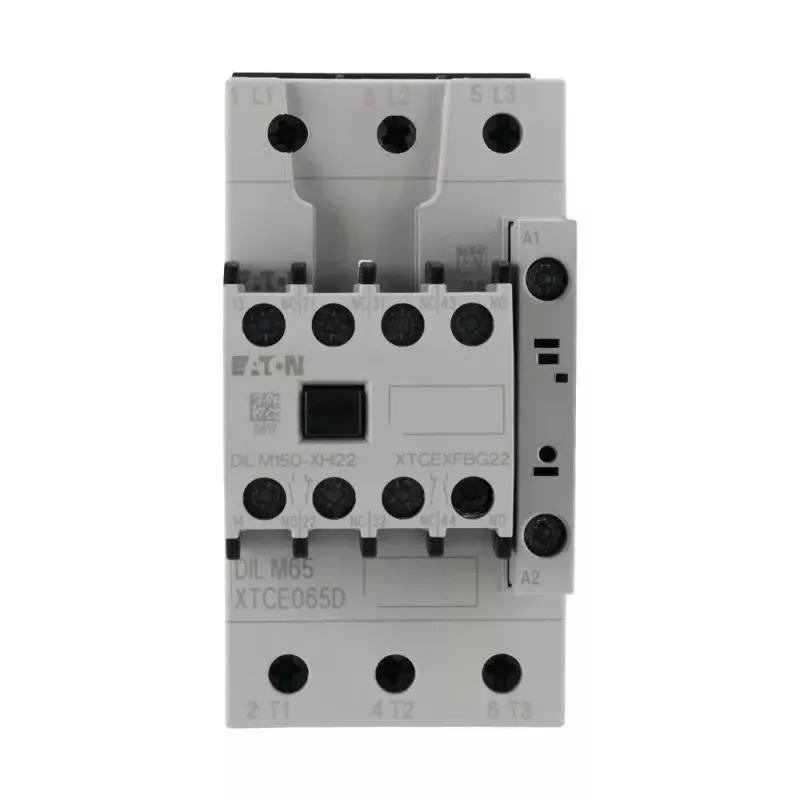

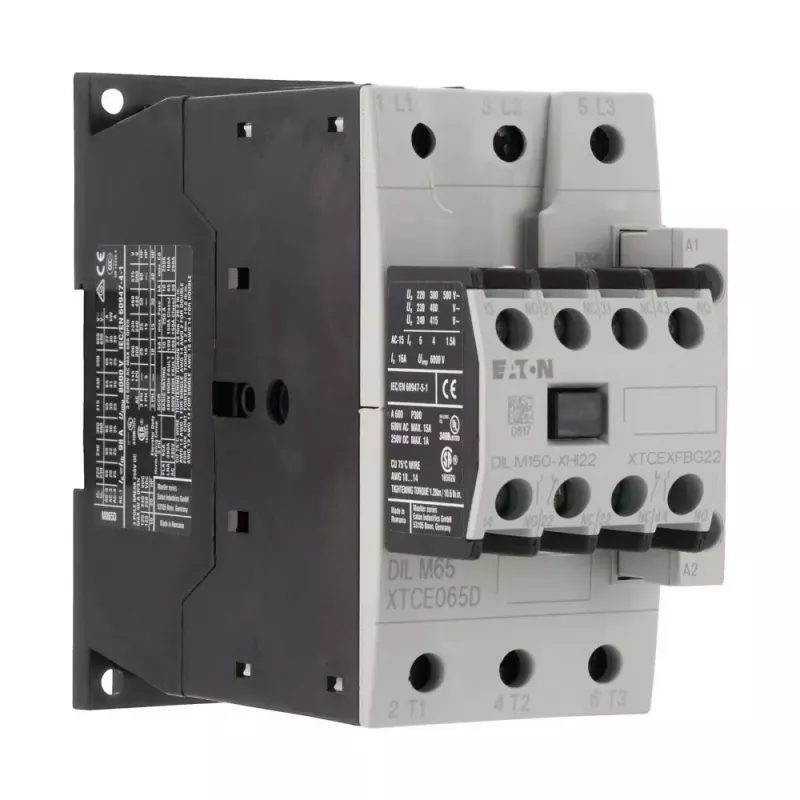

Eaton DILM65-22 vermogensschakelaar 30kW 400V AC 230V 50Hz 3-polig 2NO 2NC 277926

Industrial electricians and panel builders use the Eaton DILM65-22 power contactor to switch three-phase motors up to 30 kW at 400 V AC. This 3-pole contactor handles 65 A in AC-3 duty and 80 A in AC-1, with a 230 V 50 Hz coil. Two normally open and two normally closed auxiliary contacts support control logic, while screw terminals and DIN rail or screw mounting simplify installation in motor control centers.

Key specifications

• Rated operational power (AC-3, 400 V): 30 kW
• Rated operational current (AC-3, 400 V): 65 A
• Rated operational current (AC-1, 400 V): 80 A
• Control coil voltage: 230 V AC, 50 Hz
• Auxiliary contacts: 2 NO, 2 NC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 8 kV
• Electrical durability (AC-3): 1.5 million operations
• Mounting: DIN rail or screw
• Terminals: screw

Why choose it

The DILM65-22 is part of Eaton's DILM series, known for reliable motor switching in industrial environments. Its 2NO/2NC auxiliary configuration provides flexibility for interlocking and signaling without additional components.

Ideal use cases

• Motor starting and stopping in industrial machinery
• Heating and lighting control circuits
• HVAC compressor and fan control
• Pump control in water and wastewater systems

Good to know

The contactor operates within a temperature range of -25 to +60 °C and has an IP20 protection degree, suitable for installation inside control cabinets.
