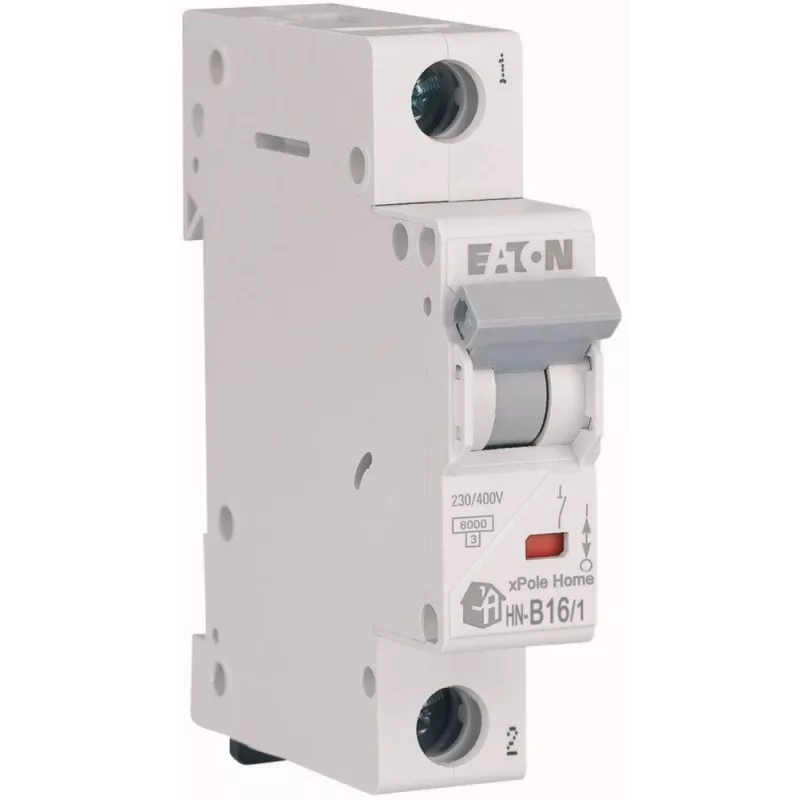

Eaton HN-B16/1 Type B Leidingbeveiligingsschakelaar, 16 A, 1-polig, 6 kA, 230 V AC, DIN-railmontage, 1 module

With a 6 kA short-circuit breaking capacity and a 16 A rated current, the Eaton HN-B16/1 miniature circuit breaker delivers robust overcurrent protection in a compact 1-module design. This 1-pole Type B MCB is engineered for residential and light commercial electrical distribution, ensuring reliable disconnection under fault conditions.

Overview

The Eaton HN-B16/1 belongs to the HN series, a range of thermal-magnetic miniature circuit breakers designed for DIN rail mounting. It offers a rated voltage of 230 V AC and operates at 50/60 Hz. The Type B tripping characteristic provides instantaneous tripping at 3 to 5 times the rated current, making it suitable for protecting circuits with moderate inrush currents, such as lighting and socket outlets.

What stands out

• High 6 kA breaking capacity ensures safety in the event of a short circuit.
• Compact 1-module width (17.5 mm) saves space in distribution boards.
• Thermal-magnetic release combines overload and short-circuit protection.
• Wide terminal capacity from 1 to 25 mm² for flexible wiring.
• Complies with IEC/EN 60898-1 for assured performance.

Technical details

• Rated current (In): 16 A
• Number of poles: 1P
• Tripping characteristic: Type B
• Rated short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Module width: 1 module (17.5 mm)
• Standard compliance: IEC/EN 60898-1
• Terminal capacity (solid/stranded): 1-25 mm²
• Energy limiting class: 3
• Protection degree (terminals): IP20
• Operating temperature range: -25 to +55 °C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Connection type: Screw terminals
• Release type: Thermal-magnetic

Our verdict

The Eaton HN-B16/1 is a reliable and space-efficient choice for protecting electrical circuits. Its high breaking capacity and compliance with international standards make it a dependable component for any installation.
