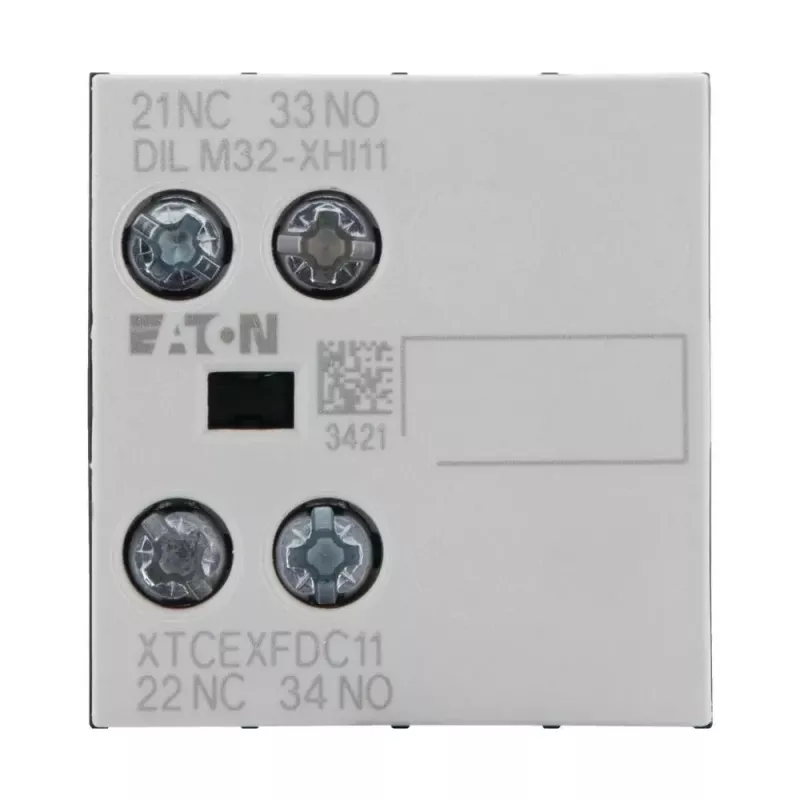

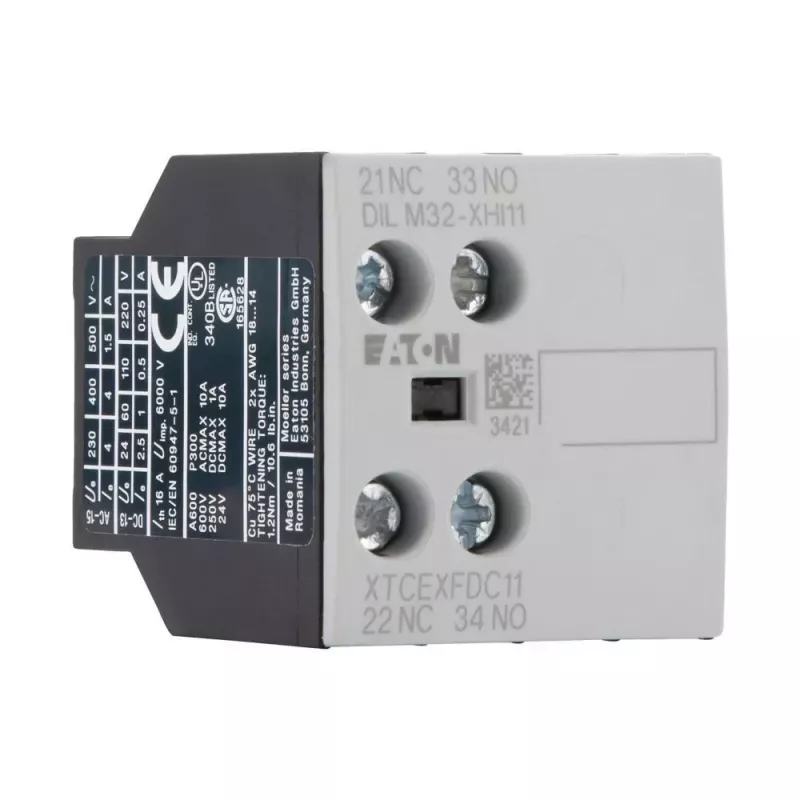

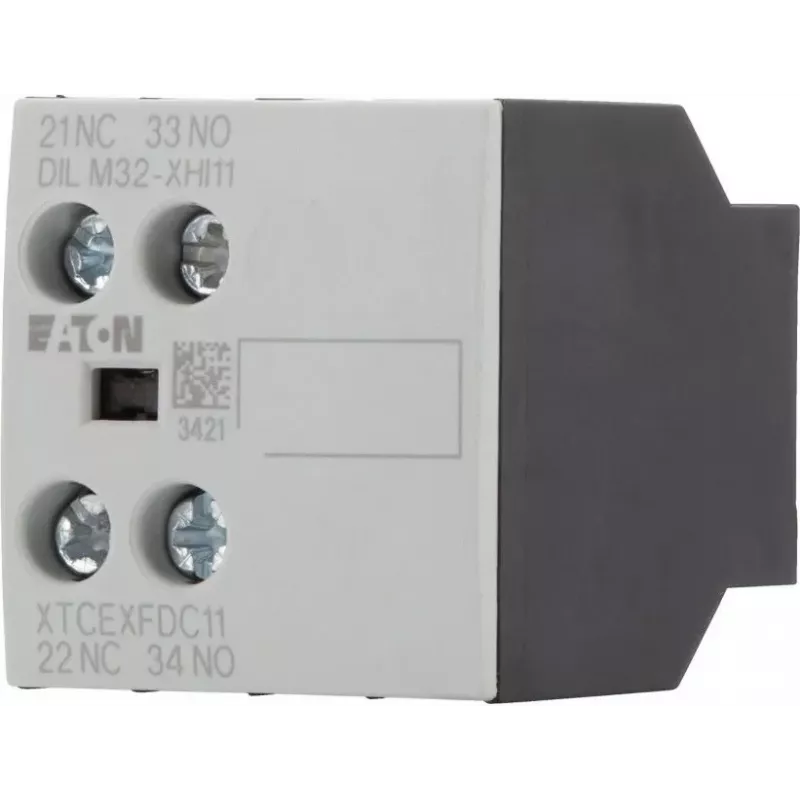

Eaton hulpcontactblok 1NO+1NC 2-polig frontmontage voor DILM contactoren DILM32-XHI11 277376

In industrial control panels, technicians often need to add auxiliary contacts to Eaton DILM contactors for signaling and interlocking. The DILM32-XHI11 auxiliary contact block provides one normally open and one normally closed contact, enabling reliable status feedback and control circuit integration.

Key specifications

• Contact configuration: 1 NO + 1 NC
• Number of poles: 2
• Mounting position: Front mounting
• Compatibility: Eaton DILM contactors (DILM7 to DILM38)
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 3 A
• Rated operational current (DC-13, 220 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Terminal type: Screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947-5-1
• Series: xStart

Why choose it

This auxiliary contact block is designed for seamless integration with Eaton DILM contactors, ensuring reliable performance in demanding industrial environments. Its compact front-mount design simplifies installation and saves panel space.

Ideal use cases

• Adding auxiliary contacts to DILM contactors in motor control applications
• Providing feedback signals for PLC inputs
• Implementing interlocking circuits in industrial machinery

Good to know

The block features screw terminals for secure wiring and is rated IP20 for use in protected environments. It complies with IEC/EN 60947-5-1, ensuring compatibility with international standards.
