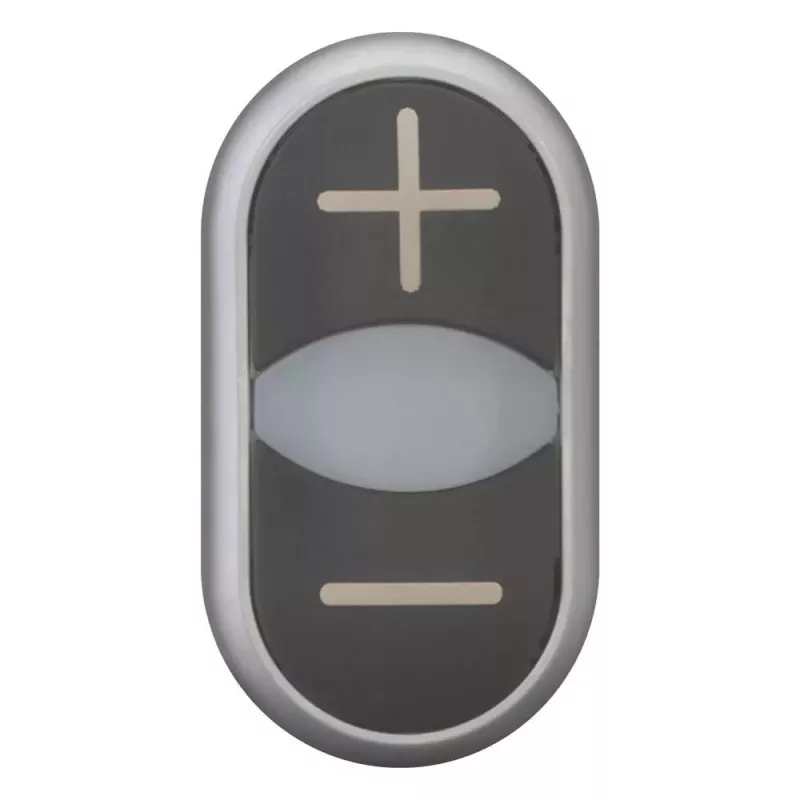

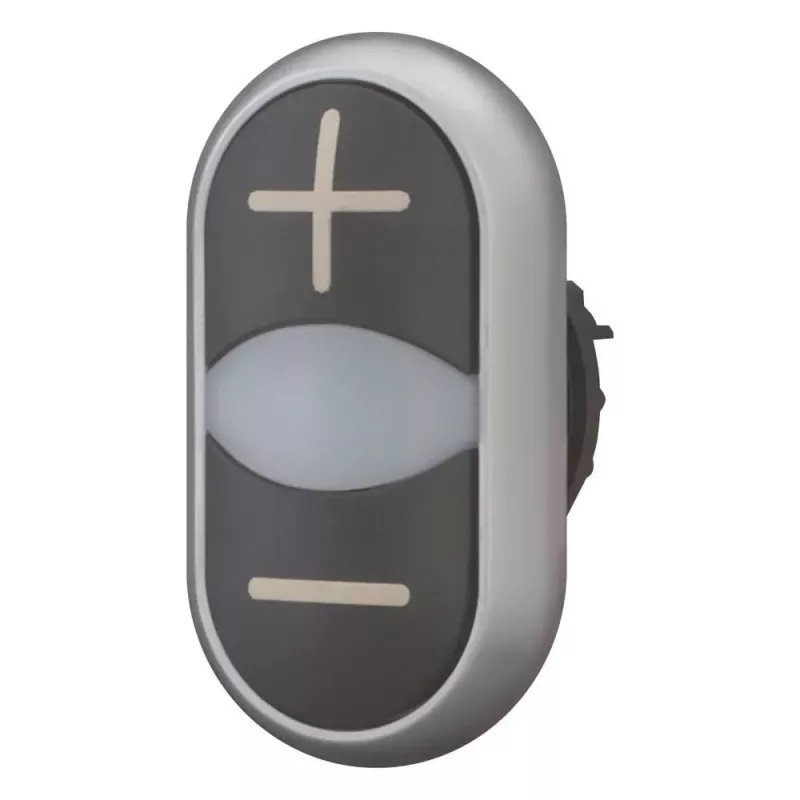

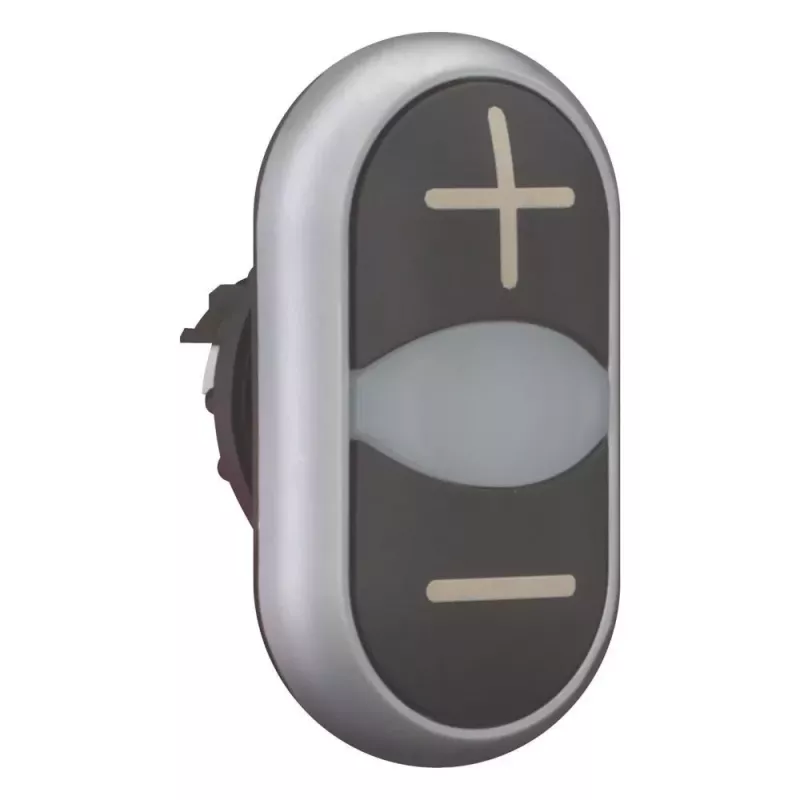

Eaton M22-DDL-S-X4/X5 dubbele drukknop actuator, zwart/titanium, IP66 218145

Control panels in demanding industrial environments need actuators that combine clear status indication with reliable switching. The Eaton M22-DDL-S-X4/X5 double pushbutton actuator provides two momentary pushbuttons in a single 22.5 mm mounting hole, saving space while offering illuminated legends for quick recognition.

Who is it for

Panel builders and machine OEMs who require a compact, durable human-machine interface for start/stop or other two-function control. Its IP66 rating suits washdown areas and outdoor installations.

Main features

• Two momentary pushbuttons with white 'I' and 'O' legends
• Black button caps on a titanium-coloured plastic front ring
• IP66 protection against dust and powerful water jets
• Fits standard 22.5 mm panel cut-outs
• Mechanical life over 5 million operations
• Operating temperature range -25 to +70 °C

Specifications

• Brand: Eaton
• Model: M22-DDL-S-X4/X5
• MPN: 218145
• EAN: 4015082181451
• Product type: Double pushbutton actuator
• Actuator type: Double pushbutton
• Operation: Momentary
• Illumination: Illuminated
• Button colour: Black
• Front ring colour: Titanium
• Front ring material: Plastic
• Housing material: Plastic
• Mounting diameter: 22.5 mm
• Ingress protection: IP66
• Number of actuating positions: 2
• Mechanical durability: >5 million operations
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Standards: IEC/EN 60947, VDE 0660
• Approvals: CE, UL, CSA

Tips

This actuator requires separate M22 contact blocks and an LED element (not included) to function. Ensure the panel cut-out is exactly 22.5 mm for a proper seal.
