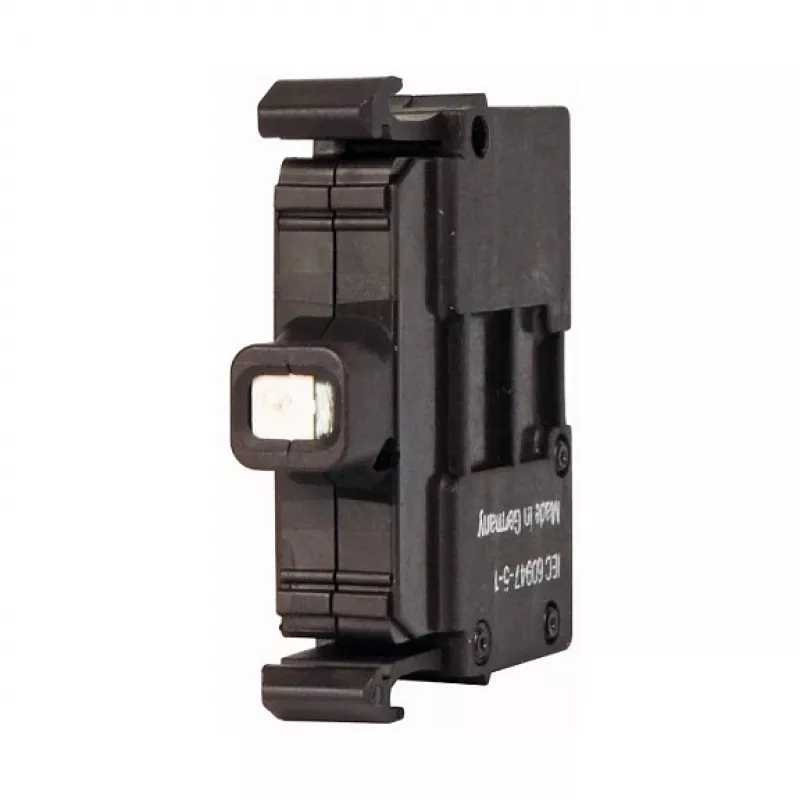

EATON M22-LED-W LED-element voor M22-bedieningsapparaten, 12-30V AC/DC, schroefaansluiting, wit (216557)

The EATON M22-LED-W is a versatile LED element engineered for seamless integration into the M22 range of pushbuttons, selector switches, and pilot lights. This module delivers clear, continuous white illumination with a wide operating voltage range of 12-30V AC/DC, simplifying installation across different power systems. Its screw terminal connection ensures fast, reliable wiring without special tools.

Highlights

• White LED illumination with >100,000 hours lifespan
• Universal supply voltage: 12-30V AC/DC
• Screw terminal connection for secure wiring
• Front panel mounting for M22 devices
• IP20 protection at terminals
• CE, UL, and CSA certified

In daily use

This LED element is ideal for industrial control panels, machinery, and automation systems. It fits directly onto Eaton M22 actuators and indicators, replacing incandescent bulbs or legacy LEDs. The low power consumption (<1 W) minimizes heat and energy costs. Operating temperature ranges from -25 to +70°C, making it suitable for demanding environments.

Full specifications

• Product Type: LED Element
• Light Color: White
• Supply Voltage: 12-30V AC/DC
• Current Type: AC/DC
• Connection Type: Screw Terminal
• Series: Eaton M22
• Mounting Type: Front Panel Mounting (for M22 control devices)
• Certifications: CE, UL, CSA
• Operating Temperature Range: -25 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Protection Degree (Terminals): IP20
• Expected Lifespan: > 100,000 hours
• Power Consumption: < 1 W
• Housing Material: High-grade plastic
• Compatibility: Eaton M22 Pushbuttons, Selector Switches, and Indicator Lights
• Illumination Type: Continuous
• Number of Terminals: 2
• Terminal Capacity: 0.5 - 2.5 mm²

Final note

Engineered with precision and backed by global certifications, the Eaton M22-LED-W delivers consistent performance and long service life. Whether upgrading existing panels or building new ones, this LED element provides reliable indication with minimal maintenance.
