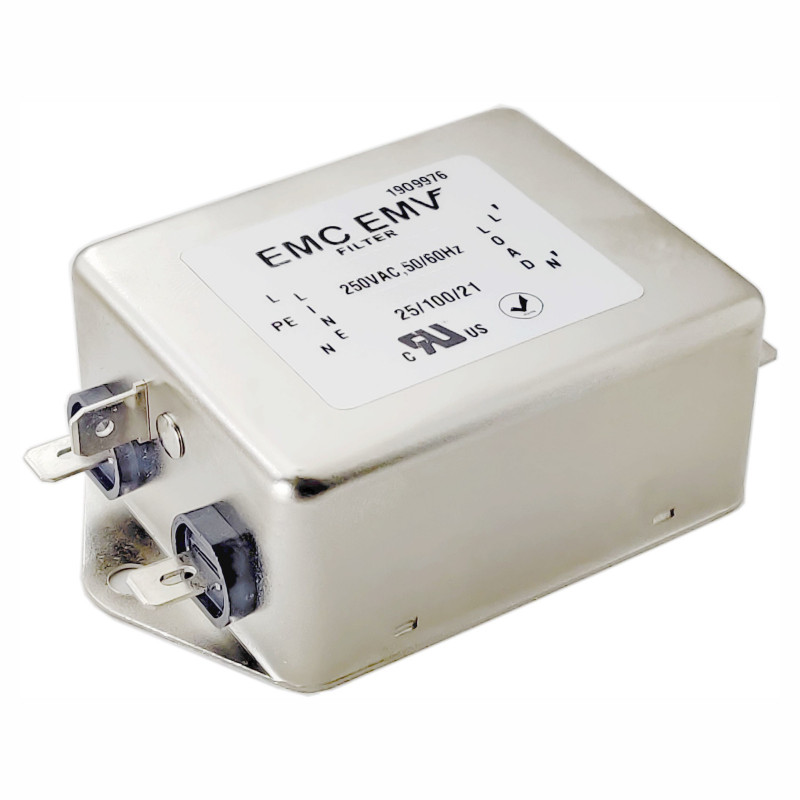

Akyga EN2060-12-F eenfasig EMC-netfilter 12 A, 120–250 V AC, 50/60 Hz, 6,3 mm aansluitingen

The Akyga EN2060-12-F is a single-phase EMI filter designed to suppress electromagnetic interference in equipment powered up to 12 A. It is suitable for automation systems, advanced power supply systems, audio/video installations and industrial equipment where a clean and stable voltage is crucial. The filter features 6.3 mm connectors for quick installation and a metal housing for durability and effective shielding.

Key features

• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Number of poles: 2
• Metal housing
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Operating temperature: -25°C to +100°C
• Product size (L x W x H): 86 x 52 x 29 mm
• CE, RoHS and REACH compatibility

Specifications

• Brand: Akyga
• MPN: EN2060-12-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 12 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @ 120 VAC 60 Hz, 0.74 mA @ 250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature: -25°C to +100°C
• Product size (L x W x H): 86 x 52 x 29 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138736
