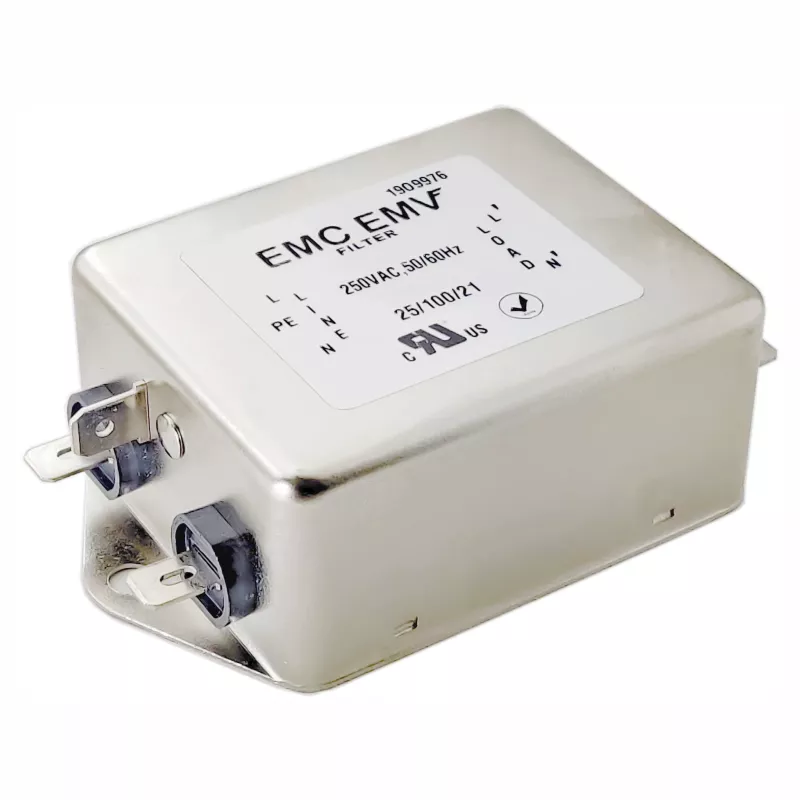

Akyga EN2060-1-F eenfasig EMI-filter, 1 A, 120-250 V AC, 50/60 Hz, 6,3-mm aansluitingen

The Akyga EN2060-1-F is a single-phase EMI filter designed to protect sensitive electronic systems from electromagnetic interference. With a rated current of 1 A and 6.3 mm connectors, it is suitable for low-current applications. Its metal housing provides effective shielding and durability.

Key features

• Single-phase EMI filter
• Rated current: 1 A
• 6.3 mm connectors
• Metal housing
• Number of poles: 2
• Compliance certificates: CE, RoHS, REACH

Specifications

• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
• Operating temperature (T-T): -25 - 100 °C
• Width: 45 mm
• Depth: 73 mm
• Height: 29 mm
• Weight: 0.04 kg
• Material: Metal
• MPN: EN2060-1-F
