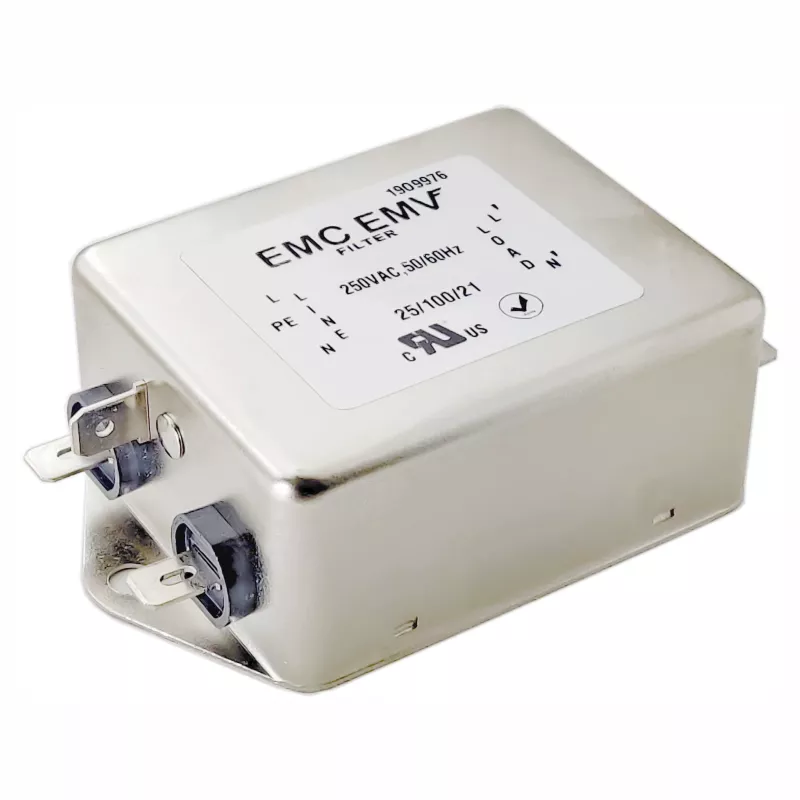

Akyga EN2060-10-F eenfasig EMI-filter, 10 A, 120-250 V AC, 50/60 Hz, 6,3-mm aansluitingen

The Akyga EN2060-10-F is a single-phase EMI filter designed to protect electronic equipment from electromagnetic interference in installations supplied with 120 to 250 V AC. Its two-pole design and metal housing ensure stable operation and effective shielding, while standard 6.3 mm connectors allow for quick installation.

Key features

• Single-phase EMI filter
• Two-pole design
• Metal housing for mechanical resistance and shielding
• 6.3 mm connectors for fast installation
• Suitable for industrial and domestic applications

Specifications

• Rated current: 10 A
• Rated voltage (AC): 120 - 250 V
• Input frequency: 50/60 Hz
• Number of poles: 2
• Connection type: 6.3 mm connectors
• Material: Metal
• Operating temperature (T-T): -25 - 100 °C
• Width: 52 mm
• Depth: 86 mm
• Height: 29 mm
• Compliance certificates: CE, RoHS, REACH
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
