Eaton PXL-D6/1 installatieautomaat 1-polig D-karakteristiek 6A 10kA 236093

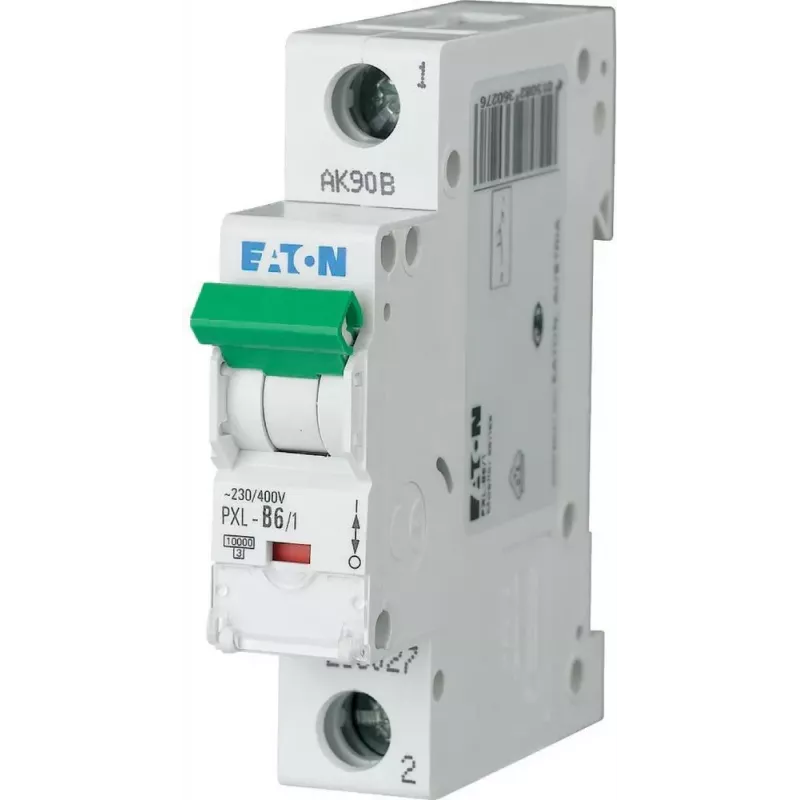

The Eaton PXL-D6/1 is a 1-pole miniature circuit breaker (MCB) with D tripping characteristic, rated at 6 A and 10 kA switching capacity. It provides reliable protection for circuits with high inrush currents, such as motors and transformers, in industrial and commercial installations.

Advantages

D-curve ensures tripping only during genuine overloads or short circuits, preventing nuisance tripping from high starting currents. Compact 1-module width (17.5 mm) saves space on the DIN rail. Screw terminals accept solid conductors up to 25 mm² and flexible up to 16 mm², ensuring secure connections. Energy limiting class 3 limits let-through energy, protecting downstream equipment. Wide ambient temperature range from -25 °C to +75 °C allows use in harsh environments.

Suitable for

• Protecting motor circuits with high inrush currents
• Transformer and solenoid circuits
• Industrial control panels
• Commercial distribution boards

Key specifications

• Number of poles: 1
• Rated current: 6 A
• Tripping characteristic: D
• Rated switching capacity: 10 kA
• Rated voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715, TH35)
• Terminal capacity solid: 1 - 25 mm²
• Terminal capacity flexible: 1 - 16 mm²
• Module width: 1 (17.5 mm)
• Rated impulse withstand voltage: 4 kV
• Overvoltage category: III
• Pollution degree: 2

Recommendations

Select the PXL-D6/1 when you need a robust, space-saving MCB for high-inrush loads. Verify that the short-circuit current at the installation point does not exceed 10 kA. Always install in a suitable enclosure to maintain protection against direct contact.
