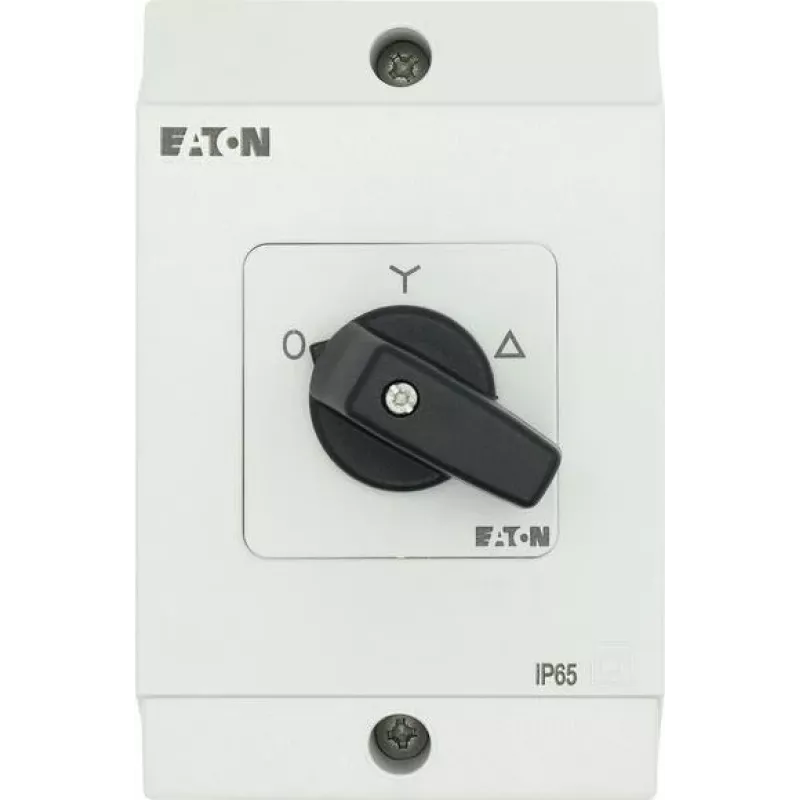

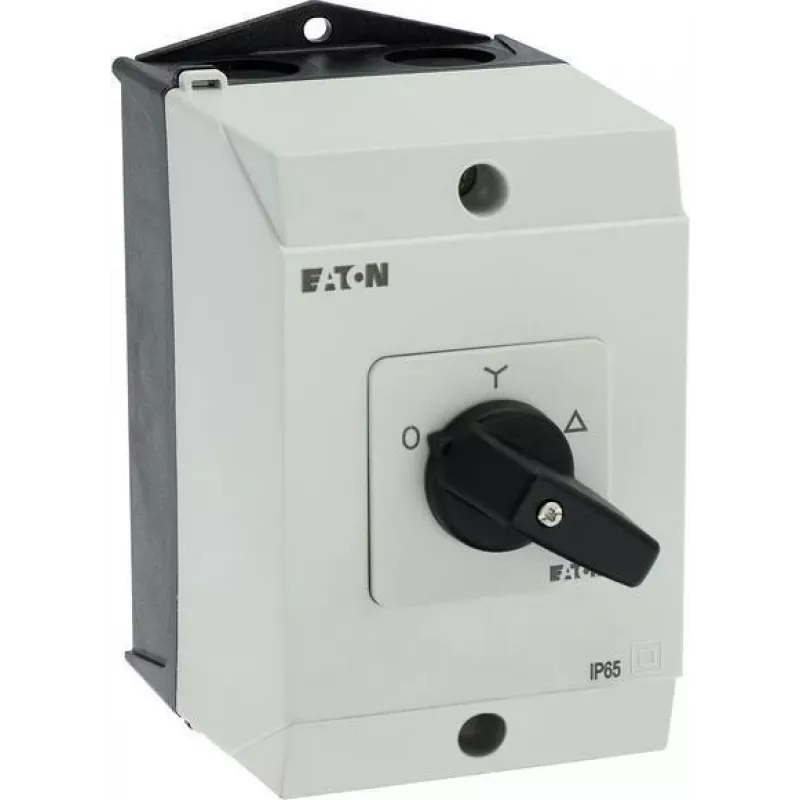

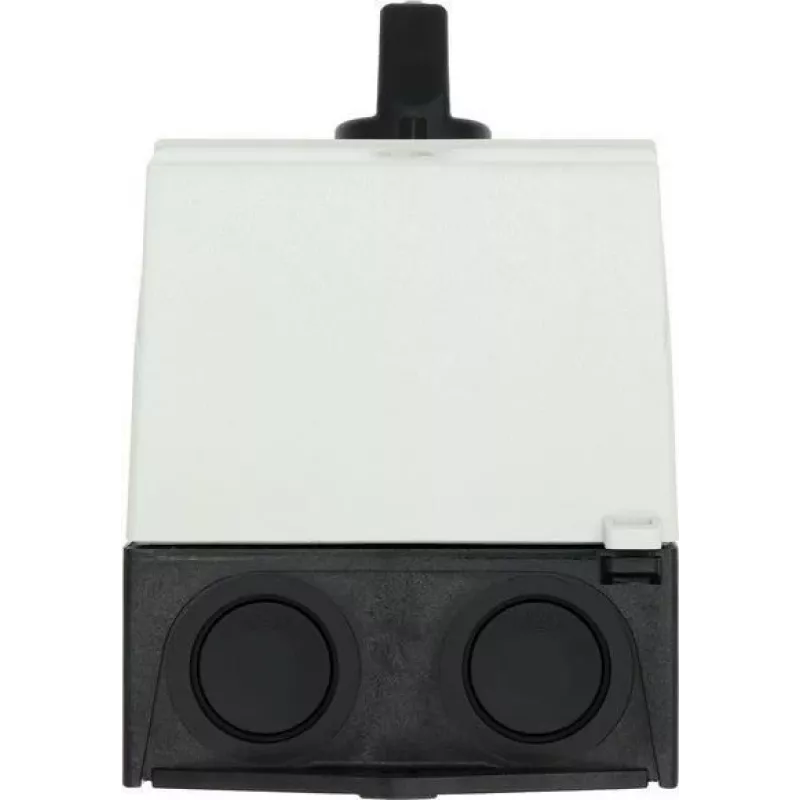

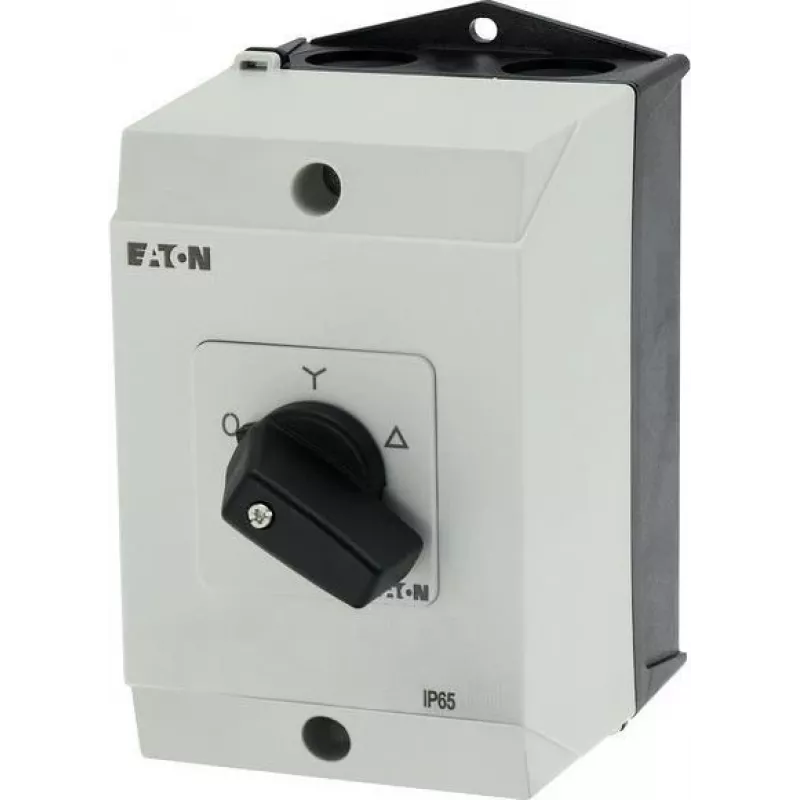

Eaton T0-4-8410/I1 3-polige AAN-UIT tuimelschakelaar, 20 A, frontmontage, zwart/wit 207140

Industrial and commercial electrical installations often require a robust, front-mounted switch that can reliably control three-phase circuits while withstanding harsh environments. The Eaton T0-4-8410/I1 toggle switch solves this by providing a 3-pole ON-OFF switching function in a compact design, ensuring safe and efficient operation for machinery and control panels.

Who is it for

This switch is intended for electricians, panel builders, and maintenance technicians who need a dependable, manually operated disconnect or control switch for three-phase loads. It is suitable for use in industrial control systems, HVAC equipment, and power distribution units where front mounting and clear visual status indication are required.

Main features

• 3-pole configuration for three-phase circuit control
• ON-OFF switching function with a 90° toggle lever
• Rated operational current of 20 A (AC-21A, 400 V) and 13.2 A (AC-23A, 400 V)
• Rated operational power of 5.5 kW at AC-23A, 400 V
• Front mounting with central fixing for easy installation
• Screw terminals for secure wiring
• Black actuator with white markings for clear status indication
• Operating temperature range from -25 °C to +50 °C

Specifications

• Number of poles: 3
• Switching function: ON-OFF
• Actuator type: Toggle lever
• Rated operational current (AC-21A, 400 V): 20 A
• Rated operational current (AC-23A, 400 V): 13.2 A
• Rated operational power (AC-23A, 400 V): 5.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6000 V
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Front mounting, central mounting
• Terminal type: Screw terminals
• Switching angle: 90°
• Number of switching positions: 2
• Colour (actuator/markings): Black/White
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C

Tips

When installing, ensure the panel cut-out matches the switch's front mounting dimensions and that the central fixing is securely tightened to maintain the IP65 front protection. For three-phase motor loads, verify that the AC-23A rating meets the motor's starting current requirements.
