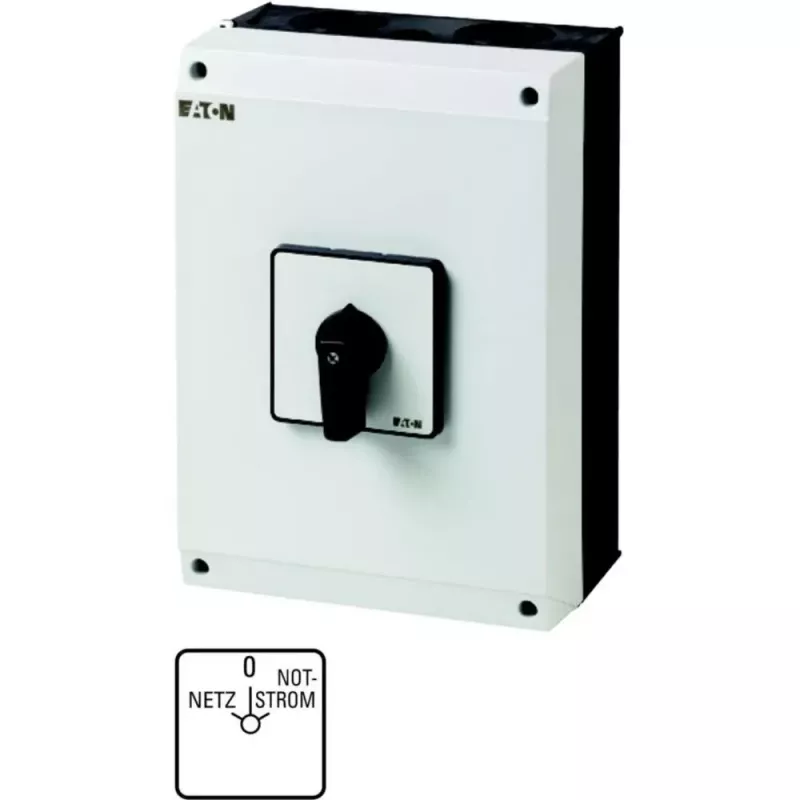

Eaton T5-4-8902/I5 4-polige hoofdschakelaar 63 A, zwart/wit 207214

The Eaton T5-4-8902/I5 stands out as a robust 4-pole main switch engineered for front panel mounting, offering a straightforward ON-OFF control solution for industrial applications. Its black actuator on a white front plate provides clear visual status, while the 90° switching angle ensures positive operation.

Highlights

• 4-pole main switch with 63 A rated uninterrupted current
• Front panel mounting with IP65 protection on the front
• Black actuator and white front plate for clear indication
• Screw terminals for secure wiring
• Compact 64 x 64 mm front plate with 70 mm mounting depth

In daily use

Designed for reliable power control, this switch handles rated operational currents up to 63 A (AC-21A) and 50 A (AC-23A) at 400 V, making it suitable for motor and load switching up to 22 kW. The switch operates within an ambient temperature range of -25 to +50 °C, ensuring dependable performance in demanding environments.

Full specifications

• Rated uninterrupted current (Iu): 63 A
• Rated operational current (AC-21A, 400V): 63 A
• Rated operational current (AC-23A, 400V): 50 A
• Rated operational power (AC-23A, 400V): 22 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Switching angle: 90°
• Switching function: ON-OFF (main switch)
• Mounting type: Front panel mounting
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Actuator colour: Black
• Front plate colour: White
• Connection type: Screw terminals
• Ambient operating temperature: -25 to +50 °C
• Front plate dimensions: 64 x 64 mm
• Mounting depth (behind panel): 70 mm

Final note

A reliable choice for industrial power switching, combining high current capacity with a compact, protected design.
