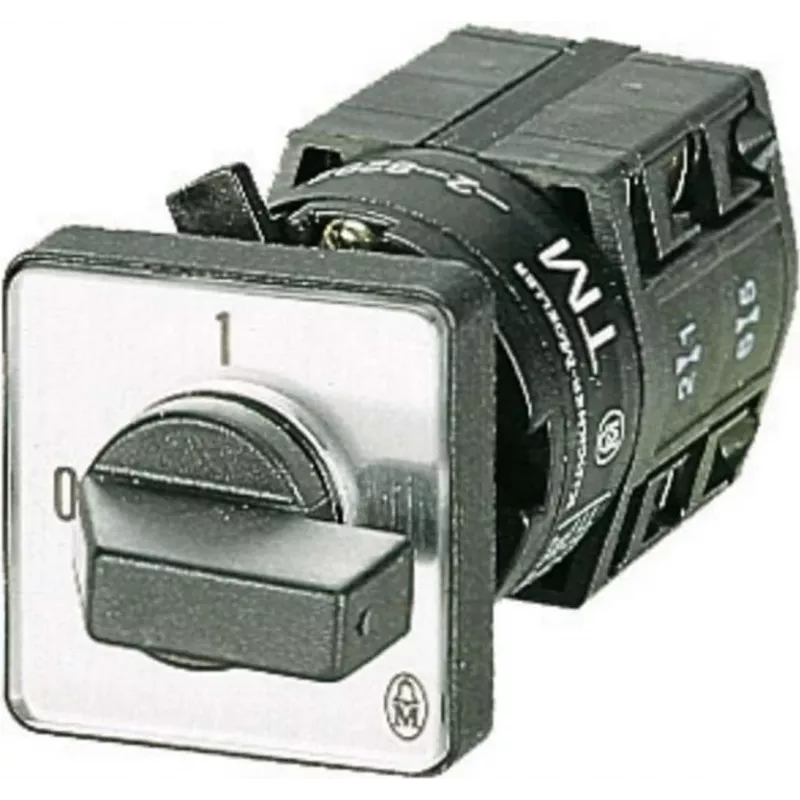

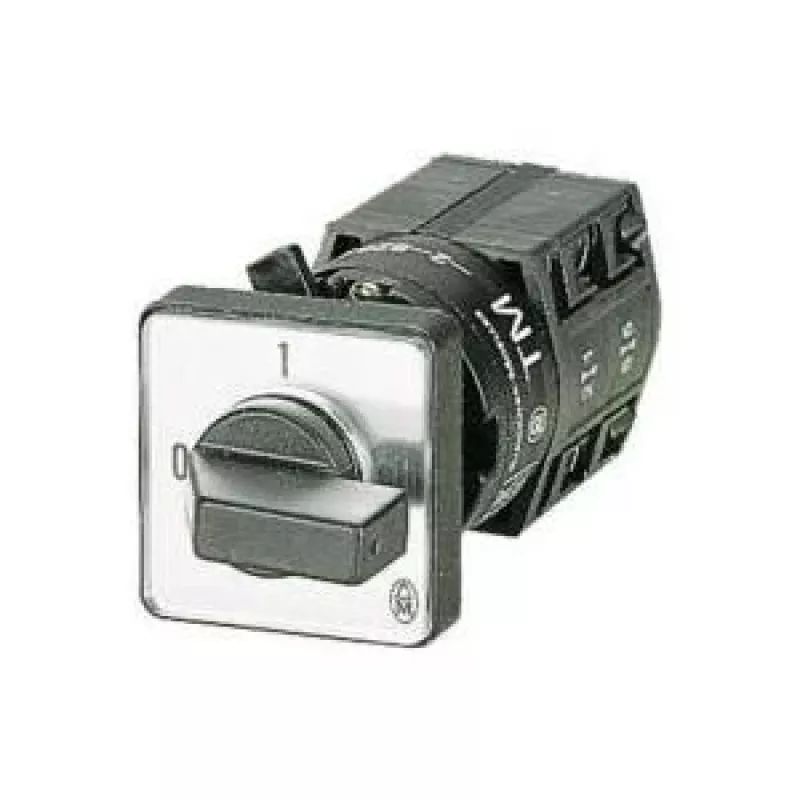

Eaton TM-1-8291/E nokkenschakelaar 10 A 1-polig 90° grijs/zwart 72504

Manual switching of single-phase circuits in industrial control panels often requires a robust, compact, and reliable solution that can withstand harsh environments while offering clear operational feedback. The Eaton TM-1-8291/E cam switch addresses this need with a 10 A rated current, 1-pole ON-OFF configuration, and a 90° switching angle, making it ideal for simple isolation and control tasks.

Who is it for

This cam switch is designed for panel builders, electricians, and maintenance technicians who need a dependable front-panel mounted switch for motor control, lighting circuits, or auxiliary power isolation. Its IP65 front protection suits applications in dusty or damp industrial environments, while the compact 48 x 48 mm front plate fits standard cut-outs.

Main features

• Rated operational current of 10 A at up to 690 V AC
• 1-pole ON-OFF switching with 90° rotation and two positions (0-1)
• Front panel protection rating IP65; terminals rated IP20
• Screw terminals for secure wiring and easy installation
• Grey body with black handle for clear visual identification
• Complies with IEC/EN 60947 for industrial switchgear

Specifications

• Brand: Eaton
• Model: TM-1-8291/E
• MPN: 72504
• EAN: 4015080725046
• Rated current: 10 A
• Number of poles: 1
• Switching angle: 90°
• Switching positions: 2 (0-1)
• Switching function: ON-OFF
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Front panel mounting
• Front plate dimensions: 48 x 48 mm
• Terminal type: Screw terminals
• Colour: Grey body, black handle
• Standards: IEC/EN 60947
• Ambient operating temperature: -25 to +50 °C
• Number of contacts: 1 NO

Tips

Ensure the panel cut-out matches the 48 x 48 mm front plate for a proper seal. Use appropriate screwdrivers for terminal connections and verify torque settings as per installation guidelines. For outdoor or washdown areas, consider an additional enclosure to protect the IP20 terminals.
