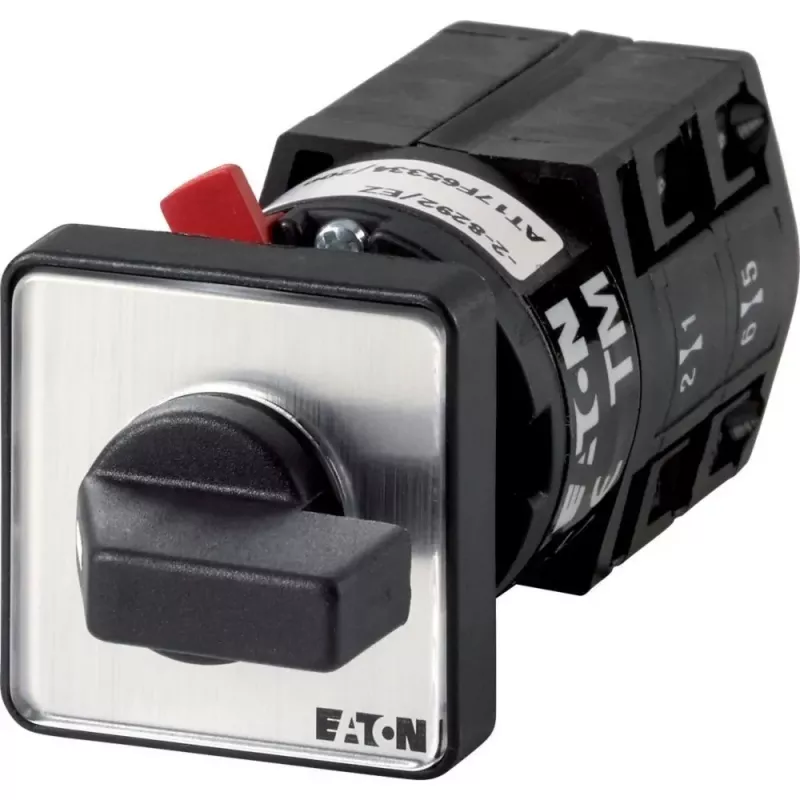

Eaton TM-2-8231/EZ tuimelschakelaar 1-polig zwart metaal (000700)

Industrial control panels often require a robust switching solution that can handle high currents while providing clear tactile feedback and resistance to environmental factors. The Eaton TM-2-8231/EZ toggle switch addresses these needs with a rugged metal lever and IP65 front protection, making it suitable for demanding applications.

Who is it for

This switch is intended for panel builders, machine manufacturers, and maintenance technicians who need a reliable 1-pole ON-OFF switch for control circuits up to 690 V AC. It is ideal for use in industrial machinery, control cabinets, and other equipment where a front panel mounted toggle switch is required.

Main features

• 1-pole toggle switch with ON-OFF switching function and 2 positions
• High rated uninterrupted current of 20 A and operational voltage up to 690 V AC
• Front protection degree IP65, suitable for dusty and wet environments
• Metal toggle lever in black for durability and clear visual indication
• Screw terminals for secure wiring and easy installation
• Complies with IEC/EN 60947 standards

Specifications

• Product type: Control switch
• Switch type: Toggle switch
• Number of poles: 1
• Switching positions: 2
• Switching function: ON-OFF
• Contact configuration: 1 Normally Open (NO)
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Mounting type: Front panel mount
• Terminal type: Screw terminals
• Actuator type: Toggle lever
• Actuator colour: Black
• Front protection degree: IP65
• Switching angle: 60°
• Operating temperature range: -25 to +50 °C
• Electrical life: 0.5 x 10^6 operations
• Mechanical life: 1 x 10^6 operations
• Housing material: High-grade insulating material
• Lever material: Metal
• Standard compliance: IEC/EN 60947

Tips

When installing, ensure the panel cut-out matches the switch's mounting dimensions and that the panel thickness is within the recommended range. For connections, use appropriate wire sizes and torque the screw terminals to the manufacturer's specifications to maintain reliable contact. Consider the IP65 rating when selecting a location; while the front is protected, the rear terminals should be enclosed or protected if exposed to moisture.
