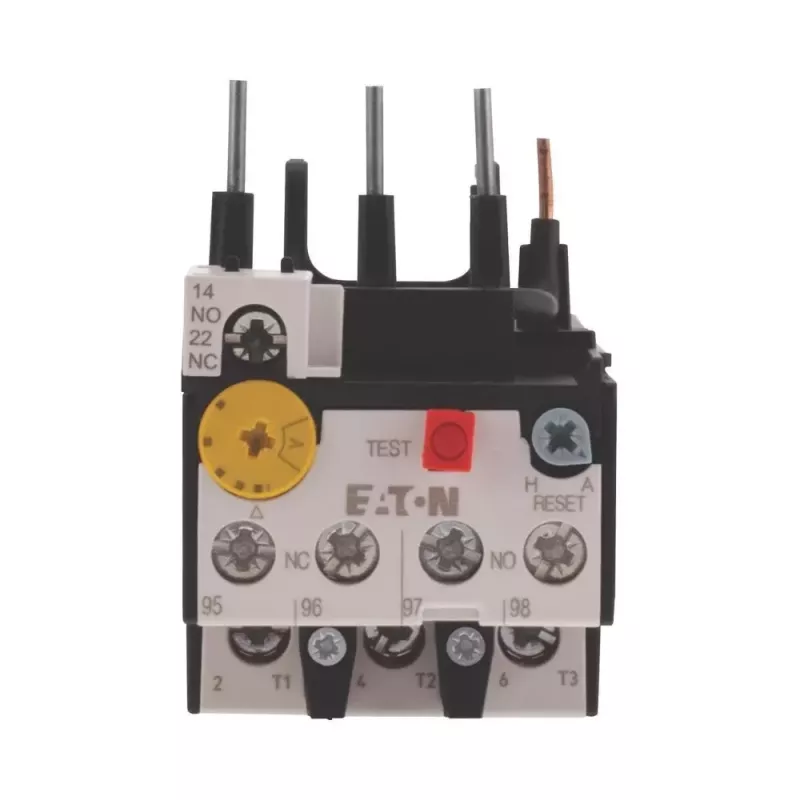

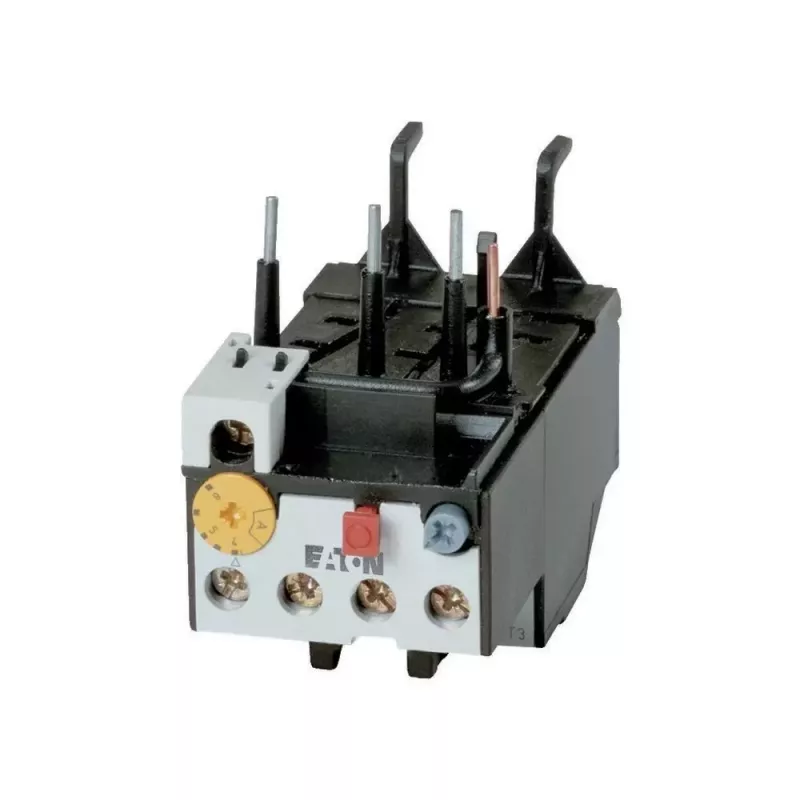

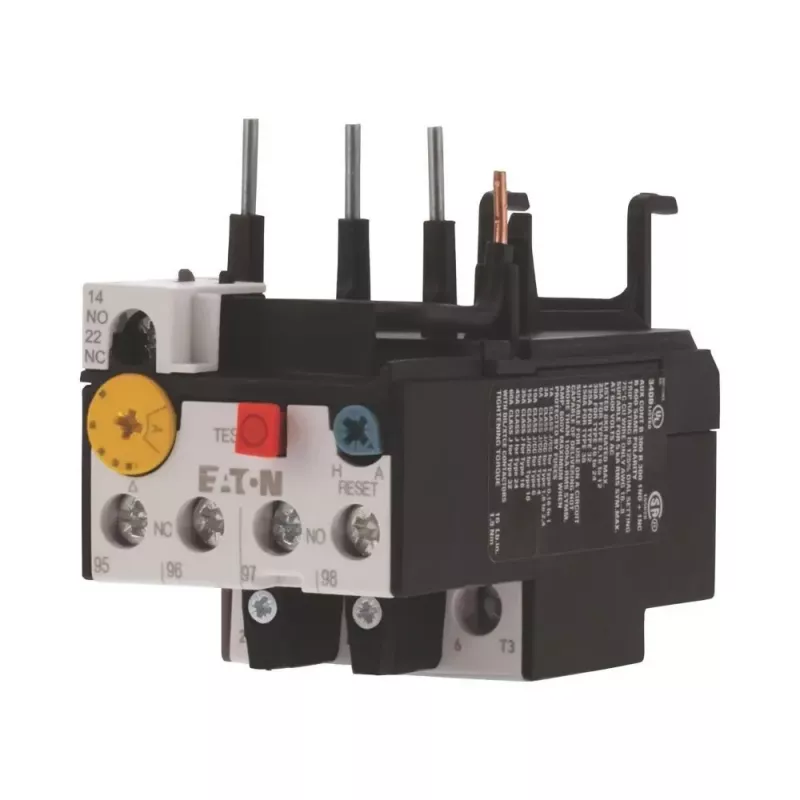

EATON ZB32-16 thermische overbelastingsbeveiliging 10-16 A voor DILM17-32 contactoren 278452

Thermal overload relay with adjustable current setting from 10 A to 16 A, designed for direct mounting on Eaton DILM17, DILM25, and DILM32 contactors. It provides reliable motor protection against overload and phase failure in three-phase circuits up to 690 V AC.

Advantages

Manual or automatic reset function selectable via front dial. Trip indication for quick fault identification. Auxiliary contacts (1 NO + 1 NC) for control signaling. Compact design with IP20 protection.

Suitable for

• Motor protection in industrial control panels
• Three-phase motors with rated current 10-16 A
• Direct mounting on DILM17-32 contactors

Key specifications

• Current setting range: 10 - 16 A
• Thermal overload class: Class 10A
• Number of poles: 3
• Rated operational voltage: up to 690 V AC
• Auxiliary contacts: 1 NO + 1 NC
• Reset function: manual/automatic selectable
• Degree of protection: IP20
• Operating temperature: -25°C to +55°C

Recommendations

Ideal for protecting motors in combination with Eaton DILM contactors. Ensure correct current setting according to motor full load current.
