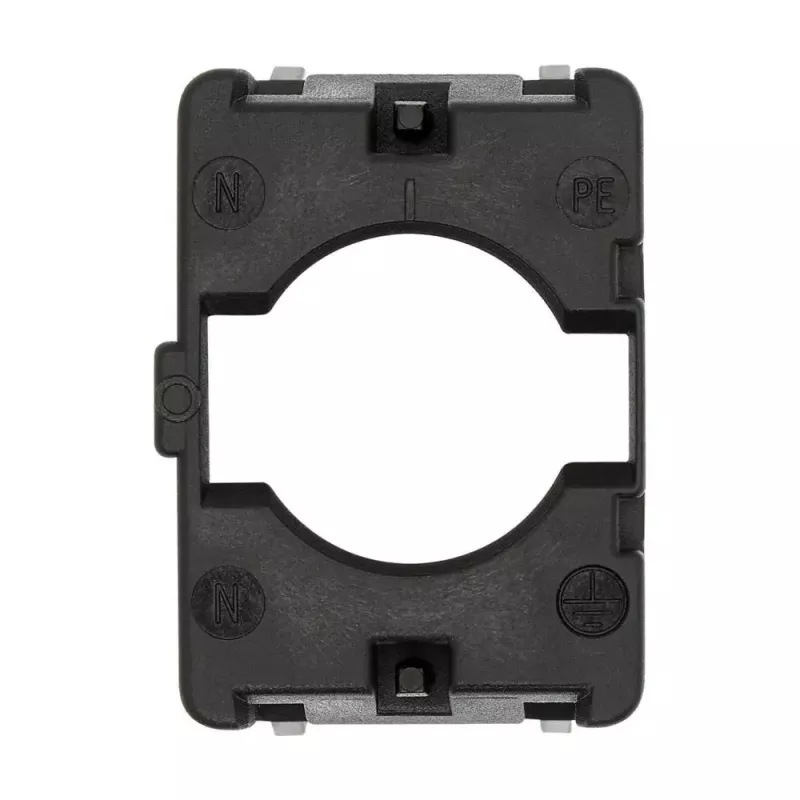

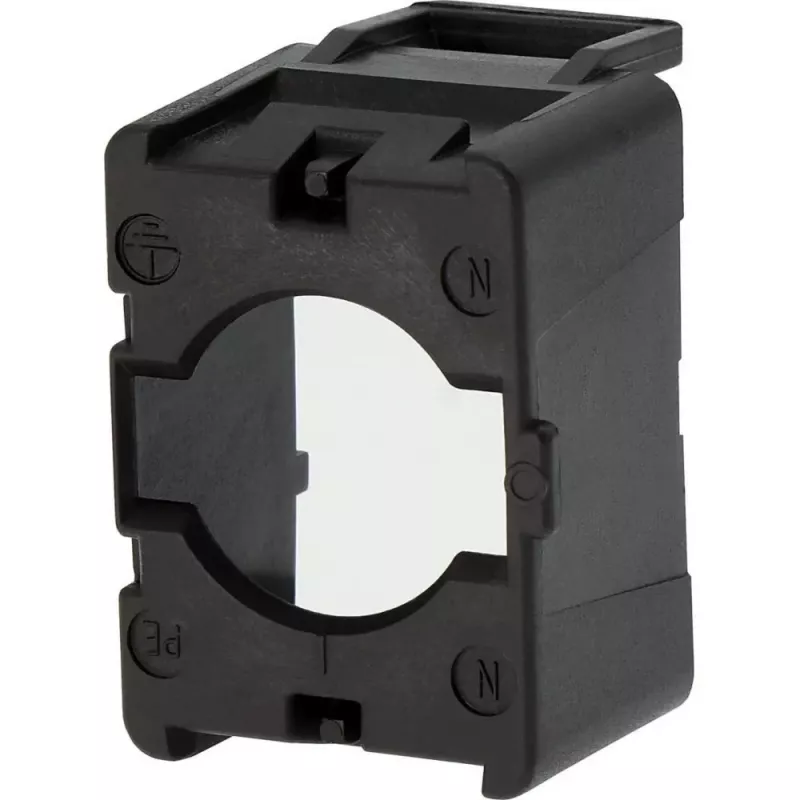

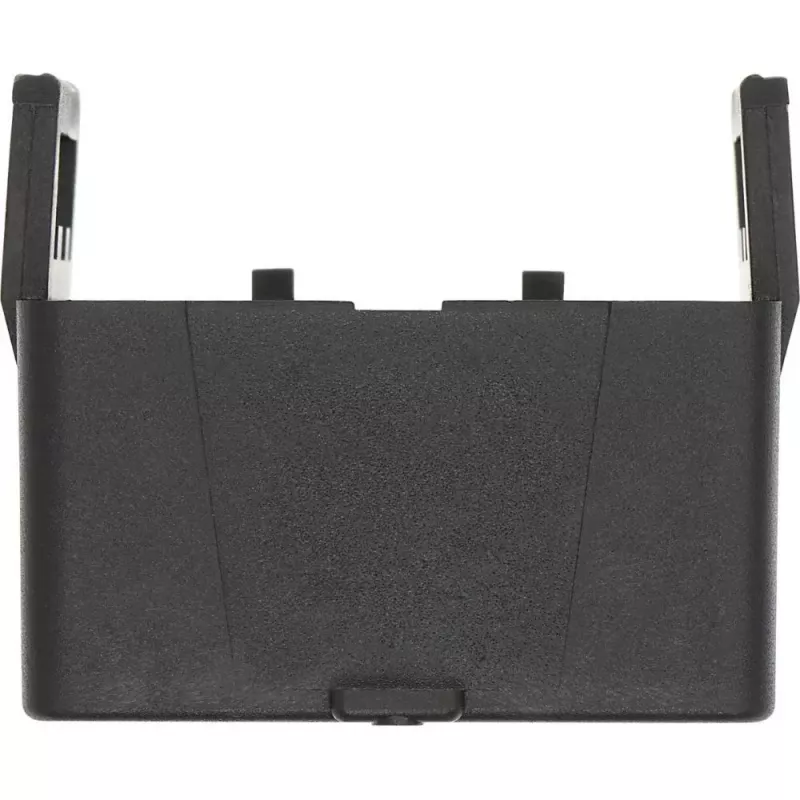

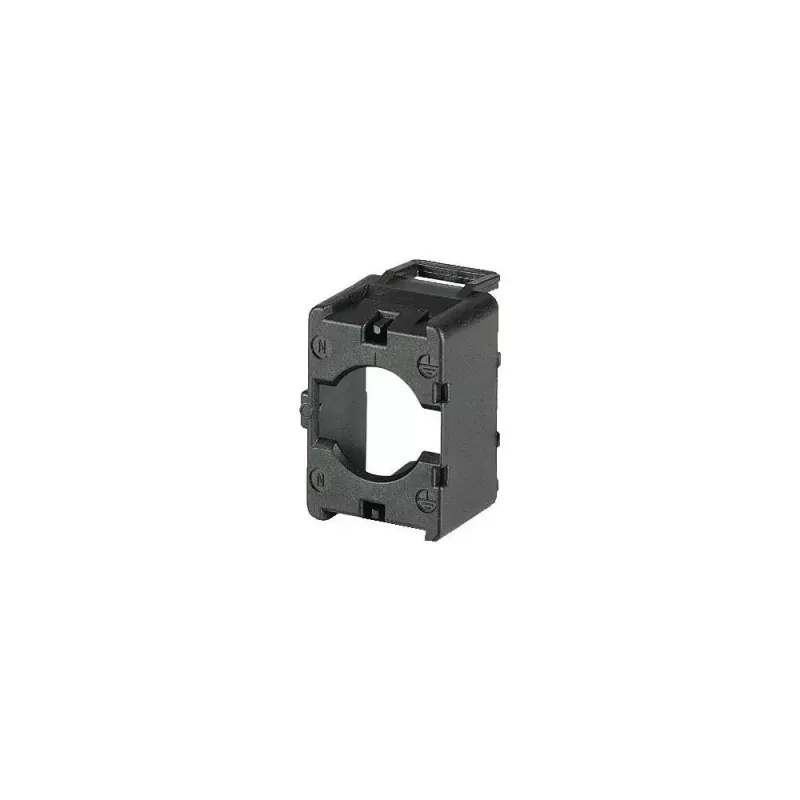

Eaton ZVV-P3 vergrendelingsverlenging voor P1/P3/P5 lastscheiders (024671)

Extend the interlock mechanism on Eaton P1, P3, and P5 switch-disconnectors with the ZVV-P3 interlock extension. This accessory is used by panel builders and maintenance technicians in industrial control panels and switchgear to enable flexible positioning of the operating handle while maintaining safe interlocking.

Key specifications

• Accessory type: Interlock extension
• Compatibility: Eaton P1, P3, P5 switch-disconnectors
• Extension length: 100 mm
• Series: P-Series
• Manufacturer part number: 024671
• Product family: Industrial control components
• Mounting type: Internal accessory for device
• Material: High-grade plastic / metal components
• Colour: Grey/Black
• Operating temperature: -25°C to +50°C
• Storage temperature: -40°C to +80°C
• RoHS compliant: Yes
• REACH compliant: Yes

Why choose it

The ZVV-P3 provides a reliable extension of the interlock function, allowing the switch-disconnector to be operated from a distance while preserving the safety interlock. Its robust construction ensures long-term performance in industrial environments.

Ideal use cases

• Extending interlock reach in control panels
• Retrofitting existing P1/P3/P5 installations
• Enhancing operator safety in switchgear

Good to know

The extension is an internal accessory and must be installed within an appropriate enclosure. It complies with relevant standards for switchgear components.
