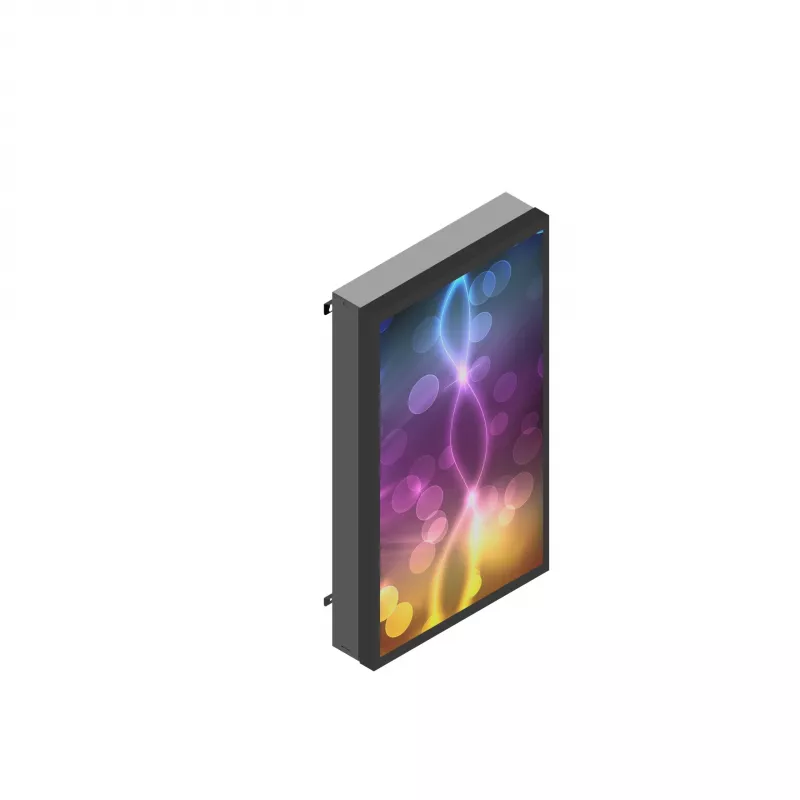

Edbak OWM101 outdoor-wandbehuizing voor LG 55XE4F 55 inch

Outdoor digital signage demands robust protection, and the Edbak OWM101 delivers with an IP56-rated, IK10 anti-vandal enclosure engineered specifically for the LG 55XE4F 55-inch display. Its powder-coated steel body and tempered anti-reflective glass shield the screen from weather, impacts, and unauthorized access while maintaining optimal visibility in bright conditions.

Advantages

Built for permanent outdoor installation, this enclosure features a lockable front panel and security screws to deter tampering. Integrated fans ensure active cooling, while an optional heating module extends operation down to -20°C. The front-access design simplifies display maintenance, and internal cable management keeps installations clean and protected.

Suitable for

• Outdoor digital signage in retail, transport, and public spaces
• Drive-thru menu boards and wayfinding kiosks
• High-traffic areas requiring vandal-resistant display protection
• Installations needing reliable performance in extreme weather

Key specifications

• Compatible display: LG 55XE4F (55-inch, landscape orientation)
• Ingress protection: IP56 (dust and powerful water jets)
• Impact resistance: IK10 (highest vandal rating)
• Material: Powder-coated steel, RAL 9005 black
• Glass: Tempered, anti-reflective
• Cooling: Integrated fans; optional heating module support
• Operating temperature: -20°C to +50°C
• External dimensions: 1290 x 790 x 200 mm (W x H x D)
• Internal dimensions: 1210 x 690 x 100 mm (W x H x D)
• Certifications: CE

Recommendations

For reliable outdoor digital signage, pair this enclosure with a weatherproof power supply and consider the optional heating module for cold climates. Professional installation is recommended to ensure proper sealing and ventilation.
