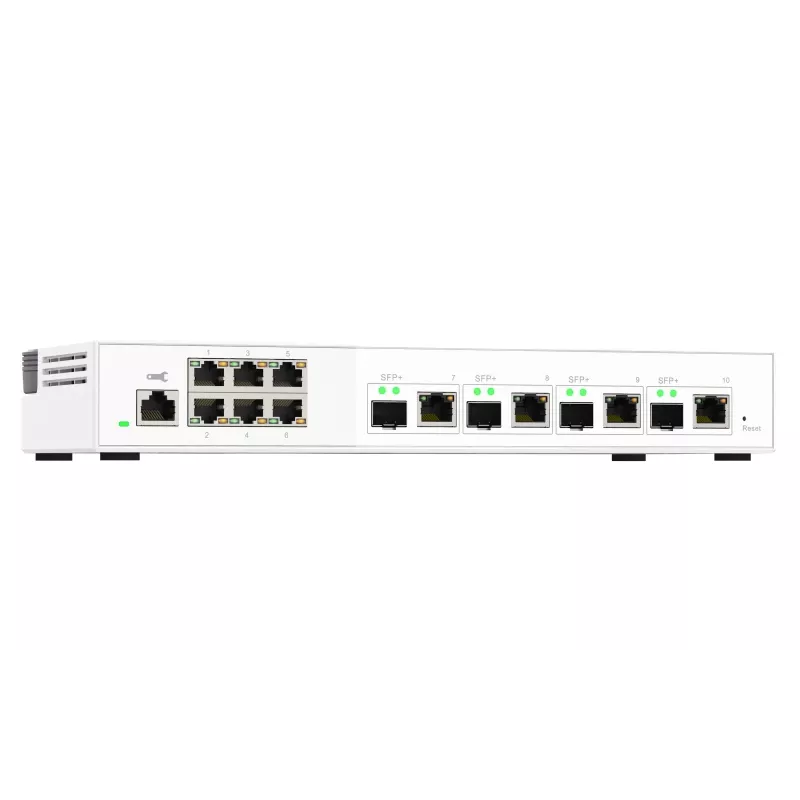

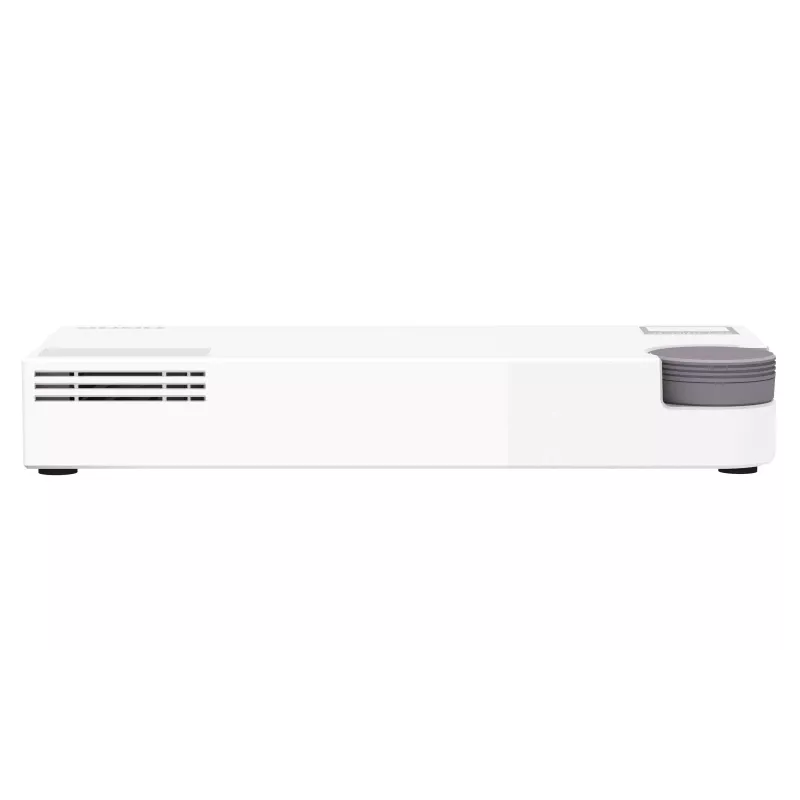

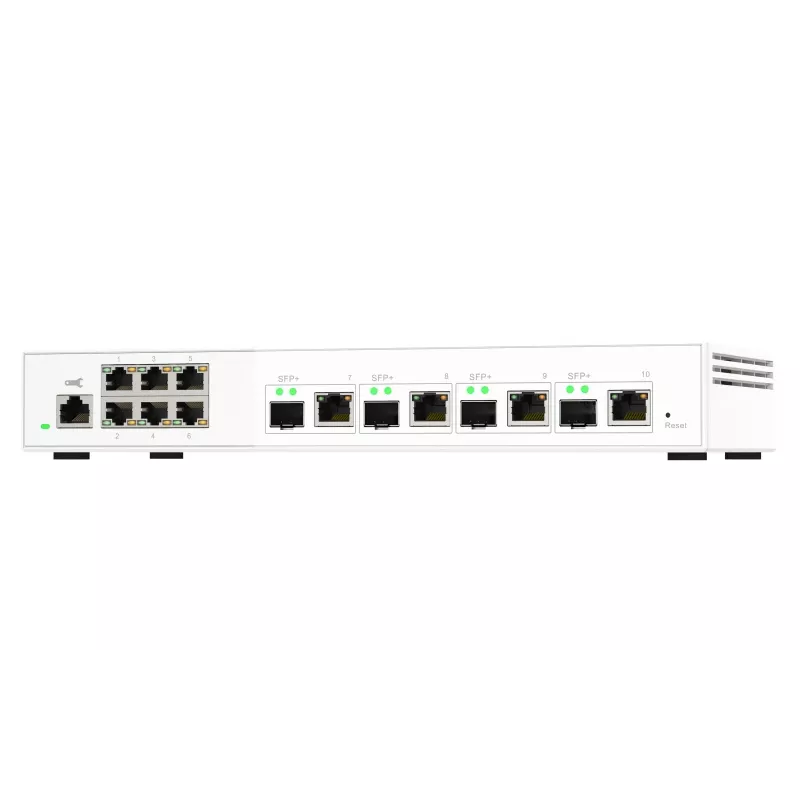

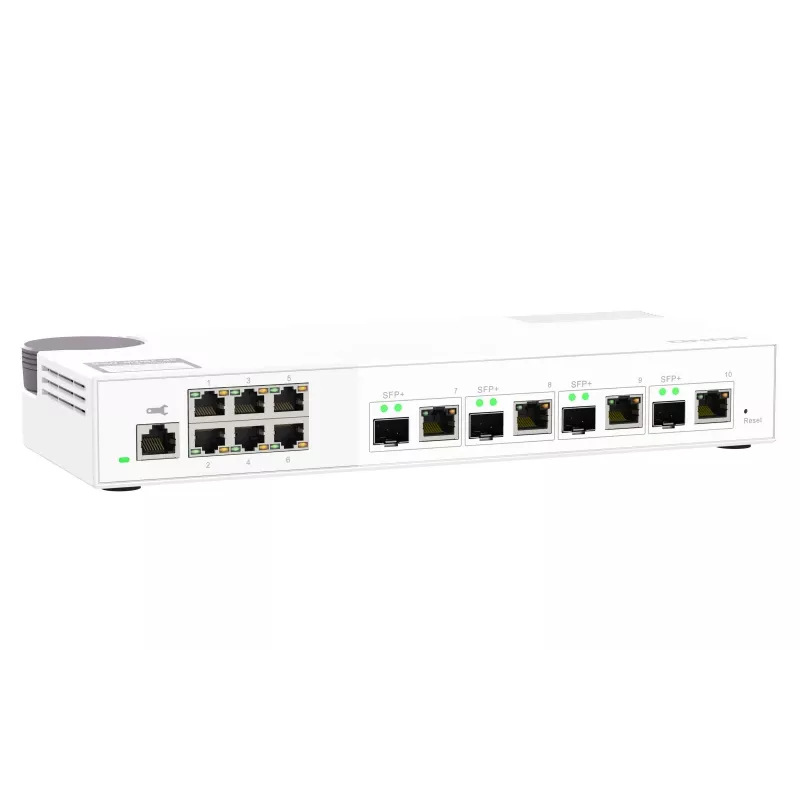

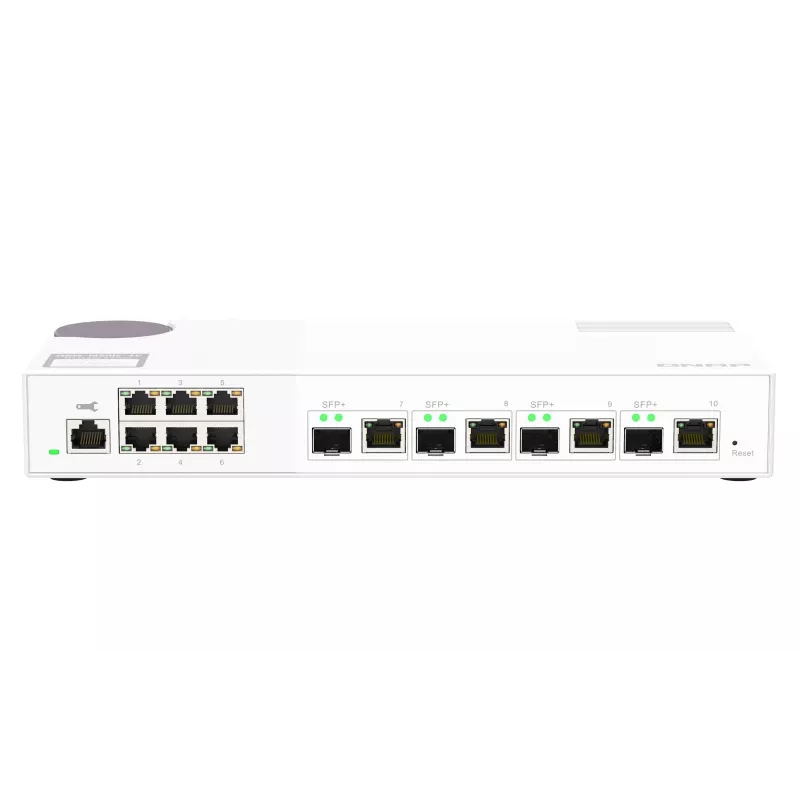

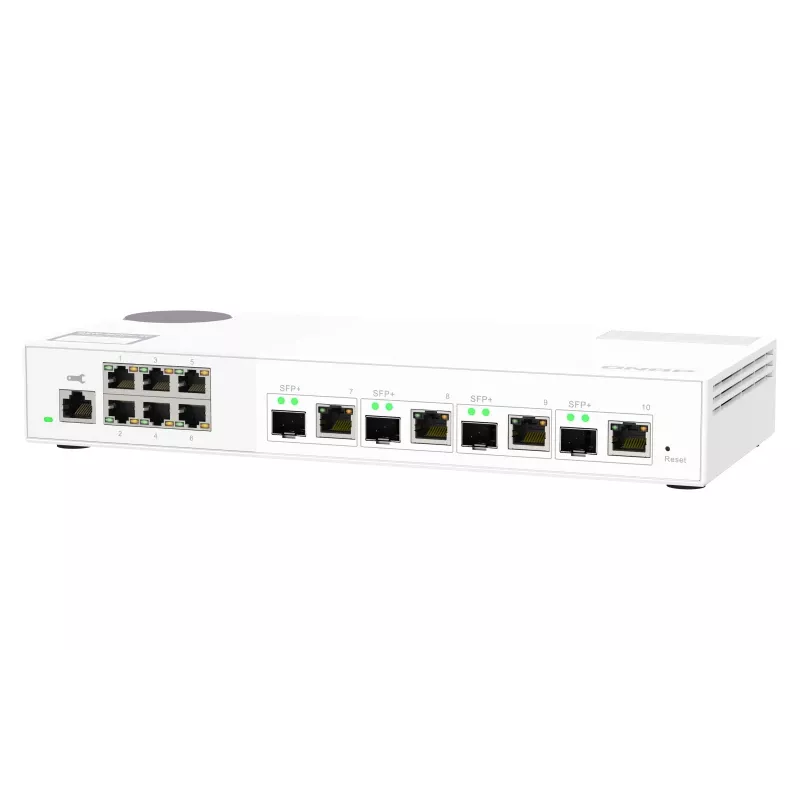

QNAP QSW-M2106-4C netwerkswitch managed L2 2,5G Ethernet (100/1000/2500) wit

10GbE and 2.5GbE Layer 2 Web Managed Switch for SMB Network Deployment
The QSW-M2106-4C is a Layer 2 Web Managed Switch with four 10GbE SFP+/RJ45 combo ports and six 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and a desktop form factor, the QSW-M2106-4C enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2106-4C provides four 10GbE SFP+/RJ45 combo ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling. The QSW-M2106-4C is backward compatible with other Ethernet devices.

Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE/10GbE
QNAP 2.5GbE/10GbE switches support 2.5G/10G and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

A fast NAS
A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add a 5GbE/10GbE port to laptops
Laptops and upgrade-limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter, allowing you to connect to 5G/2.5G/1G/100M networks.

QSS: Human-centered settings guide
The QSW-M2106-4C adopts QNAP Switch System (QSS) featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.

Overview Dashboard
View real-time system information, port connection status and port traffic.

Port Management
View port status, port packet statistics, and configure port speeds.

Setting Guide
Quickly learn how to set up the network using the introduction and step-by-step guide.

Exclusive Status Chart Referencing
Refer to four major status charts during each configuration to avoid going back and forth between different settings pages.

Online Firmware Check and Update
Keep your QNAP switch secure with one-click firmware updates.

Optimize Network Performance with bandwidth and packet control
The QSW-M2106-4C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.

VLAN
Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.

QoS
QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.

IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions
The QSW-M2106-4C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL
Access Control List filters packets based on rules to offer firewall-like security protection.

LLDP
Link Layer Discovery Protocol allows devices to advertise device information to their directly connected peers/neighbors, simplifying troubleshooting processes.

RSTP
Rapid Spanning Tree Protocol, RSTP ensures a loop-free topology for Ethernet networks by blocking or forwarding traffic.

Flow Control
Flow Control balances the traffic between a sender and a receiver to avoid network congestion.

Desktop form factor for easy use in offices
With a compact and modern design, the QSW-M2106-4C stands out with its textured surface design. The flexible DC power connector enables universal deployment of the QSW-M2106-4C and each port can be easily identified. Being fully plug-and-play, devices can be simply connected to the QSW-M2106-4C and immediately used.

QNAP QSW-M2106-4C. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 6, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 110 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... DC input voltage: 12 V

How to use

Place the QSW-M2106-4C on a stable desktop surface and connect the included DC power adapter. Use SFP+ modules or DAC cables for fiber or short-range 10GbE connections, or connect 10GBASE-T devices via RJ45 using Cat6 or better cabling. Access the QSS web GUI from a connected PC to view the overview dashboard, check port status, configure port speeds and apply Layer 2 settings such as LACP, VLAN and QoS. Apply access controls (ACL) and enable RSTP or Flow Control as needed to improve reliability and prevent loops or congestion. Use the online firmware update function to keep the switch software current.

Recommendations

For best performance, use Cat6 or higher-quality cabling for RJ45 10G connections, deploy appropriate SFP+ transceivers or DAC cables for fiber or short-range links, and group ports with LACP or Port Trunking when higher aggregated bandwidth is required. Regularly check and update firmware and configure VLANs and QoS to optimize traffic for bandwidth-sensitive applications such as NAS access and multimedia streaming.
