EFB Electronics I-V(ZN)HH 4E 9/125 OS2 breakoutkabel 2,8 mm geel

The EFB Electronics I-V(ZN)HH 4E 9/125 OS2 breakout cable is a high-quality indoor fiber optic cable designed for reliable single-mode transmission. With a compact 2.8 mm sub-unit diameter and yellow LSZH jacket, it is ideal for structured cabling and data center applications where space and safety are critical.

Advantages

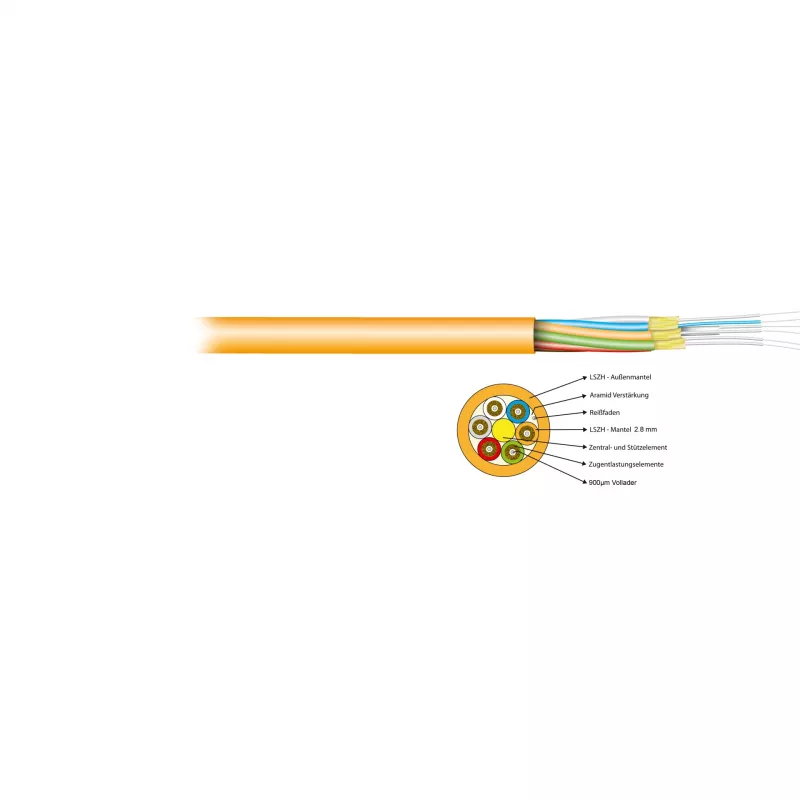

This breakout cable offers easy termination and installation thanks to its individual 2.8 mm sub-units, each reinforced with aramid yarn. The LSZH jacket ensures low smoke and zero halogen emissions, making it safe for use in confined spaces. With OS2 single-mode fibers, it supports high-bandwidth, long-distance transmission with low attenuation.

Suitable for

• Indoor fiber optic installations in data centers, telecom rooms, and LAN backbones
• Applications requiring flame retardant and halogen-free cabling
• Single-mode networks up to 10 Gbps and beyond

Key specifications

• Cable Type: Breakout Fiber Optic Cable
• Fiber Type: Single-mode OS2
• Number of Fibers: 4
• Core/Cladding Diameter: 9/125 µm
• Outer Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Sub-unit Diameter: 2.8 mm
• Attenuation at 1310nm: ≤ 0.4 dB/km
• Attenuation at 1550nm: ≤ 0.3 dB/km
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius (Installation): 20 x Outer Diameter
• Minimum Bend Radius (Operation): 10 x Outer Diameter
• Flame Retardancy: IEC 60332-1-2, IEC 60332-3-24 (Cat. C)
• Halogen-Free: IEC 60754-1/2
• Smoke Density: IEC 61034-1/2

Recommendations

For optimal performance, use with LC, SC, FC, or ST connectors (not included). Ensure proper cable management to maintain bend radius limits.
