EFB-Elektronik duplex patchkabel LC-ST OM2 1m LSZH 2mm oranje

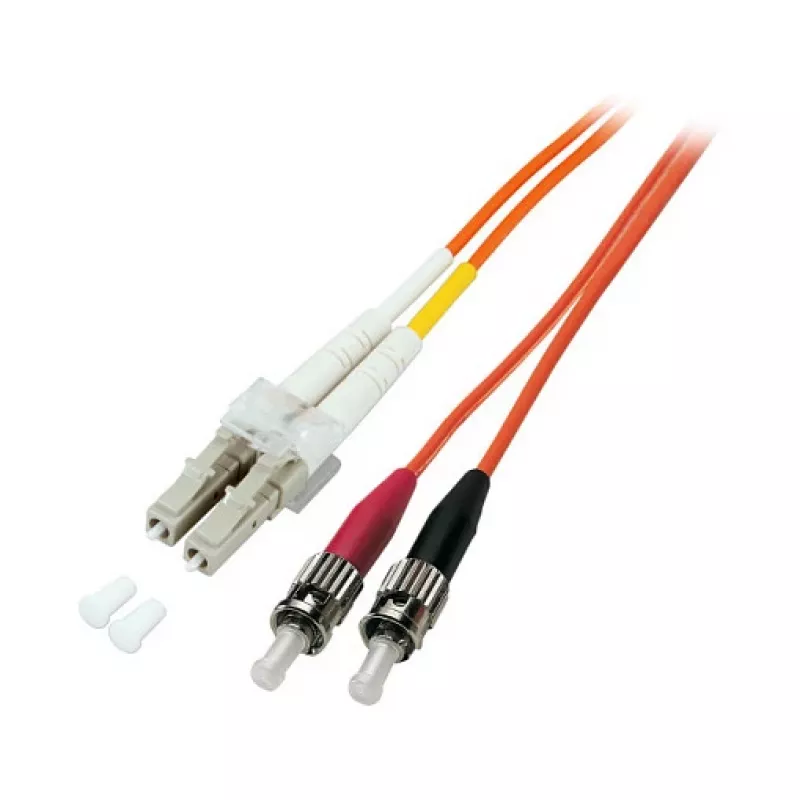

The EFB-Elektronik Duplex Jumper LC-ST 50/125µm, OM2, LSZH, orange, 2.0mm 1m is a high-quality fiber optic patch cable designed for reliable data transmission in indoor networking environments. This duplex cable features LC to ST connectors, multimode OM2 fiber, and a low smoke zero halogen (LSZH) jacket, ensuring safety and performance.

Advantages

This cable offers excellent signal integrity for short to medium distance connections, with low insertion loss and high return loss. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for use in confined spaces or areas with strict safety regulations. The orange color provides easy identification among other cables.

Suitable for

• Data center patching
• Telecommunications rooms
• Local area networks (LANs)
• Fiber-to-the-desk applications
• Any indoor fiber optic connection requiring LC to ST interfaces

Key specifications

• Connector Type A: LC (Lucent Connector)
• Connector Type B: ST (Straight Tip Connector)
• Fiber Mode: Multimode
• Fiber Core/Cladding Diameter: 50/125 µm
• Fiber Grade: OM2
• Cable Length: 1 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Construction: Duplex Zipcord
• Cable Diameter (per strand): 2.0 mm
• Polarity: A-B (Crossed)
• Ferrule Material: Zirconia Ceramic
• Standards Compliance: IEC 60793-2-10 Type A1a.1
• Application Environment: Indoor
• Wavelength Support: 850nm, 1300nm

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC and ST ports. Suitable for use with 10 Gigabit Ethernet and other high-speed protocols over multimode fiber.
