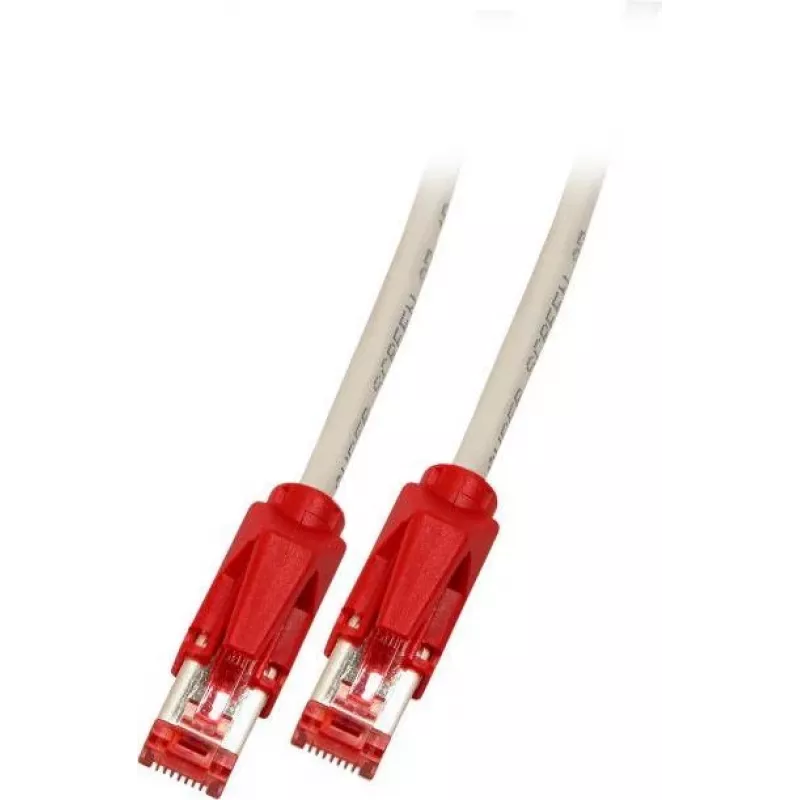

EFB-Elektronik RJ45-patchkabel Cat.6 S/FTP LSZH Draka UC900 crossover grijs 2 m

The EFB-Elektronik RJ45 Patch Cable Cat.6 S/FTP LSZH Draka UC900 Crossover Grey 2m is a high-performance crossover cable designed for direct device-to-device network connections. It features S/FTP shielding for excellent protection against electromagnetic interference and a low smoke zero halogen (LSZH) jacket for enhanced fire safety. The cable is built with high-quality Draka UC900 internal cable and gold-plated contacts, ensuring reliable data transmission up to 10 Gigabit Ethernet.

Advantages

This crossover cable eliminates the need for auto-MDI/MDIX switches, making it ideal for connecting two PCs or switches directly. The S/FTP shielding provides superior noise immunity, while the LSZH jacket reduces toxic fumes in case of fire. The stranded copper conductors offer flexibility and durability for frequent use.

Suitable for

• Direct PC-to-PC network connections
• Switch-to-switch connections without auto-MDI/MDIX
• Network setups requiring crossover wiring (T568A to T568B)
• Installations in environments with strict fire safety requirements

Key specifications

• Cable Type: Patch Cable (Crossover)
• Category: Cat.6
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 2 m
• Colour: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: Crossover (T568A to T568B)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 250 MHz
• Conductor Material: Copper (Stranded, AWG 27/7)
• Connector Plating: Gold-plated contacts
• Internal Cable Brand: Draka UC900
• Fire Safety: Flame Retardant, Halogen-free
• Compliance: RoHS, REACH
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use this cable in environments where electromagnetic interference is a concern. The LSZH jacket makes it suitable for public buildings, schools, and hospitals. Ensure your devices support crossover wiring or disable auto-MDI/MDIX if necessary.
