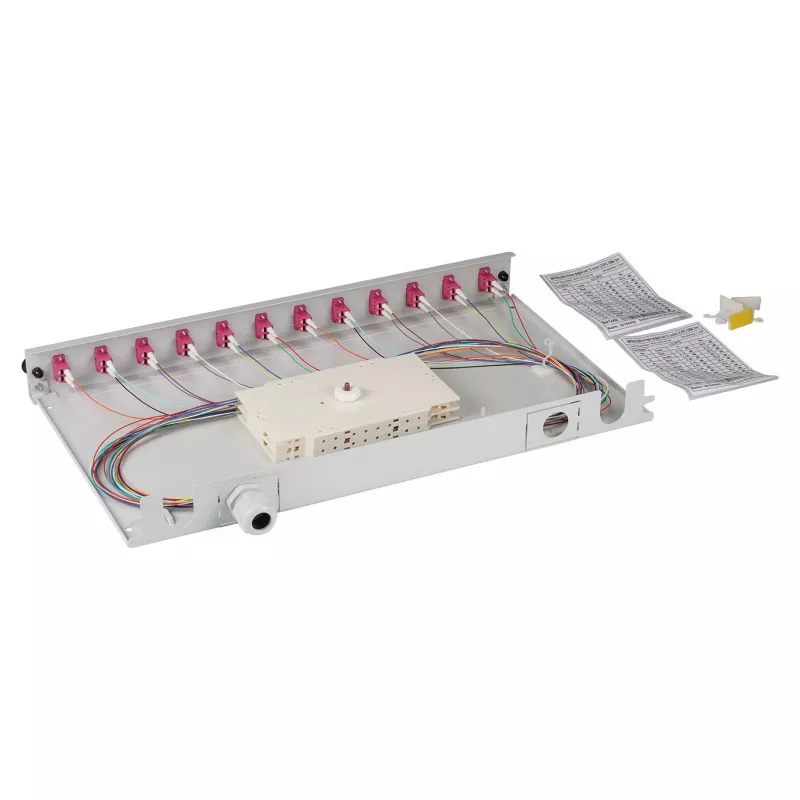

EFB-Elektronik Splice Box LC 50/125µm OM4 Pull-Out, 48 Pigtails Pre-Terminated / 24 Couplings

The EFB-Elektronik Splice Box LC 50/125µm OM4 is a high-quality, pre-terminated fiber optic splice box designed for professional data center, LAN, and SAN applications. This 1U 19-inch rack-mountable unit features a sliding/pull-out housing for easy access and maintenance. It comes with 48 pre-terminated LC pigtails (50/125µm OM4 multimode) and 24 LC duplex adapters, providing a total fiber capacity of 48 fibers. The integrated splice tray ensures organized splicing, while the powder-coated steel housing offers durability and protection. Ideal for high-density fiber management in telecommunications and enterprise networks.

Advantages

Pre-terminated with 48 LC pigtails and 24 LC duplex adapters saves installation time and reduces splicing errors. The pull-out design allows convenient access to fibers and splices without disturbing adjacent cables. OM4 multimode fiber supports high-bandwidth applications up to 100 Gbps over short distances. Compact 1U form factor maximizes rack space utilization.

Suitable for

• Data centers requiring high-density fiber patching
• Local Area Networks (LAN) with OM4 multimode infrastructure
• Storage Area Networks (SAN) for high-speed connectivity
• Telecommunications central offices and server rooms

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Fiber Optic Mode: Multimode
• Fiber Optic Class: OM4
• Fiber Core/Cladding Diameter: 50/125 µm
• Internal Connector Type: LC (Pigtails)
• External Connector Type: LC Duplex (Adapters)
• Number of Pigtails: 48
• Number of Adapters: 24
• Adapter Configuration: LC Duplex
• Total Fiber Capacity: 48 Fibers
• Housing Design: Sliding / Pull-out
• Mounting Type: 19-inch Rack Mount
• Rack Units (RU): 1U
• Pre-terminated: Yes
• Splice Tray: Integrated
• Material: Powder-coated Steel
• Cable Entry: Rear

Recommendations

For optimal performance, use with OM4 patch cables and LC connectors. Ensure proper cable management and strain relief. This splice box is compatible with standard 19-inch racks and is ideal for high-density fiber installations.
