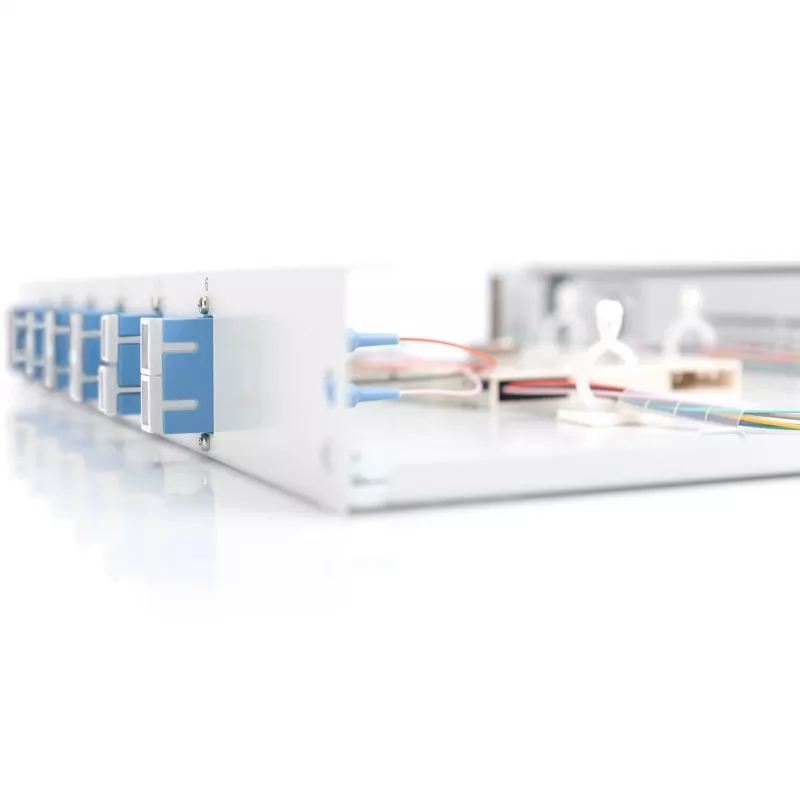

Glasvezel-lasbox Digitus DN-96320/9 SC OS2 51,5 cm grijs

FO splice boxes are installed permanently in the network cabinet to bundle the fiber optic cables that converge there, serving a similar role to a patch panel. The Digitus Fiber Optic Splice Box DN-96320/9 is designed for SC connectors and OS2 fiber type; it is made from 1 mm sheet steel with a grey (RAL 7035) finish and is delivered preconfigured with an assembled splice cassette, colour-coded pigtails and front-panel couplers. The unit is rack-mountable (1U) and has compact external dimensions (483 mm × 44.5 mm × 280 mm) for organised fiber management and protection of splices.

Advantages

The splice box provides a secure, permanently mounted enclosure for splicing and routing optical fibers, reducing strain and protecting connections. Preinstalled splice cassette and couplers simplify installation and reduce on-site assembly time. Colour-coded pigtails comply with DIN IEC 60304 for clear identification, and the steel housing ensures mechanical stability and long-term durability in typical network cabinet environments.

Suitable for

• Rack-mounted fiber management in server rooms and telecommunications cabinets
• Connecting OS2 single-mode fiber to switches, media converters, routers, modems, servers and SFP modules
• FTTH / FTTB installations where secure termination and splice protection are required

Key specifications

• Model: Digitus DN-96320/9
• Connector type: 6 × SC duplex (SC DX)
• Fiber type: OS2 (single-mode)
• Included components: splice cassette, colour-coded pigtails, front-panel couplers
• Rack size: 1U (483 mm width)
• Housing material: 1 mm sheet steel, grey (RAL 7035)
• External dimensions (W × H × D): 483 mm × 44.5 mm × 280 mm
• Brand: DIGITUS
• MPN: DN-96320/9
• EAN: 4016032278337

How to use

Mount the splice box in a standard 19-inch rack at a suitable height and secure it with rack screws. Route incoming fiber cables into the cabinet and through the box entry points, then prepare and splice fibers according to the splice cassette instructions. Insert the colour-coded pigtails into the splice cassette and connect the pigtail connectors to the front-panel SC couplers. Use patch cables to connect the front-panel SC ports to switches, media converters, routers, modems or SFP modules as required.

Recommendations

Handle fibers with appropriate ESD precautions and use recommended fiber tools. Maintain minimum bend radii for OS2 single-mode fiber, avoid excessive tension on pigtails, and secure cable entries to prevent movement. Perform tests (insertion loss/return loss) after splicing to verify correct installation.
